    General Purpose Handheld

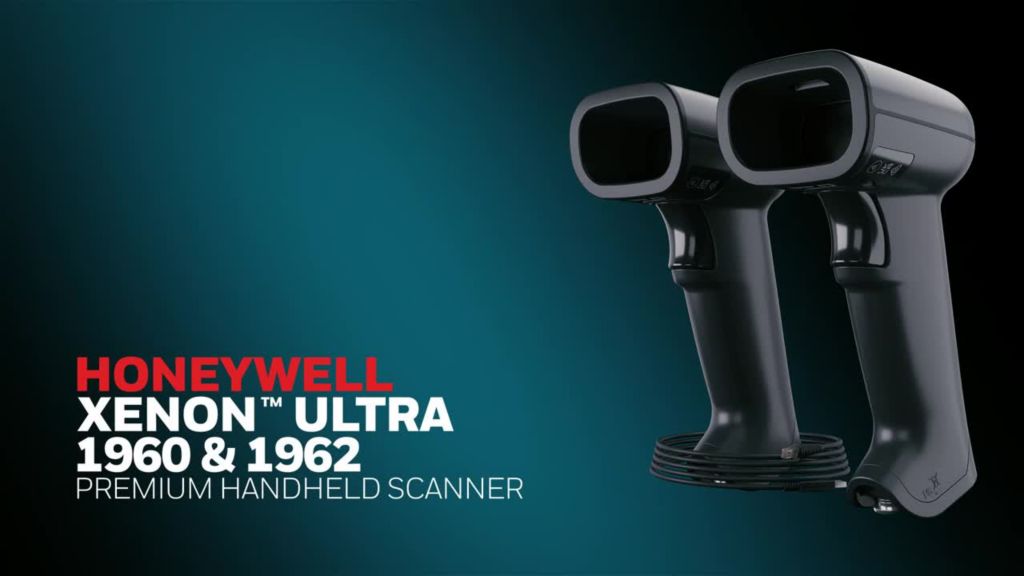

    Xenon Ultra 1962 Scanner

    The Xenon Ultra family of handheld scanners is a premium evolution of the widely known legacy Xenon and Xenon XP general purpose scanners, taking our industry-leading scan performance and reliability one step further.

    Overview
    Reliable Scanning
    • The Xenon Ultra scanners are designed with green-dot LED aimers, helping users ensure accurate scans with each use.
    • Warm-white illumination and print contrast down to 15% enables users to capture ultra high-density barcodes, even down to 2 mils.
    • The green-dot LED aimer and white illumination aids in easier targeting and enhances scan accuracy on high-density and low-quality codes in high-throughput environments.
    • With added IR capabilities, reduce annoying false activations, enabling illumination only when needed. IR even helps to reduce the gap between point-and-shoot and hands-free modes of operations.
    Technology Forward
    • Xenon Ultra scanners are the first of its kind built on the Ultra platform. Taking the trusted performance of the Extreme Performance (XP) platform one step further.
    • With optimized illumination and processor, Xenon Ultra scanners achieve snappier scanning and improved data capture.
    • Offered in both corded and cordless Bluetooth configurations, with premium upgrades such as interchangeable power sources, contactless charging and magnetic retention, Xenon Ultra scanners can easily fit into the workflow you need.
    Ultra Performance
    • The Xenon Ultra scanner offers superior scanning performance even on damaged or poor-quality barcodes and is engineered to perform with a high degree of accuracy minimizing the need to rescan trouble barcodes and help support top-line revenues.
    • A modernized design offers an improved aesthetic enhancing user experience and meets durability needs that businesses depend upon.
    • The Honeywell Scanner Management Utility (SMU) creates a holistic solution helping to automate scanner deployment and updates in any environment.
    Specifications

    Features

    • Features
      • In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
      • Object Detection (IR): Avoid false scanner wake ups to lower/prevent patient annoyance or disturbances
      • Optimized Illumination
      • Redesigned housing enables full product gasketing reducing the chance of water and dust ingress. Improved optional magnetic retention enables scanner to stay securely connected to the CCB if deployed in kinetic conditions
      • The Xenon Ultra 1962 battery and battery-free is availble in a premium contactless version, reducing the number of failed devices due to corrosion.
      • The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.

    Dimensions

    • Overall Dimensions
      • Desktop/Wall Mount Base: 211.3mm x 74.2mm x 77.7mm
      • Presentation Base: 82.9mm x 90.4mm x 121.6mm
      • Scanner: 108.2mm x 70.4mm x 160.2mm

    Scanning Specifications

    • Scan Pattern
      • Area Imager
    • Number of Scans
      • Battery-Free Super Capacitor: 450
      • Standard Battery: 80,000
    • Decode Capability
      • 1D/2D
    • Scanning Range
      • Standard Range (SR) and High Density (HD) Capabilites. Refer to datasheet or Users' Manual for further details
    • Motion Tolerance
      • For 13 mil UPC at optimal focus 4 meters/second
    • Brightness
      • 0 - 100,000 Lux

    Network

    • Bluetooth
      • Yes
    • Bluetooth Specifications
      • Radio/Range: 2.4GHz Bluetooth radio v4.2 with Adaptive Frequency Hopping.

    Hardware

    • Engine Type
      • Refer to the datasheet or users' manual for full depth of field specifications
    • Aimer Type
      • Green Dot LED
    • Wireless
      • Yes
    • Host System Interface
      • Keyboard Wedge
      • RS-232
      • Supports USB BC1.2 charge ports
      • USB

    Electrical

    • Battery Types
      • Battery-Free Super Capacitor
      • Lithium Ion

    Environmental

    • Storage Temperature Range
      • -40°C to 70°C (-40°F to 158°F)
    • Operating Humidity
      • 0 to 95% relative humidity, non-condensing

    Standards & Approvals

    • Drop Specifications
      • Engineered to withstand 50 1.8 m drops to concrete across operating temp range
    • Protection Ratings
      • Environmental Sealing (CCB): IP41
      • Environmental Sealing (Scanner): IP52
    • Tumble Specifications
      • Mil Spec Drop: 8'
      • Tumble: 2,000 at 0.5m (1.6ft)

    Others

    • Application
      • Assembly Line
      • Component Tracking
      • Electronic Manufacturing and Retail
      • High and low throughput POS
      • In-store inventory
      • Self-Checkout
    • Form Factor
      • Gun Shape
    • Input voltage
      • 4.4V DC – 5.5V DC
    • Battery capacity
      • 3300 mAh Li-Ion
    • Operating Power
      • Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC) Standard USB 10W (2A @ 5V DC) – when utilizing power adapter
    • Operating temperature
      • Charging: 5°C to 35°C (41°F to 95°F)
      • Non-Charging: 0°C to 50°C (32°F to 122°F)
      • Scanner: 0°C to 50°C (32°F to 122°F)
    • Warranty Duration
      • Lithium-ion Battery Pack: One year
      • Scanner: Three-year factory warranty
      • Supercapacitor: Five-year factory warranty

    Features

    • Features
      • In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
      • Object Detection (IR): Avoid false scanner wake ups to lower/prevent patient annoyance or disturbances
      • Optimized Illumination
      • Redesigned housing enables full product gasketing reducing the chance of water and dust ingress. Improved optional magnetic retention enables scanner to stay securely connected to the CCB if deployed in kinetic conditions
      • The Xenon Ultra 1962 battery and battery-free is availble in a premium contactless version, reducing the number of failed devices due to corrosion.
      • The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.

    Dimensions

    • Overall Dimensions
      • Desktop/Wall Mount Base: 211.3mm x 74.2mm x 77.7mm
      • Presentation Base: 82.9mm x 90.4mm x 121.6mm
      • Scanner: 108.2mm x 70.4mm x 160.2mm

    Scanning Specifications

    • Scan Pattern
      • Area Imager
    • Number of Scans
      • Battery-Free Super Capacitor: 450
      • Standard Battery: 80,000
    • Decode Capability
      • 1D/2D
    • Scanning Range
      • Standard Range (SR) and High Density (HD) Capabilites. Refer to datasheet or Users' Manual for further details
    • Motion Tolerance
      • For 13 mil UPC at optimal focus 4 meters/second
    • Brightness
      • 0 - 100,000 Lux

    Network

    • Bluetooth
      • Yes
    • Bluetooth Specifications
      • Radio/Range: 2.4GHz Bluetooth radio v4.2 with Adaptive Frequency Hopping.

    Hardware

    • Engine Type
      • Refer to the datasheet or users' manual for full depth of field specifications
    • Aimer Type
      • Green Dot LED
    • Wireless
      • Yes
    • Host System Interface
      • Keyboard Wedge
      • RS-232
      • Supports USB BC1.2 charge ports
      • USB

    Electrical

    • Battery Types
      • Battery-Free Super Capacitor
      • Lithium Ion

    Environmental

    • Storage Temperature Range
      • -40°C to 70°C (-40°F to 158°F)
    • Operating Humidity
      • 0 to 95% relative humidity, non-condensing

    Standards & Approvals

    • Drop Specifications
      • Engineered to withstand 50 1.8 m drops to concrete across operating temp range
    • Protection Ratings
      • Environmental Sealing (CCB): IP41
      • Environmental Sealing (Scanner): IP52
    • Tumble Specifications
      • Mil Spec Drop: 8'
      • Tumble: 2,000 at 0.5m (1.6ft)

    Others

    • Application
      • Assembly Line
      • Component Tracking
      • Electronic Manufacturing and Retail
      • High and low throughput POS
      • In-store inventory
      • Self-Checkout
    • Form Factor
      • Gun Shape
    • Input voltage
      • 4.4V DC – 5.5V DC
    • Battery capacity
      • 3300 mAh Li-Ion
    • Operating Power
      • Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC) Standard USB 10W (2A @ 5V DC) – when utilizing power adapter
    • Operating temperature
      • Charging: 5°C to 35°C (41°F to 95°F)
      • Non-Charging: 0°C to 50°C (32°F to 122°F)
      • Scanner: 0°C to 50°C (32°F to 122°F)
    • Warranty Duration
      • Lithium-ion Battery Pack: One year
      • Scanner: Three-year factory warranty
      • Supercapacitor: Five-year factory warranty
    • Application : Assembly Line|Component Tracking|Electronic Manufacturing and Retail|High and low throughput POS|In-store inventory|Self-Checkout
    • Form Factor : Gun Shape
    • Features : In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.|Object Detection (IR): Avoid false scanner wake ups to lower/prevent patient annoyance or disturbances|Optimized Illumination|Redesigned housing enables full product gasketing reducing the chance of water and dust ingress. Improved optional magnetic retention enables scanner to stay securely connected to the CCB if deployed in kinetic conditions|The Xenon Ultra 1962 battery and battery-free is availble in a premium contactless version, reducing the number of failed devices due to corrosion.|The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.
    • Overall Dimensions : Desktop/Wall Mount Base: 211.3mm x 74.2mm x 77.7mm|Presentation Base: 82.9mm x 90.4mm x 121.6mm|Scanner: 108.2mm x 70.4mm x 160.2mm
    • Scan Pattern : Area Imager
    • Number of Scans : Battery-Free Super Capacitor: 450|Standard Battery: 80,000
    • Decode Capability : 1D/2D
    • Scanning Range : Standard Range (SR) and High Density (HD) Capabilites. Refer to datasheet or Users' Manual for further details
    • Motion Tolerance : For 13 mil UPC at optimal focus 4 meters/second
    • Brightness : 0 - 100,000 Lux
    • Bluetooth : Yes
    • Bluetooth Specifications : Radio/Range: 2.4GHz Bluetooth radio v4.2 with Adaptive Frequency Hopping.
    • Engine Type : Refer to the datasheet or users' manual for full depth of field specifications
    • Aimer Type : Green Dot LED
    • Wireless : Yes
    • Host System Interface : Keyboard Wedge|RS-232|Supports USB BC1.2 charge ports|USB
    • Input voltage : 4.4V DC – 5.5V DC
    • Battery capacity : 3300 mAh Li-Ion
    • Battery Types : Battery-Free Super Capacitor|Lithium Ion
    • Operating Power : Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC) Standard USB 10W (2A @ 5V DC) – when utilizing power adapter
    • Storage Temperature Range : -40°C to 70°C (-40°F to 158°F)
    • Operating temperature : Charging: 5°C to 35°C (41°F to 95°F)|Non-Charging: 0°C to 50°C (32°F to 122°F)|Scanner: 0°C to 50°C (32°F to 122°F)
    • Operating Humidity : 0 to 95% relative humidity, non-condensing
    • Drop Specifications : Engineered to withstand 50 1.8 m drops to concrete across operating temp range
    • Protection Ratings : Environmental Sealing (CCB): IP41|Environmental Sealing (Scanner): IP52
    • Tumble Specifications : Mil Spec Drop: 8'|Tumble: 2,000 at 0.5m (1.6ft)
    • Warranty Duration : Lithium-ion Battery Pack: One year|Scanner: Three-year factory warranty|Supercapacitor: Five-year factory warranty
