    General Purpose Handheld

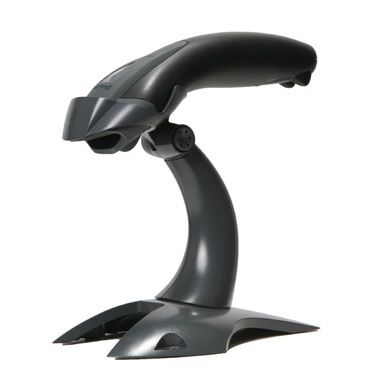

    Voyager 1400g General Duty Scanner

    Voyager 1400g General Duty Scanner

    Overview

    The Voyager™: 1400g upgradeable scanner lets you ramp up to area-imaging at your own pace –: and in the most cost-effective way. Buy the 1D version today and reserve the option to affordably upgrade the device to enable PDF and 2D barcode scanning at any point in the future, as your data capture needs evolve.

    • Remote MasterMindTM Ready: Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices.
    • Flexible Licensing Solution: Meets diverse scanning requirements by offering models with basic functionality –: purchase software licenses to enable additional functionality as the need arises.
    • Future-Proof: Delivers affordable scanning of 2D barcodes, allowing enterprises to meet their current and future barcode scanning needs with a single device.
    • Reliable Data Collection: Offers omnidirectional reading of virtually all linear barcodes and the most widely used 2D barcodes, including poor-quality and mobile barcodes (2D decoding available in select models).

    Across many industries, 2D barcoding is becoming the new standard. Not only is it possible to hold much more data in a 2D code, but government regulations and supplier mandates are requiring their adoption.Enterprises are also looking to leverage emerging trends that require area-imaging technology –: today or in the near future –: without the need to purchase additional scanning hardware, or settle for reduced scanning performance.The Voyager 1400g wired scanner allows enterprises to embrace area imaging at their own pace, and in the most cost-effective way.The Voyager 1400g scanner delivers omnidirectional reading of linear barcodes, plus the ability to affordably upgrade the devices to enable PDF and 2D barcode scanning –: either at the time of purchase, or as your data capture needs evolve.And for those who only need the ability to read linear and 2D barcodes, the Voyager 1400g is an ideal solution.By excluding additional area-imaging features such as advanced image capture and processing applications, Honeywell can keep costs down while still offering aggressive linear and 2D scanning at an attractive price.The Voyager 1400g scanner is an excellent value for enterprises that require the versatility of area-imaging technology today or may need it in the future.

    Specifications

    Features

    • Features
      • Mobile Phone Reading
      • Upgradeable Decode Capability

    Dimensions

    • Overall Dimensions
      • 18 x 6.6 x 4.3 cm
      • 7.1 x 2.6 x 1.7 in

    Scanning Specifications

    • Motion Tolerance
      • Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
    • Brightness
      • 0 - 100000 lux
    • Skew
      • 70
    • Scan Pattern
      • Area Image
    • Print Contrast
      • 35
    • Pitch
      • 60
    • Depth of Field
      • 1 - 14 in
    • Decode Capability
      • 1D/2D
    • Scanning Range
      • Standard range (SR)

    Network

    • Bluetooth
      • No
    • Bluetooth Specifications
      • N/A

    Hardware

    • Aimer Type
      • LED
    • Host System Interface
      • KBW
      • RS-232
      • RS-485
      • USB
    • Engine Type
      • 1D Upgradable
      • 2D
      • PDF
    • Wireless
      • No

    Electrical

    • Standby Power
      • 0.45

    Environmental

    • Storage Temperature Range
      • - 40 - 140 °F
      • - 40 - 60 °C
    • Operating Humidity
      • 0 - 95 %

    Standards & Approvals

    • Protection Ratings
      • IP42
    • Drop Specifications
      • 30 1.5 m (5 ft) drops to concrete

    Others

    • Form Factor
      • Curved
    • Input voltage
      • 4 - 5.5 V DC
    • Operating Power
      • 2 W
    • Operating temperature
      • 0 - 40 °C
      • 32 - 104 °F
    • Warranty Duration
      • 5 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Corded

    Features

    • Features
      • Mobile Phone Reading
      • Upgradeable Decode Capability

    Dimensions

    • Overall Dimensions
      • 18 x 6.6 x 4.3 cm
      • 7.1 x 2.6 x 1.7 in

    Scanning Specifications

    • Motion Tolerance
      • Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
    • Brightness
      • 0 - 100000 lux
    • Skew
      • 70
    • Scan Pattern
      • Area Image
    • Print Contrast
      • 35
    • Pitch
      • 60
    • Depth of Field
      • 1 - 14 in
    • Decode Capability
      • 1D/2D
    • Scanning Range
      • Standard range (SR)

    Network

    • Bluetooth
      • No
    • Bluetooth Specifications
      • N/A

    Hardware

    • Aimer Type
      • LED
    • Host System Interface
      • KBW
      • RS-232
      • RS-485
      • USB
    • Engine Type
      • 1D Upgradable
      • 2D
      • PDF
    • Wireless
      • No

    Electrical

    • Standby Power
      • 0.45

    Environmental

    • Storage Temperature Range
      • - 40 - 140 °F
      • - 40 - 60 °C
    • Operating Humidity
      • 0 - 95 %

    Standards & Approvals

    • Protection Ratings
      • IP42
    • Drop Specifications
      • 30 1.5 m (5 ft) drops to concrete

    Others

    • Form Factor
      • Curved
    • Input voltage
      • 4 - 5.5 V DC
    • Operating Power
      • 2 W
    • Operating temperature
      • 0 - 40 °C
      • 32 - 104 °F
    • Warranty Duration
      • 5 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Corded
    • Features : Mobile Phone Reading|Upgradeable Decode Capability
    • Form Factor : Curved
    • Overall Dimensions : 18 x 6.6 x 4.3 cm|7.1 x 2.6 x 1.7 in
    • Motion Tolerance : Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
    • Brightness : 0 - 100000 lux
    • Skew : 70
    • Scan Pattern : Area Image
    • Print Contrast : 35
    • Pitch : 60
    • Depth of Field : 1 - 14 in
    • Decode Capability : 1D/2D
    • Scanning Range : Standard range (SR)
    • Bluetooth : No
    • Bluetooth Specifications : N/A
    • Aimer Type : LED
    • Host System Interface : KBW|RS-232|RS-485|USB
    • Engine Type : 1D Upgradable|2D|PDF
    • Wireless : No
    • Input voltage : 4 - 5.5 V DC
    • Operating Power : 2 W
    • Standby Power : 0.45
    • Storage Temperature Range : - 40 - 140 °F|- 40 - 60 °C
    • Operating Humidity : 0 - 95 %
    • Operating temperature : 0 - 40 °C|32 - 104 °F
    • Protection Ratings : IP42
    • Drop Specifications : 30 1.5 m (5 ft) drops to concrete
    • Warranty Duration : 5 yr
    • Brand : Honeywell
    • Power Connector Type : Corded
