Voyager 1202g General Duty Scanner

Voyager 1202g General Duty Scanner

Overview

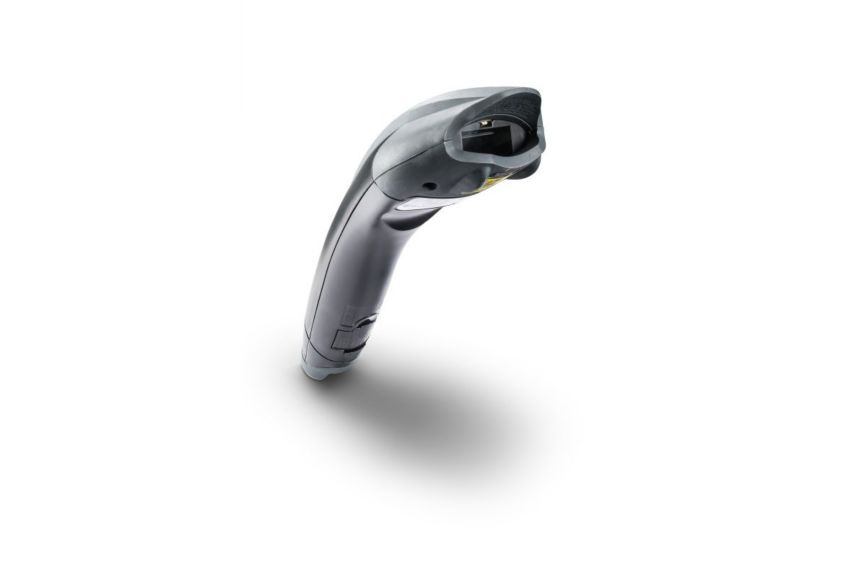

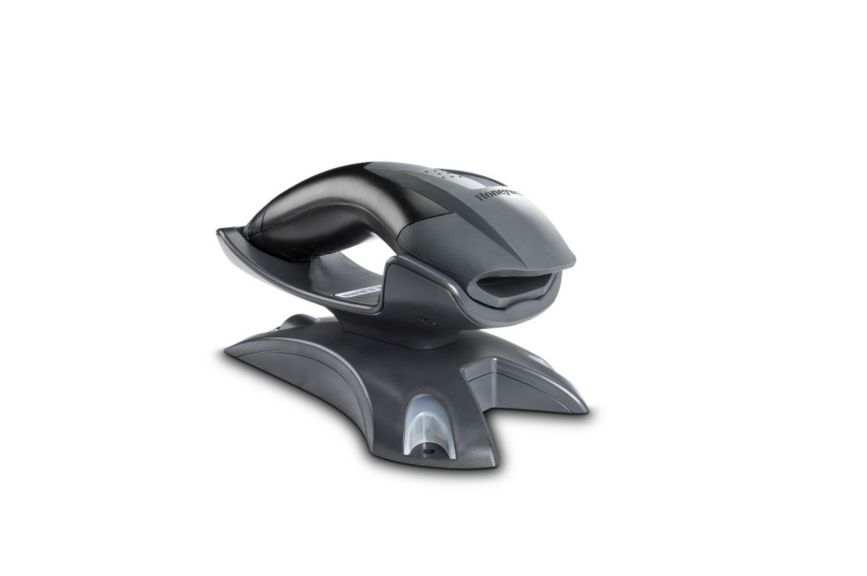

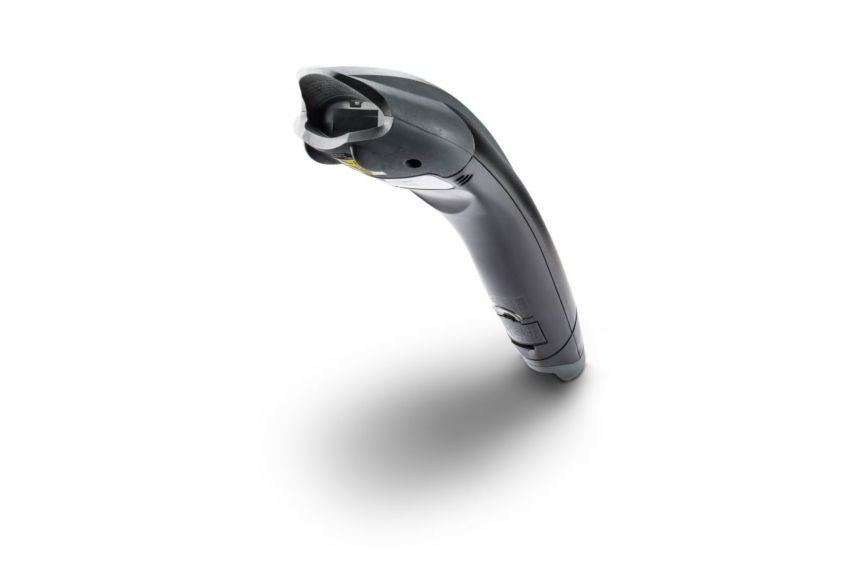

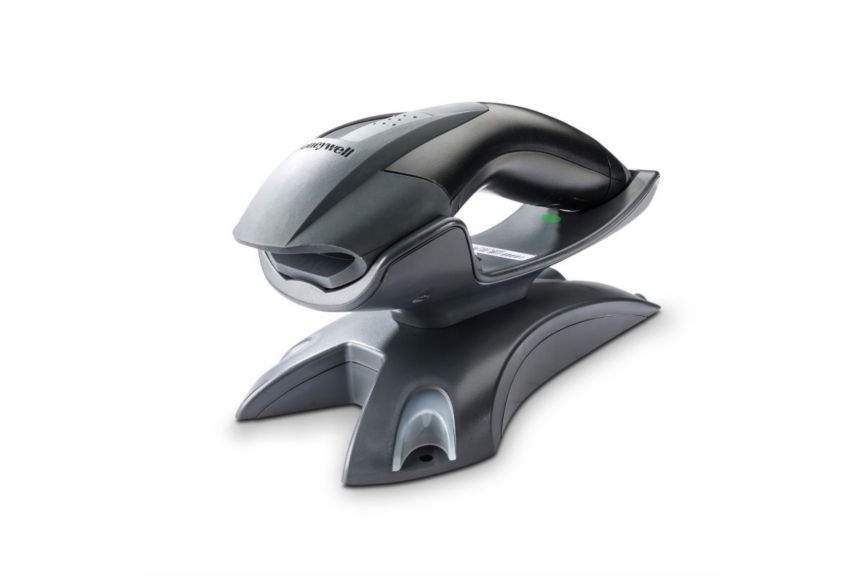

1202g gallery image

Voyager™: 1202g (wireless) laser barcode scanners are built on the world’:s best-selling single-line laser scanner platform. They aggressively scan virtually all linear barcodes. And they do an exceptional job of reading poor quality and even damaged barcodes.

  • Long Battery Life and Tool-Free Battery Removal: The user-preferred Lithium ion battery provides 12 hours or more of use, depending on scanning volume, and the field-replaceable battery can be exchanged quickly and easily, without the use of tools.
  • Remote MasterMind™: Ready: Reduces total cost of ownership by providing a turnkey remote device man-agement solution that easily manages and tracks usage of installed devices.
  • Paging Functionality: Simply press the button on the base to locate your lost scanner: Voyager 1202g responds with a series of beeps and blinking lights on its indicator panel.
  • Excellent Poor Quality Code Reading:Increases throughput and reduces the potential for hand-keyed errors by quickly scanning a variety of 1D bar codes, including those that are damaged or smudged.
  • Automatic Interface Configuration: Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with auto-matic interface detection and configuration.
  • Bluetooth®:WirelessTechnology: Facilitates scanning of all standard 1D bar codes 10 meters (33 feet) or more away from the base, depending on the user’:s environment.

The Voyager 1202g (wireless) barcode scanners give you able-bodied performance and flexibility for a wide variety of hands-free and handheld scanning applications. Regardless of the model you choose, these Voyager scanners deliver aggressive scan performance on virtually all linear barcodes.Decode poorly printed, smudged, faded and other difficult-to-read barcodes with ease. Scan high-density barcodes, too, with resolution down to 3.5 mil. In most cases, that eliminates the need to purchase specialty scanners. And take advantage of the Voyager scanner’:s class-leading, hands-free presentation scanning. It maximizes throughput with updated object detection and automatic in-stand detection and configuration.We designed these Voyager scanners to decrease your downtime and service costs too. Single shock-mounted PCB delivers greater impact resistance. Recessed button is protected by an integrated rubber co-mold that minimizes the impact of accidental drops. Designed with a protected, scratch-resistant glass window and an IP42-rating. The Voyager 1202g wireless model incorporates a Bluetooth®: Class 2 radio. You’:ll have unrestricted movement up to 10 m (33 ft) from the base, and up to 30 m (100 ft) with a clear line-of-sight between scanner and base.And if you ever misplace a scanner, the Voyager’:s paging system uses visual and auditory signals to help you find the missing device quickly.

Specifications

Features

  • Features
    • CodeGate™ Technology
    • Object Detection

Dimensions

  • Overall Dimensions
    • 18 x 6.6 x 9.2 cm
    • 7.1 x 2.6 x 3.6 in

Scanning Specifications

  • Skew
    • 70
  • Scanning Range
    • Standard range (SR)
  • Scan Pattern
    • Single Scan Line
  • Print Contrast
    • 10
  • Pitch
    • 60
  • Number of Scans
    • 45000
  • Depth of Field
    • 0 - 14.4 in
  • Decode Capability
    • 1D
  • Brightness
    • 0 - 70000 lux

Network

  • Bluetooth Specifications
    • v2.1
  • Bluetooth
    • Yes

Hardware

  • Aimer Type
    • LED
  • Wireless
    • Yes
  • Host System Interface
    • KBW
    • RS-232
    • RS-485
    • USB
  • Engine Type
    • 1D Laser

Electrical

  • Battery Types
    • Super Capacitor

Environmental

  • Storage Temperature Range
    • - 5 - 35 °C
    • 23 - 95 °F
  • Operating Humidity
    • 0 - 95 %

Standards & Approvals

  • Protection Ratings
    • IP41
  • Drop Specifications
    • 30 1.5 m (5ft) drops to concrete

Others

  • Form Factor
    • Curved
  • Operating Temperature
    • 41 - 104 °F
    • 5 - 40 °C
  • Warranty Duration
    • 3 yr
  • Brand
    • Honeywell
  • Scan Distance
    • Standard Range (0-1m)
  • Power Connector Type
    • Cordless
  • IP Rating
    • IP41
  • Connectivity
    • Corded

Features

  • Features
    • CodeGate™ Technology
    • Object Detection

Dimensions

  • Overall Dimensions
    • 18 x 6.6 x 9.2 cm
    • 7.1 x 2.6 x 3.6 in

Scanning Specifications

  • Skew
    • 70
  • Scanning Range
    • Standard range (SR)
  • Scan Pattern
    • Single Scan Line
  • Print Contrast
    • 10
  • Pitch
    • 60
  • Number of Scans
    • 45000
  • Depth of Field
    • 0 - 14.4 in
  • Decode Capability
    • 1D
  • Brightness
    • 0 - 70000 lux

Network

  • Bluetooth Specifications
    • v2.1
  • Bluetooth
    • Yes

Hardware

  • Aimer Type
    • LED
  • Wireless
    • Yes
  • Host System Interface
    • KBW
    • RS-232
    • RS-485
    • USB
  • Engine Type
    • 1D Laser

Electrical

  • Battery Types
    • Super Capacitor

Environmental

  • Storage Temperature Range
    • - 5 - 35 °C
    • 23 - 95 °F
  • Operating Humidity
    • 0 - 95 %

Standards & Approvals

  • Protection Ratings
    • IP41
  • Drop Specifications
    • 30 1.5 m (5ft) drops to concrete

Others

  • Form Factor
    • Curved
  • Operating Temperature
    • 41 - 104 °F
    • 5 - 40 °C
  • Warranty Duration
    • 3 yr
  • Brand
    • Honeywell
  • Scan Distance
    • Standard Range (0-1m)
  • Power Connector Type
    • Cordless
  • IP Rating
    • IP41
  • Connectivity
    • Corded
  • Form Factor : Curved
  • Features : CodeGate™ Technology|Object Detection
  • Overall Dimensions : 18 x 6.6 x 9.2 cm|7.1 x 2.6 x 3.6 in
  • Skew : 70
  • Scanning Range : Standard range (SR)
  • Scan Pattern : Single Scan Line
  • Print Contrast : 10
  • Pitch : 60
  • Number of Scans : 45000
  • Depth of Field : 0 - 14.4 in
  • Decode Capability : 1D
  • Brightness : 0 - 70000 lux
  • Bluetooth Specifications : v2.1
  • Bluetooth : Yes
  • Aimer Type : LED
  • Wireless : Yes
  • Host System Interface : KBW|RS-232|RS-485|USB
  • Engine Type : 1D Laser
  • Battery Types : Super Capacitor
  • Storage Temperature Range : - 5 - 35 °C|23 - 95 °F
  • Operating Temperature : 41 - 104 °F|5 - 40 °C
  • Operating Humidity : 0 - 95 %
  • Protection Ratings : IP41
  • Drop Specifications : 30 1.5 m (5ft) drops to concrete
  • Warranty Duration : 3 yr
  • Brand : Honeywell
  • Scan Distance : Standard Range (0-1m)
  • Power Connector Type : Cordless
  • IP Rating : IP41
  • Connectivity : Corded
Data Sheet
Name
Description
File Size
Date
Size
Voyager 1200g Laser Scanner Data Sheet
application/pdf 353.74 KB
7/14/2021
353.74 KB
Manuals and Guides
Name
Description
File Size
Date
Size
User Guide: Network and Security for Honeywell Scanners (NS-SC-EN-SG-01 Rev A)
application/pdf 1.17 MB
4/21/2025
1.17 MB
Quick Start Guide: Access Point (ACC-PT-QS Rev E)
application/pdf 654.1 KB
3/15/2024
654.1 KB
User Guide for Voyager 1200g, 1202g, 1202g-BF - English (VG1200-UG Rev H)
application/pdf 3.75 MB
1/26/2024
3.75 MB
Voyager 1200g Scanner Stand Installation Guide
application/pdf 361.09 KB
7/14/2021
361.09 KB
Voyager 1202 Battery End Cap and Battery Latch Installation Instructions
application/pdf 848.01 KB
7/14/2021
848.01 KB
Voyager 1200g Single-Line Laser Scanner Quick Start Guide
application/pdf 423.1 KB
7/14/2021
423.1 KB
Voyager 1202g Cordless Single-Line Bar Code Scanner Quick Start Guide
application/pdf 762.33 KB
7/14/2021
762.33 KB
Voyager 1200g Holder Installation
application/pdf 220.54 KB
7/14/2021
220.54 KB
Honeywell CCBOO-010BT Scanner Mount Wall Installation User Guide (CCB00-010BT-INST Rev B)
application/pdf 100.07 KB
7/14/2021
100.07 KB
Regulatory Information
Name
Description
File Size
Date
Size
Regulatory Sheet: Voyager 1200g (RegSht-1200-02 Rev A)
application/pdf 1.5 MB
2/13/2025
1.5 MB
Voyager 1202g-BF Regulatory Sheet (RegSht-1202BF-03 Rev A)
application/pdf 1.72 MB
2/13/2025
1.72 MB
Voyager 1202g Regulatory Sheet (RegSht-1202-05 Rev A)
application/pdf 2.12 MB
2/13/2025
2.12 MB
Regulatory Sheet: Multi-Bay Battery Charger MB4-BAT-SCN01 (RegSht-MBC_02_Rev_A)
application/pdf 719.34 KB
4/28/2025
719.34 KB
Regulatory Sheet: CCB00 (CCB00-MULT-RS-05 Rev A)
application/pdf 1.57 MB
10/31/2022
1.57 MB
Battery Insert for BAT-SCN01 (BAT-SCN01-INSERT-1 Rev A)
application/pdf 115.16 KB
1/18/2024
115.16 KB
White Paper
Name
Description
File Size
Date
Size
White Paper: Battery Maintenance for Portable Devices - English
application/pdf 332.35 KB
6/5/2025
332.35 KB
Name
Description
File Size
Date
Size
User Guide: Network and Security for Honeywell Scanners (NS-SC-EN-SG-01 Rev A)
application/pdf 1.17 MB
4/21/2025
1.17 MB
Regulatory Sheet: Voyager 1200g (RegSht-1200-02 Rev A)
application/pdf 1.5 MB
2/13/2025
1.5 MB
White Paper: Battery Maintenance for Portable Devices - English
application/pdf 332.35 KB
6/5/2025
332.35 KB
Quick Start Guide: Access Point (ACC-PT-QS Rev E)
application/pdf 654.1 KB
3/15/2024
654.1 KB
User Guide for Voyager 1200g, 1202g, 1202g-BF - English (VG1200-UG Rev H)
application/pdf 3.75 MB
1/26/2024
3.75 MB
Voyager 1202g-BF Regulatory Sheet (RegSht-1202BF-03 Rev A)
application/pdf 1.72 MB
2/13/2025
1.72 MB
Voyager 1202g Regulatory Sheet (RegSht-1202-05 Rev A)
application/pdf 2.12 MB
2/13/2025
2.12 MB
Voyager 1200g Scanner Stand Installation Guide
application/pdf 361.09 KB
7/14/2021
361.09 KB
Voyager 1200g Laser Scanner Data Sheet
application/pdf 353.74 KB
7/14/2021
353.74 KB
Regulatory Sheet: Multi-Bay Battery Charger MB4-BAT-SCN01 (RegSht-MBC_02_Rev_A)
application/pdf 719.34 KB
4/28/2025
719.34 KB
Voyager 1202 Battery End Cap and Battery Latch Installation Instructions
application/pdf 848.01 KB
7/14/2021
848.01 KB
Regulatory Sheet: CCB00 (CCB00-MULT-RS-05 Rev A)
application/pdf 1.57 MB
10/31/2022
1.57 MB
Voyager 1200g Single-Line Laser Scanner Quick Start Guide
application/pdf 423.1 KB
7/14/2021
423.1 KB
Voyager 1202g Cordless Single-Line Bar Code Scanner Quick Start Guide
application/pdf 762.33 KB
7/14/2021
762.33 KB
Voyager 1200g Holder Installation
application/pdf 220.54 KB
7/14/2021
220.54 KB
Honeywell CCBOO-010BT Scanner Mount Wall Installation User Guide (CCB00-010BT-INST Rev B)
application/pdf 100.07 KB
7/14/2021
100.07 KB
Battery Insert for BAT-SCN01 (BAT-SCN01-INSERT-1 Rev A)
application/pdf 115.16 KB
1/18/2024
115.16 KB
Showing 1 to 10 of 20 parts
Product Number
Part Number
Description
Leaf Category
Thumbnail
1202G-1
AddOn, Edge Service, Advanced Exchange, Scanner, 5 Year, Customer owned spare pool, Minimum Purchase required, contact your local Honeywell Service Representative for more information.
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-1
AddOn, Edge Service, Advanced Exchange, Scanner, 5 Year, Customer owned spare pool, Minimum Purchase required, contact your local Honeywell Service Representative for more information.
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-1USB-5
Scanner only: 1D, ivory, RS232USBKBWIBM, Bluetooth 10m, assembled in Mexico
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-1USB-5
Scanner only: 1D, ivory, RS232USBKBWIBM, Bluetooth 10m, assembled in Mexico
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-1USB-5-N
USB Kit: ivory BT 10m scanner (1202g-1), charge & communication base (CCB00-010BT-01N), USB Type A 3m straight cable (CBL-500-300-S00), and documentation
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-1USB-5-N
USB Kit: ivory BT 10m scanner (1202g-1), charge & communication base (CCB00-010BT-01N), USB Type A 3m straight cable (CBL-500-300-S00), and documentation
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2
USB Kit: ivory BT 10m scanner (1202g-1), charge & communication base (CCB00-010BT-01N), USB Type A 3m straight cable (CBL-500-300-S00), and documentation, assembled in Mexico
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2
USB Kit: ivory BT 10m scanner (1202g-1), charge & communication base (CCB00-010BT-01N), USB Type A 3m straight cable (CBL-500-300-S00), and documentation, assembled in Mexico
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2-N
Scanner only: 1D, black, RS232USBKBWIBM, Bluetooth 10m
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2-N
Scanner only: 1D, black, RS232USBKBWIBM, Bluetooth 10m
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2USB-5
Scanner only: 1D, black, RS232USBKBWIBM, Bluetooth 10m, assembled in Mexico
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2USB-5
Scanner only: 1D, black, RS232USBKBWIBM, Bluetooth 10m, assembled in Mexico
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2USB-5-N
USB Kit : Black BT 10m battery free scanner (1202g-2-BF), charge & communication base (CCB00-010BT-01N-BF), USB Type A 3m straight cable (CBL-500-300-S00), and documentation. Power Supply PS-05-1000W-X can be ordered separately, assembled in Mexico
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2USB-5-N
USB Kit : Black BT 10m battery free scanner (1202g-2-BF), charge & communication base (CCB00-010BT-01N-BF), USB Type A 3m straight cable (CBL-500-300-S00), and documentation. Power Supply PS-05-1000W-X can be ordered separately, assembled in Mexico
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2USB-5BF
USB Kit: black BT 10m scanner (1202g-2), charge & communication base (CCB00-010BT-01N), USB Type A 3m straight cable (CBL-500-300-S00), and documentation
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2USB-5BF
USB Kit: black BT 10m scanner (1202g-2), charge & communication base (CCB00-010BT-01N), USB Type A 3m straight cable (CBL-500-300-S00), and documentation
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2USB-5BF-N
USB Kit : Black BT 10m battery free scanner (1202g-2-BF), charge & communication base (CCB00-010BT-01N-BF), USB Type A 3m straight cable (CBL-500-300-S00), and documentation. Power Supply PS-05-1000W-X can be ordered separately
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
1202G-2USB-5BF-N
USB Kit : Black BT 10m battery free scanner (1202g-2-BF), charge & communication base (CCB00-010BT-01N-BF), USB Type A 3m straight cable (CBL-500-300-S00), and documentation. Power Supply PS-05-1000W-X can be ordered separately
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
CCB00-010BT-01N
Cable: RS232 (5V signals), NCR 787x, black, 8 pin modular, 3m (9.8´), straight, external power with option for 5V host power on pin 1
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner
CCB00-010BT-01N
Cable: RS232 (5V signals), NCR 787x, black, 8 pin modular, 3m (9.8´), straight, external power with option for 5V host power on pin 1
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-1202g-barcode-scanner

Complete Your Solution

Honeywell Support Services
Maximize the value of your scanners with complete support throughout the full lifecycle.
Maximize the value of your scanners with complete support throughout the full lifecycle.
Learn More
Feedback
