Barcode Scan Modules

Vuquest™ 3300g 2D Imager Module

Aggressive scanning. Fixed mount. Easy to install. Multiple interfaces. LED aimer. Durable. Remote configurability.

Overview

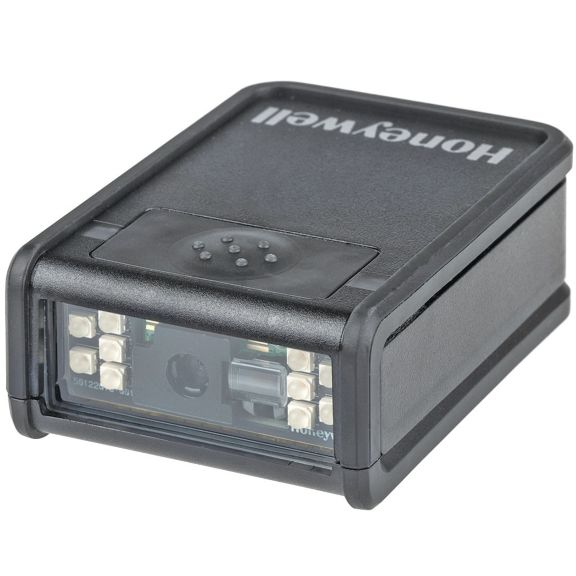

Vuquest™ 3300g 2D Imager Module
The Honeywell Vuquest 3330g OEM 2D imager offers aggressive scanning of all 1D and 2D barcodes. And we built its durable, flexible form factor to accelerate integration into your solutions.
Designed for OEM fixed mount and kiosk integrations, the 3330g imager is easy to install onto a bracket, available with multiple interfaces, and supports presentation mode scanning.
These capabilities make the Vuquest 3330g imager easy to tailor to your environment. And our TotalFreedom software plug-ins expand the imagers capabilities to include OCR capture and reading, driving license parsing, and boarding pass scanning.
The 3330g imager is ready for ever-changing data capture needs. It can be incorporated into your design as a 1D-only device, and then affordably upgraded to 2D scanning at any time. This upgradeability freedom protects your investment and can extend your product lifecycles, allowing you to match new market and customer requirements without costly redesigns.
Easy to install, flexible, and upgradeable: Vuquest 3330g imager is the ideal OEM imager for your fixed-mount solution.
Features
  • Aggressive scanning: Superior 1D and 2D barcode reading performance, whether on paper or mobile phone screens.
  • Safe, LED-based aimer: Eliminates any risk of eye injury.
  • Ideal for customer-facing environments where customers use the barcode scanner themselves.
  • Compact and flexible to your needs: Compact size, multiple interfaces and ease of mounting make 3330g flexible to fit your design requirements.
  • Start with 1D, upgrade to 2D later: Protect your investment and extend your product lifecycles: incorporate the 3330g into your design as a 1D-only device, then affordably upgrade to 2D scanning at any time.
  • Remote management saves time and money: Simplify support needs and enjoy reduced total cost of ownership by remotely managing installed devices.
Key Applications
  • Self-service, interactive kiosks and smart lockers
  • Access control and check-in
  • Ticket validation
  • Retail point-of-sale
  • Financial
  • Medical diagnostic and analytical equipment
Designed to read barcodes directly off mobile phone screens ̵1: ideal for customer-facing applications such as OEM fixed mount and kiosk integrations.
Contactless technology and automation are transforming the way we live and work. Honeywell Logistics Sensing is developing the latest vision solutions to support a wide range of applications for: access control, retail, healthcare, transportation and logistics, warehouse and distribution, and hospitality. Find out more
Specifications

Features

  • Drop
    • Designed to withstand 1.5 m [5 ft] Drops
  • Features & Benefits
    • Its Compact Size, Multiple Interfaces, and Ease of Mounting Make 3330G Flexible to Fit Your Design Requirements
    • Laser-Free Aiming is Ideal for Customerfacing Environments and Eliminates Any Risk of Eye Injury
    • Protect Your Investment and Extend Your Product Lifecycles with the Ability to Enable 2D Scanning at Any Point in the Future
    • Simplify Support Needs and Enjoy Reduced Total Cost of Ownership by Remotely Managing Installed Devices
    • Superior 1D and 2D Barcode Reading Performance whether on Paper or Mobile Phone Screens
  • Sensor Technology
    • Proprietary Honeywell Sensor
  • Symbol Contrast
    • 20% Minimum Reflectance Difference
  • Ambient Light
    • 0 to 100,00 lux
  • Aimer Type
    • LED
  • Vibration
    • Withstands 5G Peak From 22 to 300 Hz
  • Sealing
    • IP53

Operating Characteristics

  • Storage Temperature
    • -20 to 70°C
  • Humidity
    • 5 to 95% RH (Non-Condensing)

Technical Specifications

  • Motion Tolerance
    • Up to 240 in/s for UPC 13 mil (Enhanced Streaming Presentation Trigger Mode)
  • Scan Angle (°)
    • Horizontal: 42.4°
    • Vertical: 33°
  • Host Interface
    • Keyboard Wedge
    • RS-232
    • USB
  • Illumination
    • LED
  • Optics
    • ER: Extended Range
    • SR: Standard Range

Electrical Specifications

  • Working Power
    • 2.3
  • Standby Power
    • 0.45 W (90 mA at 5 V)
  • Input Voltage
    • 5 VDC ± 0.25 V

Applications & Compatibility

  • Compatibility
    • ATMs
    • Access Control
    • Retail POS and Fast Food Self-Ordering Kiosks
    • Selfservice Kiosks
    • Vending Machines

Dimensions & Weight

  • Dimension
    • L: 74 mm W: 50 mm H: 26 mm

Overview

  • Warranty
    • 2 Year Limited Warranty (Period Starts at Date of Shipment from Honeywell To Customer)

Features

  • Drop
    • Designed to withstand 1.5 m [5 ft] Drops
  • Features & Benefits
    • Its Compact Size, Multiple Interfaces, and Ease of Mounting Make 3330G Flexible to Fit Your Design Requirements
    • Laser-Free Aiming is Ideal for Customerfacing Environments and Eliminates Any Risk of Eye Injury
    • Protect Your Investment and Extend Your Product Lifecycles with the Ability to Enable 2D Scanning at Any Point in the Future
    • Simplify Support Needs and Enjoy Reduced Total Cost of Ownership by Remotely Managing Installed Devices
    • Superior 1D and 2D Barcode Reading Performance whether on Paper or Mobile Phone Screens
  • Sensor Technology
    • Proprietary Honeywell Sensor
  • Symbol Contrast
    • 20% Minimum Reflectance Difference
  • Ambient Light
    • 0 to 100,00 lux
  • Aimer Type
    • LED
  • Vibration
    • Withstands 5G Peak From 22 to 300 Hz
  • Sealing
    • IP53

Operating Characteristics

  • Storage Temperature
    • -20 to 70°C
  • Humidity
    • 5 to 95% RH (Non-Condensing)

Technical Specifications

  • Motion Tolerance
    • Up to 240 in/s for UPC 13 mil (Enhanced Streaming Presentation Trigger Mode)
  • Scan Angle (°)
    • Horizontal: 42.4°
    • Vertical: 33°
  • Host Interface
    • Keyboard Wedge
    • RS-232
    • USB
  • Illumination
    • LED
  • Optics
    • ER: Extended Range
    • SR: Standard Range

Electrical Specifications

  • Working Power
    • 2.3
  • Standby Power
    • 0.45 W (90 mA at 5 V)
  • Input Voltage
    • 5 VDC ± 0.25 V

Applications & Compatibility

  • Compatibility
    • ATMs
    • Access Control
    • Retail POS and Fast Food Self-Ordering Kiosks
    • Selfservice Kiosks
    • Vending Machines

Dimensions & Weight

  • Dimension
    • L: 74 mm W: 50 mm H: 26 mm

Overview

  • Warranty
    • 2 Year Limited Warranty (Period Starts at Date of Shipment from Honeywell To Customer)
  • Drop : Designed to withstand 1.5 m [5 ft] Drops
  • Storage Temperature : -20 to 70°C
  • Features & Benefits : Its Compact Size, Multiple Interfaces, and Ease of Mounting Make 3330G Flexible to Fit Your Design Requirements|Laser-Free Aiming is Ideal for Customerfacing Environments and Eliminates Any Risk of Eye Injury|Protect Your Investment and Extend Your Product Lifecycles with the Ability to Enable 2D Scanning at Any Point in the Future|Simplify Support Needs and Enjoy Reduced Total Cost of Ownership by Remotely Managing Installed Devices|Superior 1D and 2D Barcode Reading Performance whether on Paper or Mobile Phone Screens
  • Sensor Technology : Proprietary Honeywell Sensor
  • Motion Tolerance : Up to 240 in/s for UPC 13 mil (Enhanced Streaming Presentation Trigger Mode)
  • Symbol Contrast : 20% Minimum Reflectance Difference
  • Scan Angle (°) : Horizontal: 42.4°|Vertical: 33°
  • Host Interface : Keyboard Wedge|RS-232|USB
  • Working Power : 2.3
  • Standby Power : 0.45 W (90 mA at 5 V)
  • Input Voltage : 5 VDC ± 0.25 V
  • Compatibility : ATMs|Access Control|Retail POS and Fast Food Self-Ordering Kiosks|Selfservice Kiosks|Vending Machines
  • Ambient Light : 0 to 100,00 lux
  • Illumination : LED
  • Aimer Type : LED
  • Vibration : Withstands 5G Peak From 22 to 300 Hz
  • Dimension : L: 74 mm W: 50 mm H: 26 mm
  • Warranty : 2 Year Limited Warranty (Period Starts at Date of Shipment from Honeywell To Customer)
  • Humidity : 5 to 95% RH (Non-Condensing)
  • Sealing : IP53
  • Optics : ER: Extended Range|SR: Standard Range
