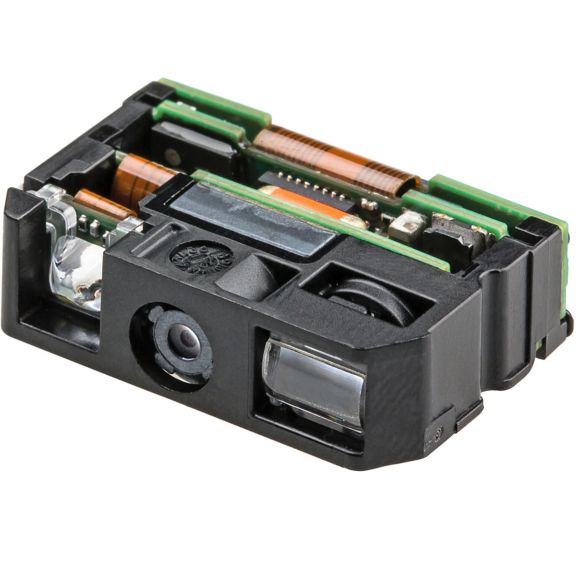

N660X Series 2D Ultra Slim Scan Engine
Ultra compact. MIPI interface available. Exceptional motion tolerance. White illumination. Choice of LED or laser aiming. Enhanced flexibility.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
If you were to look inside the ultra-compact N660X Series engine, you'd find a proprietary imaging sensor designed specifically for professional barcode reading. With its powerful white illumination, this compact sensor captures more detail. It's exceptionally motion tolerant, too, so it can decode hard-to-read barcodes and tolerate challenging ambient light environments with ease. The N660X Series also puts a premium on interface flexibility.
These products support both traditional parallel and MIPI interfaces for emerging technologies. This enables easier integration with the latest processors, saves space, reduces overall design cost and shortens the integration and development cycle. The N660X Series is backwards compatible with nearly all N560X Series designs, which reduces development complexity and makes it easier and faster to integrate. They also provide a choice of better visibility LED or laser aimers to give flexibility to better suit customer application requirements.
As one of our next-generation flagship products, the N660X series inherits the most advanced imaging technology from both Honeywell and legacy Intermec. It's also a smart choice for enterprise mobility, tablet, sled and wearable device makers who don't want to compromise thermal management, power consumption, peak current control and EMI for unmatched 2D scanning performance.
Features
- Ultra compact: At only 6,8 mm, the slim height makes it easier to fit today's and tomorrow's ultra slim devices.
- MIPI interface available: Supports the latest technology trends for shorter design cycles.
- White illumination: Choice of LED or laser aiming systems.
- Enhanced flexibility: Supports customers' electronic design.
- Enhanced performance: Delivers improved scan speed, motion tolerance up to 5,8 m/s, enhanced reading capability for poorly printed barcodes, support for color barcodes, and full symbology support.
Contactless technology and automation are transforming the way we live and work. Honeywell Logistics Sensing is developing the latest vision solutions to support a wide range of applications for: access control, retail, healthcare, transportation and logistics, warehouse and distribution, and hospitality. Find out more
Others
- Aimer Type
- Laser
- Working Current
- 315 milliampere
- Warranty
- 15 Month Limited Warranty (The Warranty Period Starts at Date of Shipment From Honeywell to Customer)
- Symbol Contrast
- 20% Minimum Reflectance
- Storage Temperature
- -40 to 85°C
- Standards & Approvals
- 21CFR 1040.10
- 21CFR 1040.11
- IEC 60825-1:2007
- IEC 60825-1:2014
- Sensor Type
- Proprietary CMOS Sensor With Global Shutter and 844 × 640 pixel Resolution; 60 Frames Per Second Max
- Scan Angle (°)
- 360°, pitch: ±45°, skew: ±60°
- Motion Tolerance
- Up to 584 cm [230 in] per second in Total Darkness with 100% UPC at 10 cm [4 in] Distance
- Input Voltage
- 3.3 VDC ±5%
- Illumination
- White LED (Exempt Risk Group)
- Idle Current
- 150 milliampere
- Humidity
- 0 to 95% RH (Non-Condensing at 50°C)
- Host Interface
- MIPI
- Parallel
- Field Of View
- Extended Range (ER): 35.6° (H) x 27.5°C (V)
- Standard Range (SR): 42.4° (H) x 33°C (V)
- Features & Benefits
- At Only 6.8 mm the Slim Height Makes it Easier to Fit Today's and Tomorrow's Ultra Slim Devices
- Choice of Better Visible LED or Laser Aimers Gives Flexibility to Better Suit Customer Application Requirements
- Delivers Improved Scan Speed
- Motion Tolerance Up To 5 M/S Enhanced Reading Capability for Poorly Printed Barcodes
- Optimized White Illumination Enhances Barcode Reading Performance
- Support for Color Barcodes and Full Symbology Support
- Supports the Latest Technology Trends for Shorter Design Cycles
- Dimension
- L: 23.5 mm W: 16.2 mm H: 6.8 mm
- Brand
- Honeywell
- Ambient Light Immunity
- 0 to 100,000 lux
Others
- Aimer Type
- Laser
- Working Current
- 315 milliampere
- Warranty
- 15 Month Limited Warranty (The Warranty Period Starts at Date of Shipment From Honeywell to Customer)
- Symbol Contrast
- 20% Minimum Reflectance
- Storage Temperature
- -40 to 85°C
- Standards & Approvals
- 21CFR 1040.10
- 21CFR 1040.11
- IEC 60825-1:2007
- IEC 60825-1:2014
- Sensor Type
- Proprietary CMOS Sensor With Global Shutter and 844 × 640 pixel Resolution; 60 Frames Per Second Max
- Scan Angle (°)
- 360°, pitch: ±45°, skew: ±60°
- Motion Tolerance
- Up to 584 cm [230 in] per second in Total Darkness with 100% UPC at 10 cm [4 in] Distance
- Input Voltage
- 3.3 VDC ±5%
- Illumination
- White LED (Exempt Risk Group)
- Idle Current
- 150 milliampere
- Humidity
- 0 to 95% RH (Non-Condensing at 50°C)
- Host Interface
- MIPI
- Parallel
- Field Of View
- Extended Range (ER): 35.6° (H) x 27.5°C (V)
- Standard Range (SR): 42.4° (H) x 33°C (V)
- Features & Benefits
- At Only 6.8 mm the Slim Height Makes it Easier to Fit Today's and Tomorrow's Ultra Slim Devices
- Choice of Better Visible LED or Laser Aimers Gives Flexibility to Better Suit Customer Application Requirements
- Delivers Improved Scan Speed
- Motion Tolerance Up To 5 M/S Enhanced Reading Capability for Poorly Printed Barcodes
- Optimized White Illumination Enhances Barcode Reading Performance
- Support for Color Barcodes and Full Symbology Support
- Supports the Latest Technology Trends for Shorter Design Cycles
- Dimension
- L: 23.5 mm W: 16.2 mm H: 6.8 mm
- Brand
- Honeywell
- Ambient Light Immunity
- 0 to 100,000 lux
- Aimer Type : Laser|
- Working Current : 315 milliampere|
- Warranty : 15 Month Limited Warranty (The Warranty Period Starts at Date of Shipment From Honeywell to Customer)|
- Symbol Contrast : 20% Minimum Reflectance|
- Storage Temperature : -40 to 85°C|
- Standards & Approvals : 21CFR 1040.10|21CFR 1040.11|IEC 60825-1:2007|IEC 60825-1:2014|
- Sensor Type : Proprietary CMOS Sensor With Global Shutter and 844 × 640 pixel Resolution; 60 Frames Per Second Max|
- Scan Angle (°) : 360°, pitch: ±45°, skew: ±60°|
- Motion Tolerance : Up to 584 cm [230 in] per second in Total Darkness with 100% UPC at 10 cm [4 in] Distance|
- Input Voltage : 3.3 VDC ±5%|
- Illumination : White LED (Exempt Risk Group)|
- Idle Current : 150 milliampere|
- Humidity : 0 to 95% RH (Non-Condensing at 50°C)|
- Host Interface : MIPI|Parallel|
- Field Of View : Extended Range (ER): 35.6° (H) x 27.5°C (V)|Standard Range (SR): 42.4° (H) x 33°C (V)|
- Features & Benefits : At Only 6.8 mm the Slim Height Makes it Easier to Fit Today's and Tomorrow's Ultra Slim Devices|Choice of Better Visible LED or Laser Aimers Gives Flexibility to Better Suit Customer Application Requirements|Delivers Improved Scan Speed|Motion Tolerance Up To 5 M/S Enhanced Reading Capability for Poorly Printed Barcodes|Optimized White Illumination Enhances Barcode Reading Performance|Support for Color Barcodes and Full Symbology Support|Supports the Latest Technology Trends for Shorter Design Cycles|
- Dimension : L: 23.5 mm W: 16.2 mm H: 6.8 mm|
- Brand : Honeywell|
- Ambient Light Immunity : 0 to 100,000 lux|
