Self-Retracting Lifelines

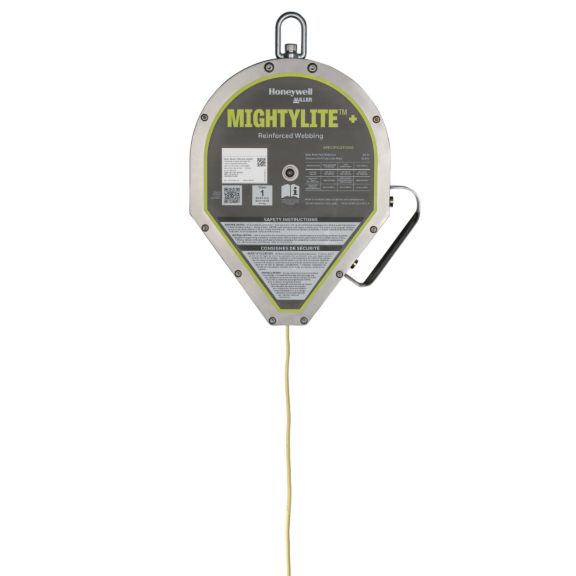

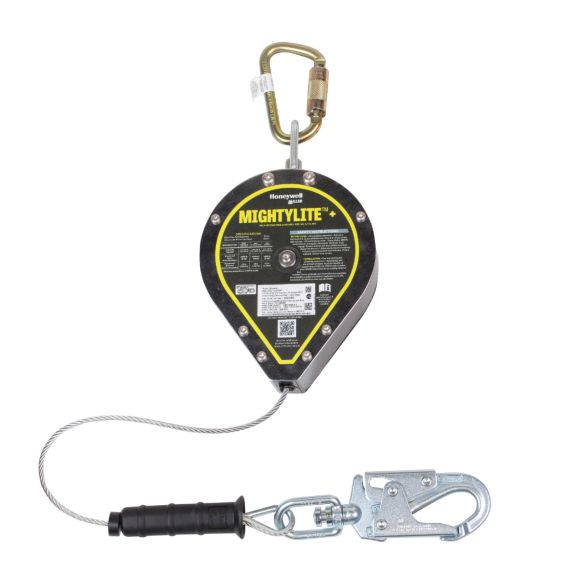

MightyLite+
Now part of our PLUS family of newly redesigned self-retracting devices, the Honeywell Miller MightyLite(TM)+ showcases increased performance and user-friendly design and labels, aligned with Honeywell Miller H-series harnesses.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Serious safety performance and legendary dependability are now part of the PLUS family of newly redesigned self-retracting lifelines. Ideal for a full range of applications, MightyLite+ self-retracting devices are available with galvanized and stainless-steel wire rope, in lengths from 20 ft (6m) to 130 ft (40m). MightyLite+ lifelines are easy to carry and install overhead or may be permanently mounted for repeat use. 1. INCREASED WEIGHT RATING- Increased weight rating up to 420lbs (190.5kg) - OSHA- Meets requirements of OSHA, ANSI Z359.14-2021 SRD Class 1 2. VARIETY OF LENGTHS- Available in 20 ft, 30 ft, 40 ft, 50 ft, 85 ft, and 100 ft (130 ft available soon) 3. UNIT & LANYARD CONNECTIONS- Corrosion-resistant stainless steel and aluminum housing extend service life- Integral swivel reduces lifeline twisting- Narrow payout port limits intrusion of foreign debris- Quick-activating inertia brakes limit a free fall to less than two feet- No annual factory recertification required 4. REDESIGNED LABELS- Enhanced graphics, icons, and colors on UV-resistant scratch-resistant labeling- New Miller look and feel, designs aligned with Honeywell Harnesses for mix and match protection- Labeling aids user with regular inspection by providing space for recording 5. LIFELINE- Carabiner and tagline included- Available in Galvanized and Stainless Steel option (Kevlar rope available soon)
Specifications
Others
- Lifeline Connector Material
- Galvanized Steel
- Standards & Certifications
- ANSI Z359.14-2021
- CSA Z259.2.2-2019
- Lifeline Configuration
- Overhead only
- Edge Rated
- N/A
- Lifeline Connector
- Swivel Load Indicator Snap Hook
- Unit Connector
- Carabiner
- Product Length
- 20ft / 40ft / 50ft / 85ft / 100 ft / 130ft
- Lifeline Material
- Galvanized Steel / Kevlar rope
- Sealed Technology
- N/A
- Operating Temperature Range
- -40 to 130 degree Fahrenheit
- Internal Components Material
- Aluminium
- Galvanized Steel
- Stainless Steel
- Features & Benefits
- Innovative lightweight design
- Meets new ANSI standard
- User friendly
- Brake Material
- Stainless Steel
- Unit Connector Breaking Strength
- 3600 pound-force
- RFID
- Yes
- Load Indicator
- Yes
- Lifeline Connector Opening
- Snap Hook
- Rescue-Retrieval Capability
- Yes
- Leading Edge Applications - Radius of Edge
- N/A millimetre
- Connecting Component Swivel
- Snap Hook
- Breaking Strength
- 3591
- Unit Connector Material
- Steel
- Repairable
- Yes / No
- Product Weight
- from 11.5lb to 64lb
Others
- Lifeline Connector Material
- Galvanized Steel
- Standards & Certifications
- ANSI Z359.14-2021
- CSA Z259.2.2-2019
- Lifeline Configuration
- Overhead only
- Edge Rated
- N/A
- Lifeline Connector
- Swivel Load Indicator Snap Hook
- Unit Connector
- Carabiner
- Product Length
- 20ft / 40ft / 50ft / 85ft / 100 ft / 130ft
- Lifeline Material
- Galvanized Steel / Kevlar rope
- Sealed Technology
- N/A
- Operating Temperature Range
- -40 to 130 degree Fahrenheit
- Internal Components Material
- Aluminium
- Galvanized Steel
- Stainless Steel
- Features & Benefits
- Innovative lightweight design
- Meets new ANSI standard
- User friendly
- Brake Material
- Stainless Steel
- Unit Connector Breaking Strength
- 3600 pound-force
- RFID
- Yes
- Load Indicator
- Yes
- Lifeline Connector Opening
- Snap Hook
- Rescue-Retrieval Capability
- Yes
- Leading Edge Applications - Radius of Edge
- N/A millimetre
- Connecting Component Swivel
- Snap Hook
- Breaking Strength
- 3591
- Unit Connector Material
- Steel
- Repairable
- Yes / No
- Product Weight
- from 11.5lb to 64lb
- Lifeline Connector Material : Galvanized Steel
- Standards & Certifications : ANSI Z359.14-2021|CSA Z259.2.2-2019
- Lifeline Configuration : Overhead only
- Edge Rated : N/A
- Lifeline Connector : Swivel Load Indicator Snap Hook
- Unit Connector : Carabiner
- Product Length : 20ft / 40ft / 50ft / 85ft / 100 ft / 130ft
- Lifeline Material : Galvanized Steel / Kevlar rope
- Sealed Technology : N/A
- Operating Temperature Range : -40 to 130 degree Fahrenheit
- Internal Components Material : Aluminium|Galvanized Steel|Stainless Steel
- Features & Benefits : Innovative lightweight design|Meets new ANSI standard|User friendly
- Brake Material : Stainless Steel
- Unit Connector Breaking Strength : 3600 pound-force
- RFID : Yes
- Load Indicator : Yes
- Lifeline Connector Opening : Snap Hook
- Rescue-Retrieval Capability : Yes
- Leading Edge Applications - Radius of Edge : N/A millimetre
- Connecting Component Swivel : Snap Hook
- Breaking Strength : 3591
- Unit Connector Material : Steel
- Repairable : Yes / No
- Product Weight : from 11.5lb to 64lb
