로드셀

모델 D

스루홀 로드셀. 150g에서 30,000lb까지의 범위 ±1.0% FS 정확도 압축만. 스테인리스 스틸

제품설명
Model D

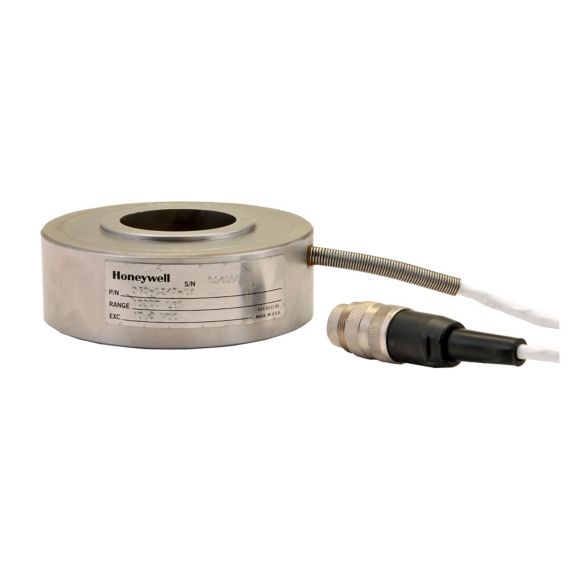

모델 D 도넛 모양의 로드셀은 로드 구조가 셀을 직접 통과해야 하는 애플리케이션에 적합한 매끄러운 관통 설계가 특징입니다. 이러한 적용에는 볼트 힘 측정, 클램핑 힘 및 과부하 모니터링이 포함됩니다. 최대 풀 스케일 정확도 ±1.0% 내에서 150g의 낮은 부하 범위와 30,000lb의 큰 부하 범위를 측정할 수 있습니다. 이 모델은 압축 응용 분야에 사용되며 여러 홀 및 프레임 크기로 제공됩니다. 최적의 성능을 위해 이러한 셀은 평평하고 평행한 적재 표면 사이에 장착해야 합니다. 모델 D 소형 로드셀은 최소 두께를 갖도록 설계되었습니다.

기능
  • 150g ~ 30000lb
  • 관통 홀 설계
  • 변화하는 요구 사항을
Data Sheet
