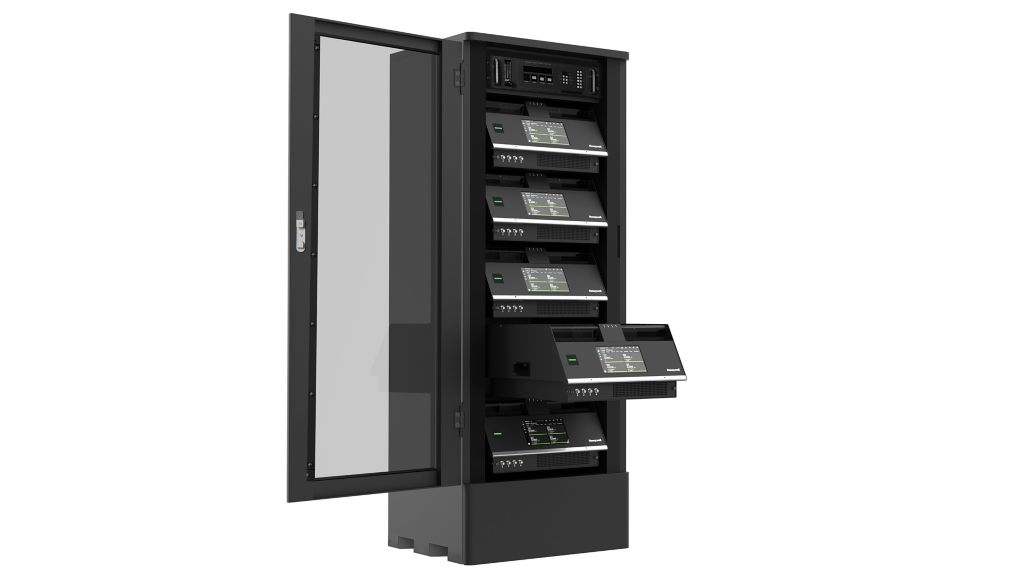

Toxic Gas Monitor VC4
Honeywell VC4 is based on colorimetric technology with more advanced andfriendly designs. It represents the latest in interference free, low maintenance, lowcost of ownership solution forthe semiconductor, pharmaceutical and chemicalindustries
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명
- Authentic Chemcassette® technology for enhance standard of accuracyChemcassette® technology, pioneered by Honeywell, delivers low-level gasdetection you can count on. The system detects highly toxic gases quickly anddefinitively – down to parts per billion (ppb)-as evidenced by a clear, easy-toviewstain on chemically treated tape.
- 4-point gas detection systemVC4 continuous monitoring on 4 Points, more economical and flexible.
- Shorter lead time, faster and more convenient technical response and spareparts supportVC4 is designed and manufactured in China, allowing for more stable, fast, andconvenient technical support.
- Faster gas leak response time. The sampling flow rate at each detection point improves to 2.8LPM for 120Msample line,improving the gas leak response time and can meet the latestTaiwan EPA requirements.
Even the best products deserve expert maintenance!
Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.
Explore our fixed, portable, and high-tech support services now!
명세서
Dimension & Weight
- Weight range
- ≤ 24.95kg
- ≤ 55lbs
Range
- Output Signal Range
- Modbus TCP/IP: CAT5 shielded cable or equivalent (RJ45 connector) Modbus RTU: 2-wire stranded, shielded cable or equivalent (24-14 AWG) Serial outputs: DB9 connector Relay output: 24-14 AWG Current output: 24-14 AWG
- Humidity Range
- 20-80% RH
Temperature
- Minimum Temperature
- 10° C
- 50° F
- Maximum Temperature
- 104° F
- 40° C
Alarm
- Alarm Type
- Audible
- Visual
Relay
- Relay Output Configuration
- Relay contacts (500mA minimum) 2A @ 120VAC, form C contacts. Programmable low and high levels, maintenance, watch dog, energized or de-energized, latching or nonlatching
Voltage & Current
- Operating Current
- 110±10%VAC @ 50 / 60Hz; 220±10%VAC @ 50 / 60Hz
Additional Specifications
- Visual Indicators
- LED indicator: Normal (Green), Alarm 1 (Red), Alarm 2 (Red), Fault (Yellow)
- Plug Type
- TCP/IP and RTU Modbus
Dimension & Weight
- Weight range
- ≤ 24.95kg
- ≤ 55lbs
Range
- Output Signal Range
- Modbus TCP/IP: CAT5 shielded cable or equivalent (RJ45 connector) Modbus RTU: 2-wire stranded, shielded cable or equivalent (24-14 AWG) Serial outputs: DB9 connector Relay output: 24-14 AWG Current output: 24-14 AWG
- Humidity Range
- 20-80% RH
Temperature
- Minimum Temperature
- 10° C
- 50° F
- Maximum Temperature
- 104° F
- 40° C
Alarm
- Alarm Type
- Audible
- Visual
Relay
- Relay Output Configuration
- Relay contacts (500mA minimum) 2A @ 120VAC, form C contacts. Programmable low and high levels, maintenance, watch dog, energized or de-energized, latching or nonlatching
Voltage & Current
- Operating Current
- 110±10%VAC @ 50 / 60Hz; 220±10%VAC @ 50 / 60Hz
Additional Specifications
- Visual Indicators
- LED indicator: Normal (Green), Alarm 1 (Red), Alarm 2 (Red), Fault (Yellow)
- Plug Type
- TCP/IP and RTU Modbus
- Weight range : ≤ 24.95kg|≤ 55lbs
- Output Signal Range : Modbus TCP/IP: CAT5 shielded cable or equivalent (RJ45 connector) Modbus RTU: 2-wire stranded, shielded cable or equivalent (24-14 AWG) Serial outputs: DB9 connector Relay output: 24-14 AWG Current output: 24-14 AWG
- Humidity Range : 20-80% RH
- Minimum Temperature : 10° C|50° F
- Maximum Temperature : 104° F|40° C
- Alarm Type : Audible|Visual
- Relay Output Configuration : Relay contacts (500mA minimum) 2A @ 120VAC, form C contacts. Programmable low and high levels, maintenance, watch dog, energized or de-energized, latching or nonlatching
- Operating Current : 110±10%VAC @ 50 / 60Hz; 220±10%VAC @ 50 / 60Hz
- Visual Indicators : LED indicator: Normal (Green), Alarm 1 (Red), Alarm 2 (Red), Fault (Yellow)
- Plug Type : TCP/IP and RTU Modbus
