    차량 탑재 컴퓨터

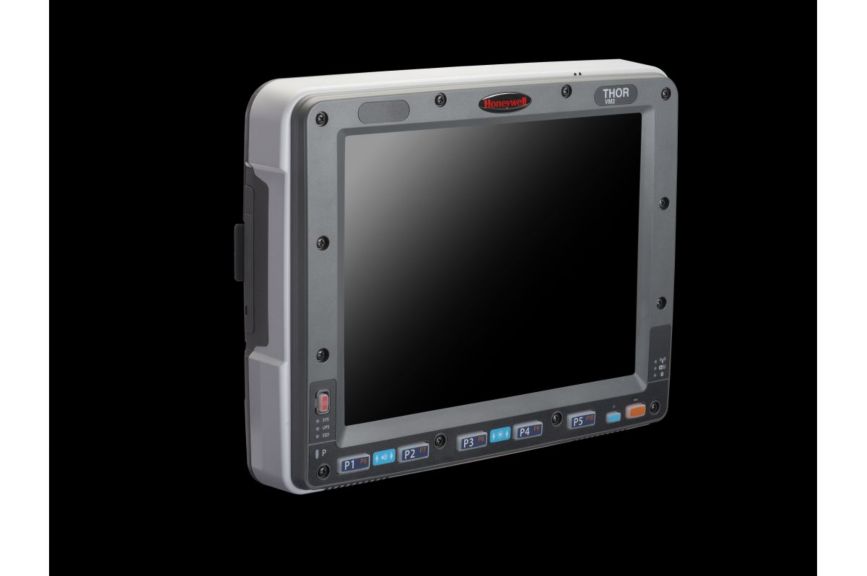

    Thor VM2 차량 탑재 컴퓨터

    Thor VM2 차량 탑재 컴퓨터

    제품설명
    지원 구매처 연락처
    This product is discontinued. We may offer firmware, drivers and manuals for your convenience, as well as online tech support. If you require additional support, please contact us using the links above.
    Product Discontinuation Date:October 1, 2021
    Service & Support Discontinuation Date: December 31, 2026
    Product Replacement: Thor VM3 차량 탑재 컴퓨터

    Thor™ VM2 컴퓨터는 창고, 포트 및 야드 프로세스 자동화에 이상적입니다. 24.63cm(9.7인치) 디스플레이와 획기적인 디자인 혁신을 결합하여 워크플로에 가치를 창출합니다.

    • 차량 배터리 방전으로 인한 유지보수 비용 및 생산성 저하를 제거합니다. 점화 스위치가 꺼진 후 선택 가능한 시간에 자동으로 대기 또는 최대 절전 모드로 전환되도록 장치를 구성할 수 있으므로 창고 관리에 대한 우려 사항을 해결하면서 인력의 시간을 절약할 수 있습니다.
    • 마모 및 부주의한 사용이 가장 많이 이루어지는 부품인 키보드와 터치 스크린을 사용자 교체형 부품으로 통합하여 자본 및 유지 보수 비용을 줄이고 예비용 전면 패널을 예비용 컴퓨터로 대체하여 자본 비용을 줄입니다.
    • 노트북 독처럼 단 몇 초 만에 장착 및 제거가 가능하지만 산업용 응용 분야에 필요한 견고성과 밀폐 기능을 갖추고 있습니다. 작업 부하 변화에 따라 작업자와 컴퓨터를 동적으로 전환하여 효율성을 극대화하는 한편, 평균 시간 대비 6분의 1에 불과한 시간에 한 차량에서 다른 차량으로 컴퓨터를 전환하여 유지 보수 비용을 최소화합니다.

    귀사의 공급망 작업자는 거친 조건과 고유한 어려움에 직면할 수 있습니다. Thor VM2 컴퓨터를 사용하면 이러한 조건과 어려움에 적응하고 대응할 수 있을 뿐만 아니라 워크플로 효율성을 높이고 저비용을 유지할 수 있습니다. Thor VM2 컴퓨터는 프로그래밍 가능한 다기능 키 및 광범위한 실외 작업을 위한 WWAN 연결과 같은 다양한 기능을 통해 Thor VM 라인에 또 다른 중간 크기 디스플레이 옵션을 추가합니다. VM2 컴퓨터는 간단한 애플리케이션 개발을 위해 제작되었습니다. 여러 윈도우 기반 운영 체제를 지원하며 많은 산업 표준 터미널 에뮬레이션 애플리케이션과 호환됩니다. 그리고 Thor VM1 및 VM3 컴퓨터와 마찬가지로 VM2 장치는 워크플로에 신속한 가치를 창출하는 혁신적 디자인을 제공합니다. 소형 도크를 통해 즉각적인 지원 및 유지 보수 비용 절감이 가능한 한편, 효율성이 극대화됩니다. 즉, 하나의 지게차에서 장치의 도킹을 해제한 다음 몇 초 안에 다른 차량에 다시 도킹함에 따라 작업량이 변경되면서 작업자와 컴퓨터가 동적으로 교대하게 됩니다. 현장에서 교체 가능한 전면 패널은 마모 및 부주의한 사용이 가장 많이 이루어지는 부품인 키보드와 터치 스크린을 사용자 교체형 부품으로 통합하여 자본 및 유지 보수 비용을 줄입니다. 또한 이 기능은 예비 컴퓨터를 예비 전면 패널로 대체함으로써 비용을 절감합니다. 점화 제어 기능은 전원 관리 기본 설정을 통해 시동 시간을 절약하고 차량 배터리 수명을 연장할 수 있습니다.

    명세서

    Features

    • 기능
      • 견고한 구조
      • 스마트 도크
      • 점화 제어

    Hardware

    • 연결 인터페이스
      • CANbus
      • RF 안테나
      • RS-232
      • USB
      • 오디오
    • 터치스크린 종류
      • 저항식 터치 및 스타일러스
    • 화면 크기
      • 10인치
    • 네트워크
      • WLAN/WWAN
    • 키보드
      • 터치스크린 전용

    Environmental

    • 보관 온도 범위
      • - 20~50°C
      • - 4~122°F
    • 작동 습도
      • 5 ~ 95%
    • 냉동 저장
      • 냉장 보관 디프로스터 없음

    Standards & Approvals

    • 진동 저항
      • MIL-STD-810F

    Software & Firmware

    • 운영 체제 종류
      • Windows

    Others

    • 운영 체제
      • Windows 7 Pro
      • Windows CE 6.0
      • Windows 임베디드 표준
    • 디스플레이 해상도
      • 1024 x 768
    • 디스플레이 크기
      • 24.6cm
      • 9.7인치
    • 프로세서
      • Intel® Atom Z530 1.6 GHz
    • 작동 온도
      • - 20~50°C
      • - 4~122°F
    • 보증 기간
      • 1년
    • 브랜드
      • Honeywell

    Features

    • 기능
      • 견고한 구조
      • 스마트 도크
      • 점화 제어

    Hardware

    • 연결 인터페이스
      • CANbus
      • RF 안테나
      • RS-232
      • USB
      • 오디오
    • 터치스크린 종류
      • 저항식 터치 및 스타일러스
    • 화면 크기
      • 10인치
    • 네트워크
      • WLAN/WWAN
    • 키보드
      • 터치스크린 전용

    Environmental

    • 보관 온도 범위
      • - 20~50°C
      • - 4~122°F
    • 작동 습도
      • 5 ~ 95%
    • 냉동 저장
      • 냉장 보관 디프로스터 없음

    Standards & Approvals

    • 진동 저항
      • MIL-STD-810F

    Software & Firmware

    • 운영 체제 종류
      • Windows

    Others

    • 운영 체제
      • Windows 7 Pro
      • Windows CE 6.0
      • Windows 임베디드 표준
    • 디스플레이 해상도
      • 1024 x 768
    • 디스플레이 크기
      • 24.6cm
      • 9.7인치
    • 프로세서
      • Intel® Atom Z530 1.6 GHz
    • 작동 온도
      • - 20~50°C
      • - 4~122°F
    • 보증 기간
      • 1년
    • 브랜드
      • Honeywell
    • 기능 : 견고한 구조|스마트 도크|점화 제어
    • 운영 체제 : Windows 7 Pro|Windows CE 6.0|Windows 임베디드 표준
    • 디스플레이 해상도 : 1024 x 768
    • 연결 인터페이스 : CANbus|RF 안테나|RS-232|USB|오디오
    • 디스플레이 크기 : 24.6cm|9.7인치
    • 프로세서 : Intel® Atom Z530 1.6 GHz
    • 보관 온도 범위 : - 20~50°C|- 4~122°F
    • 작동 온도 : - 20~50°C|- 4~122°F
    • 작동 습도 : 5 ~ 95%
    • 냉동 저장 : 냉장 보관 디프로스터 없음
    • 진동 저항 : MIL-STD-810F
    • 보증 기간 : 1년
    • 브랜드 : Honeywell
    • 터치스크린 종류 : 저항식 터치 및 스타일러스
    • 운영 체제 종류 : Windows
    • 화면 크기 : 10인치
    • 네트워크 : WLAN/WWAN
    • 키보드 : 터치스크린 전용
