トルク変換器
モデル 2110シリーズ
フランジ付き反力トルク センサ 容量：225.97Nm～271K Nm、0.1%の非線形性とヒステリシス
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
製品概要

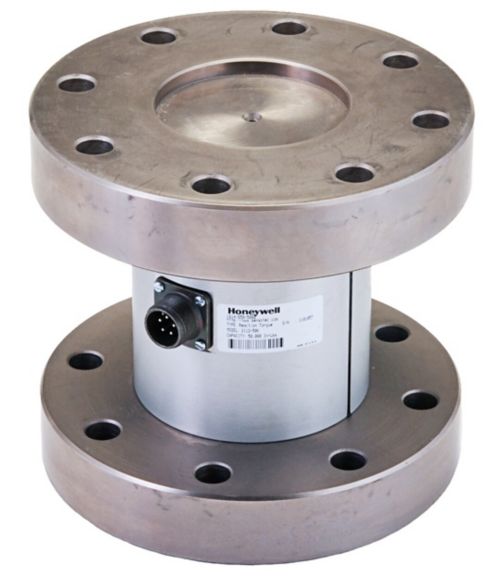

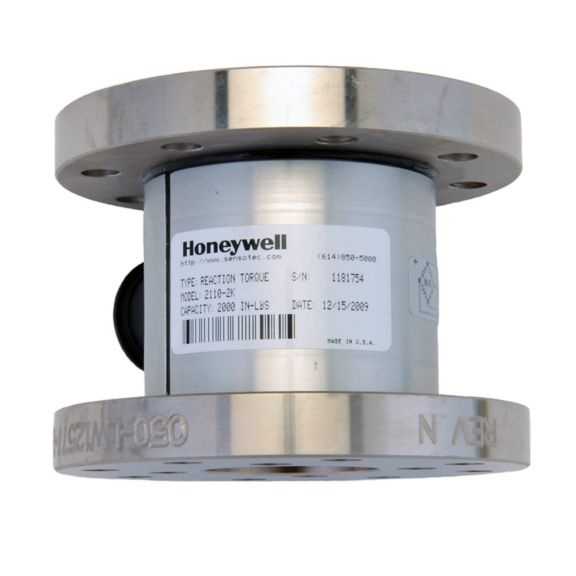

モデル2110-2116フランジ反応トルクセンサはモーター、スイッチ、車軸、あるいは軸、およびその取付板などの試験片への取付け用に設計されています。これらのモデルは双方向で操作し、キャリブレーションします。ニッケルめっき合金鋼構造によって厳しい産業環境における耐性を強化しました。これらのモデルには可動部がなく、トランスデューサの機械加工部分にある接着ひずみゲージ4つを利用して、広いダイナミックレンジで最大の非直線性0.1%を実現します。一般的な応用にはタイヤの制動、モータ動力計、摩擦滑りテスト、ツイスト測定などがあります。2,000 in-lb～2,400,000 in-lb容量。
機能
- 容量：2000in-lb～2400000in-lb
- 非線形性とヒステリシス：0.1%
- 高ねじり剛性
- 曲げモーメントへの高耐性
- 可動部がないため低感度
