ロードセル
モデル 41シリーズ
張力/圧縮精度薄型ロードセル、5lb～50０,000lb フルスケール精度 ±0.13% 本質安全オプション使用可能
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
製品概要

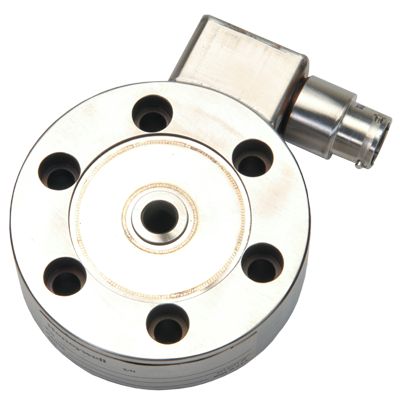

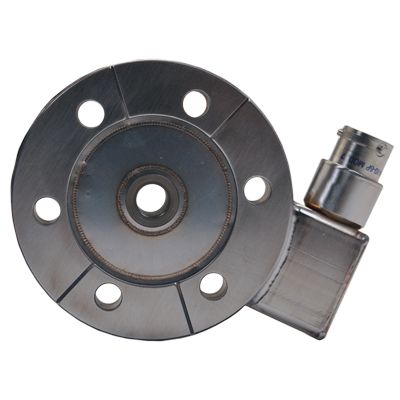

ハネウェル全溶接、ステンレス鋼、薄型、パンケーキ型ロードセルは、5lbから最大500,000lbまでの荷重を測定する結合ホイルまたはホイルストレインゲージ技術を採用し、精度は0.10%から最大0.04%です。特定の用途に合わせて、圧縮のみのモデルまたは張力/圧縮モデルから選択できます。
膨大なサイクル数や過荷重状態となる場合もある材料や製品疲労テストなど、用途に合わせて設計された疲労寿命モデルもご利用いただけます。危険な場所でのご使用には、安全オプションが搭載されたモデルもご利用いただけます。特別な変更が必要な場合、またはカスタム設計したモデル 41シリーズが必要な場合は、当社までお問い合わせください。
機能
- 精度：±0.1%
- 5lb～500000lb
- MV/V出力（標準）：4mA～20mAおよび0Vdc～5Vdc（オプション）出力
- ダブル ダイアフラム デザイン
- 本質安全防爆もご利用いただけます（2Nオプションのみ）
- CE認証
機能
- 精度：±0.1%
- 5lb～500000lb
- MV/V出力（標準）：4mA～20mAおよび0Vdc～5Vdc（オプション）出力
- ダブル ダイアフラム デザイン
- 本質安全防爆もご利用いただけます（2Nオプションのみ）
- CE認証
