    U3Wシリーズ

    ひずみゲージ、アナログ出力:4mA~20mA プログラマブルゲイン設定 広いゼロ調節範囲

    製品概要

    モデルU3W 増幅器は、トランスデューサ用に高調整ブリッジ励起電圧を供給し、トランスデューサのミリボルト信号を4mA~20mAの3線電流出力信号に変えます。汎用インラインは選択可能な励起電圧2種類、プログラム可能なゲイン設定、ゼロの広範囲調整、迅速なキャリブレーションを可能にするバッファ ソリッドステート シャント校正リレーを特長としています。

    機能
    • ひずみゲージセンサ増幅器
    • 供給電圧:18Vdc~32Vdc
    • NEMA 4 ハウジング
    • 選択可能励起電圧:70mAで3Vまたは5V
    • アナログ出力:4mA~20mA
    • 騒音環境下での信号対雑音比が向上
    • 励起源での電圧ドロップの影響を除去
    • 低インピーダンス電源からデータシステムへの信号送信が可能
    データシート
    名前
    説明
    ファイルサイズ
    日付
    サイズ
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    5/24/2021
    649.85 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 246.93 KB
    9/14/2021
    246.93 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 246.81 KB
    10/8/2021
    246.81 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/21/2021
    649.85 KB
    Test & MeasurementModel U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 246.57 KB
    5/12/2021
    246.57 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/19/2021
    649.85 KB
    Test & MeasurementModel U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 246.57 KB
    8/2/2021
    246.57 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    10/7/2021
    649.85 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    5/24/2021
    243.29 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    7/17/2021
    243.29 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    7/21/2021
    243.29 KB
    Test & MeasurementModel U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 246.93 KB
    8/3/2021
    246.93 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    10/22/2021
    243.29 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 653.02 KB
    9/14/2021
    653.02 KB
    Test & MeasurementInstrumentation Accessories Datasheet
    application/pdf 651.85 KB
    8/3/2021
    651.85 KB
    Test & MeasurementInstrumentation Accessories Datasheet
    application/pdf 651.85 KB
    8/2/2021
    651.85 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    9/20/2021
    649.85 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    7/19/2021
    243.29 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/17/2021
    649.85 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    9/20/2021
    243.29 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    10/21/2021
    649.85 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    5/12/2021
    649.85 KB
    マニュアル・ガイド
    名前
    説明
    ファイルサイズ
    日付
    サイズ
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    7/21/2021
    181.26 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    9/20/2021
    181.26 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    7/17/2021
    181.26 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    5/24/2021
    181.26 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    10/22/2021
    181.26 KB
    Model U3W
    application/pdf 181.26 KB
    12/3/2020
    181.26 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    7/19/2021
    181.26 KB
    Model U3W
    application/pdf 181.26 KB
    9/15/2021
    181.26 KB
    Model U3W
    application/pdf 181.26 KB
    5/12/2021
    181.26 KB
    Model U3W
    application/pdf 181.26 KB
    5/11/2021
    181.26 KB
    Model U3W
    application/pdf 181.26 KB
    10/7/2021
    181.26 KB
    製品写真
    名前
    説明
    ファイルサイズ
    日付
    サイズ
    U3W Series Product Photo
    application/zip 344.2 KB
    10/7/2021
    344.2 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    5/11/2021
    344.2 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    10/22/2021
    344.2 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    5/25/2021
    344.2 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    9/20/2021
    344.2 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    7/19/2021
    344.2 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    344.2 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    7/21/2021
    344.2 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    9/14/2021
    344.2 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    6/1/2021
    344.2 KB
    その他
    名前
    説明
    ファイルサイズ
    日付
    サイズ
    Model U3W Top View
    image/png 82.49 KB
    5/24/2021
    82.49 KB
    Model U3W_highres_photo
    image/jpeg 107.16 KB
    9/14/2021
    107.16 KB
    Model U3W Top View
    image/png 84.79 KB
    9/14/2021
    84.79 KB
    Model U3W Front View
    image/png 62.92 KB
    9/14/2021
    62.92 KB
    Model U3W Top View
    image/png 82.49 KB
    7/19/2021
    82.49 KB
    Model U3W_lowres_photo
    image/jpeg 15.76 KB
    5/24/2021
    15.76 KB
    Model U3W_lowres_photo
    image/jpeg 19.88 KB
    9/14/2021
    19.88 KB
    Model U3W Top View
    image/png 82.49 KB
    7/21/2021
    82.49 KB
    Model U3W_lowres_photo
    image/jpeg 15.76 KB
    7/21/2021
    15.76 KB

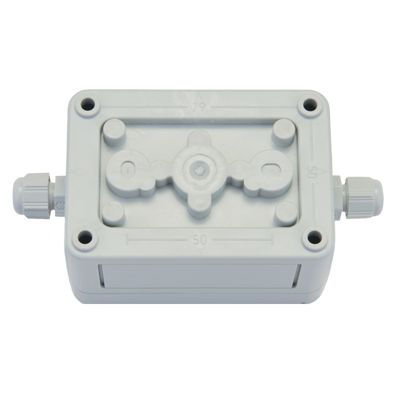

    Model U3W Bottom View
    image/png 87.39 KB
    9/14/2021
    87.39 KB
    Model U3W Bottom View
    image/png 87.39 KB
    7/19/2021
    87.39 KB
    Model U3W Front View
    image/png 60.62 KB
    7/19/2021
    60.62 KB
    Model U3W Bottom View
    image/png 87.39 KB
    7/21/2021
    87.39 KB
    Model U3W Front View
    image/png 62.81 KB
    8/3/2021
    62.81 KB
    Model U3W_highres_photo
    image/jpeg 103.03 KB
    7/21/2021
    103.03 KB
    Model U3W Front View
    image/png 60.62 KB
    5/24/2021
    60.62 KB
    Model U3W Bottom View
    image/png 87.39 KB
    7/17/2021
    87.39 KB
    Model U3W Top View
    image/png 84.68 KB
    8/3/2021
    84.68 KB
    Model U3W Front View
    image/png 60.62 KB
    7/21/2021
    60.62 KB
    Model U3W Top View
    image/png 82.49 KB
    7/17/2021
    82.49 KB
    Model U3W Front View
    image/png 60.62 KB
    7/17/2021
    60.62 KB
    Model U3W Bottom View
    image/png 87.39 KB
    5/24/2021
    87.39 KB
    Model U3W Bottom View
    image/png 89.59 KB
    8/3/2021
    89.59 KB
    Model U3W_highres_photo
    image/jpeg 103.03 KB
    5/24/2021
    103.03 KB
    名前
    説明
    ファイルサイズ
    日付
    サイズ
    U3W Series Product Photo
    application/zip 344.2 KB
    10/7/2021
    344.2 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    5/24/2021
    649.85 KB
    Model U3W Top View
    image/png 82.49 KB
    5/24/2021
    82.49 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    5/11/2021
    344.2 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 246.93 KB
    9/14/2021
    246.93 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    10/22/2021
    344.2 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    7/21/2021
    181.26 KB
    Model U3W_highres_photo
    image/jpeg 107.16 KB
    9/14/2021
    107.16 KB
    Model U3W Top View
    image/png 84.79 KB
    9/14/2021
    84.79 KB
    Model U3W Front View
    image/png 62.92 KB
    9/14/2021
    62.92 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 246.81 KB
    10/8/2021
    246.81 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/21/2021
    649.85 KB
    Test & MeasurementModel U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 246.57 KB
    5/12/2021
    246.57 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    9/20/2021
    181.26 KB
    Model U3W Top View
    image/png 82.49 KB
    7/19/2021
    82.49 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/19/2021
    649.85 KB
    Model U3W_lowres_photo
    image/jpeg 15.76 KB
    5/24/2021
    15.76 KB
    Model U3W_lowres_photo
    image/jpeg 19.88 KB
    9/14/2021
    19.88 KB
    Model U3W Top View
    image/png 82.49 KB
    7/21/2021
    82.49 KB
    Model U3W_lowres_photo
    image/jpeg 15.76 KB
    7/21/2021
    15.76 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    5/25/2021
    344.2 KB
    Test & MeasurementModel U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 246.57 KB
    8/2/2021
    246.57 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    9/20/2021
    344.2 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    7/17/2021
    181.26 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    10/7/2021
    649.85 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    5/24/2021
    243.29 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    5/24/2021
    181.26 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    7/19/2021
    344.2 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    10/22/2021
    181.26 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    7/17/2021
    243.29 KB
    Model U3W
    application/pdf 181.26 KB
    12/3/2020
    181.26 KB
    Model U3W Bottom View
    image/png 87.39 KB
    9/14/2021
    87.39 KB
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    application/pdf 181.26 KB
    7/19/2021
    181.26 KB
    Model U3W Bottom View
    image/png 87.39 KB
    7/19/2021
    87.39 KB
    Model U3W Front View
    image/png 60.62 KB
    7/19/2021
    60.62 KB
    Model U3W Bottom View
    image/png 87.39 KB
    7/21/2021
    87.39 KB
    Model U3W
    application/pdf 181.26 KB
    9/15/2021
    181.26 KB
    Model U3W Front View
    image/png 62.81 KB
    8/3/2021
    62.81 KB
    Model U3W
    application/pdf 181.26 KB
    5/12/2021
    181.26 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    344.2 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    7/21/2021
    243.29 KB
    Test & MeasurementModel U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 246.93 KB
    8/3/2021
    246.93 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    10/22/2021
    243.29 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 653.02 KB
    9/14/2021
    653.02 KB
    Model U3W
    application/pdf 181.26 KB
    5/11/2021
    181.26 KB
    Test & MeasurementInstrumentation Accessories Datasheet
    application/pdf 651.85 KB
    8/3/2021
    651.85 KB
    Test & MeasurementInstrumentation Accessories Datasheet
    application/pdf 651.85 KB
    8/2/2021
    651.85 KB
    Model U3W_highres_photo
    image/jpeg 103.03 KB
    7/21/2021
    103.03 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    7/21/2021
    344.2 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    9/14/2021
    344.2 KB
    Model U3W Front View
    image/png 60.62 KB
    5/24/2021
    60.62 KB
    Model U3W Bottom View
    image/png 87.39 KB
    7/17/2021
    87.39 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    9/20/2021
    649.85 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    7/19/2021
    243.29 KB
    Model U3W
    application/pdf 181.26 KB
    10/7/2021
    181.26 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/17/2021
    649.85 KB
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 243.29 KB
    9/20/2021
    243.29 KB

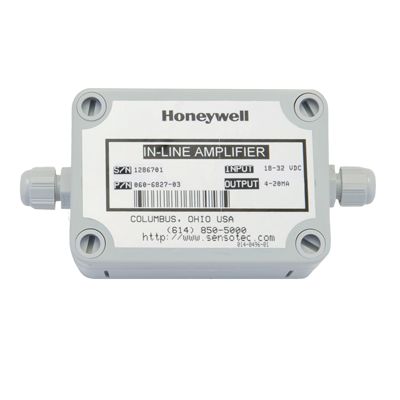

    Model U3W Top View
    image/png 84.68 KB
    8/3/2021
    84.68 KB
    Model U3W Front View
    image/png 60.62 KB
    7/21/2021
    60.62 KB
    Model U3W Top View
    image/png 82.49 KB
    7/17/2021
    82.49 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    10/21/2021
    649.85 KB
    Model U3W Front View
    image/png 60.62 KB
    7/17/2021
    60.62 KB
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    5/12/2021
    649.85 KB
    U3W Series Product Photo
    application/zip 344.2 KB
    6/1/2021
    344.2 KB
    Model U3W Bottom View
    image/png 87.39 KB
    5/24/2021
    87.39 KB
    Model U3W Bottom View
    image/png 89.59 KB
    8/3/2021
    89.59 KB
    Model U3W_highres_photo
    image/jpeg 103.03 KB
    5/24/2021
    103.03 KB
    名前
    説明
    ファイルサイズ
    日付
    サイズ
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    5/24/2021
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    246.93 KB
    9/14/2021
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    246.81 KB
    10/8/2021
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    7/21/2021
    Test & MeasurementModel U3W Bridge Based Sensor In-Line Amplifier Datasheet
    246.57 KB
    5/12/2021
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    7/19/2021
    Test & MeasurementModel U3W Bridge Based Sensor In-Line Amplifier Datasheet
    246.57 KB
    8/2/2021
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    10/7/2021
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    243.29 KB
    5/24/2021
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    243.29 KB
    7/17/2021
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    243.29 KB
    7/21/2021
    Test & MeasurementModel U3W Bridge Based Sensor In-Line Amplifier Datasheet
    246.93 KB
    8/3/2021
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    243.29 KB
    10/22/2021
    Test & Measurement Instrumentation Accessories Datasheet
    653.02 KB
    9/14/2021
    Test & MeasurementInstrumentation Accessories Datasheet
    651.85 KB
    8/3/2021
    Test & MeasurementInstrumentation Accessories Datasheet
    651.85 KB
    8/2/2021
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    9/20/2021
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    243.29 KB
    7/19/2021
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    7/17/2021
    Test & Measurement Model U3W Bridge Based Sensor In-Line Amplifier Datasheet
    243.29 KB
    9/20/2021
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    10/21/2021
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    5/12/2021
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    181.26 KB
    7/21/2021
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    181.26 KB
    9/20/2021
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    181.26 KB
    7/17/2021
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    181.26 KB
    5/24/2021
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    181.26 KB
    10/22/2021
    Model U3W
    181.26 KB
    12/3/2020
    Model U3W Universal In-Line Transducer Amplifier Product Manual
    181.26 KB
    7/19/2021
    Model U3W
    181.26 KB
    5/12/2021
    Model U3W
    181.26 KB
    5/11/2021
    Model U3W
    181.26 KB
    10/7/2021
    U3W Series Product Photo
    344.2 KB
    10/7/2021
    U3W Series Product Photo
    344.2 KB
    5/11/2021
    U3W Series Product Photo
    344.2 KB
    10/22/2021
    U3W Series Product Photo
    344.2 KB
    5/25/2021
    U3W Series Product Photo
    344.2 KB
    9/20/2021
    U3W Series Product Photo
    344.2 KB
    7/19/2021
    U3W Series Product Photo
    344.2 KB
    U3W Series Product Photo
    344.2 KB
    7/21/2021
    U3W Series Product Photo
    344.2 KB
    9/14/2021
    U3W Series Product Photo
    344.2 KB
    6/1/2021
    Model U3W Top View
    82.49 KB
    5/24/2021
    Model U3W_highres_photo
    107.16 KB
    9/14/2021
    Model U3W Top View
    84.79 KB
    9/14/2021
    Model U3W Front View
    62.92 KB
    9/14/2021
    Model U3W Top View
    82.49 KB
    7/19/2021
    Model U3W_lowres_photo
    15.76 KB
    5/24/2021
    Model U3W_lowres_photo
    19.88 KB
    9/14/2021
    Model U3W Top View
    82.49 KB
    7/21/2021
    Model U3W_lowres_photo
    15.76 KB
    7/21/2021
    Model U3W Bottom View
    87.39 KB
    9/14/2021
    Model U3W Bottom View
    87.39 KB
    7/19/2021
    Model U3W Front View
    60.62 KB
    7/19/2021
    Model U3W Bottom View
    87.39 KB
    7/21/2021
    Model U3W Front View
    62.81 KB
    8/3/2021
    Model U3W_highres_photo
    103.03 KB
    7/21/2021
    Model U3W Front View
    60.62 KB
    5/24/2021
    Model U3W Bottom View
    87.39 KB
    7/17/2021
    Model U3W Top View
    84.68 KB
    8/3/2021
    Model U3W Front View
    60.62 KB
    7/21/2021
    Model U3W Top View
    82.49 KB
    7/17/2021
    Model U3W Front View
    60.62 KB
    7/17/2021
    Model U3W Bottom View
    87.39 KB
    5/24/2021
    Model U3W Bottom View
    89.59 KB
    8/3/2021
    Model U3W_highres_photo
    103.03 KB
    5/24/2021

    Filters

    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    060-6827-03
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelu3w-instrumentation-highres-ciid-161209
    060-6827-03
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelu3w-instrumentation-highres-ciid-161209
