磁気センサ
2SS52Mシリーズ

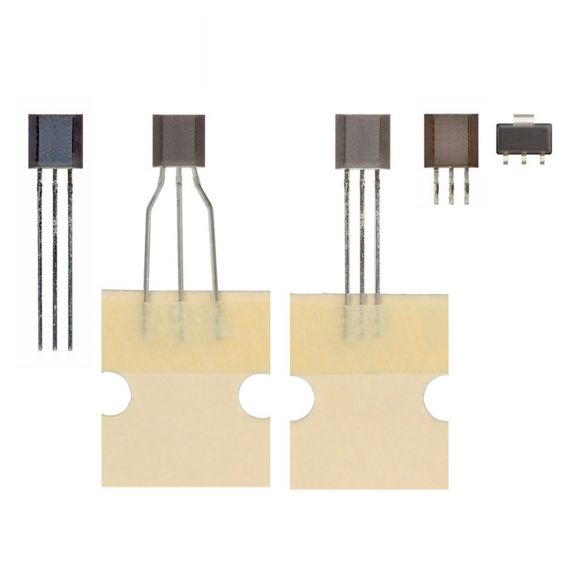

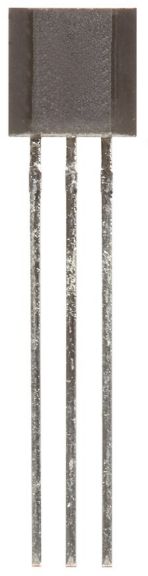

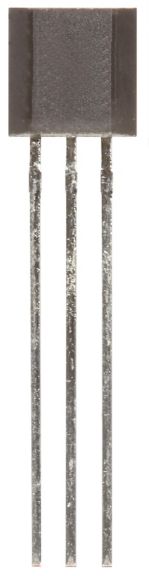

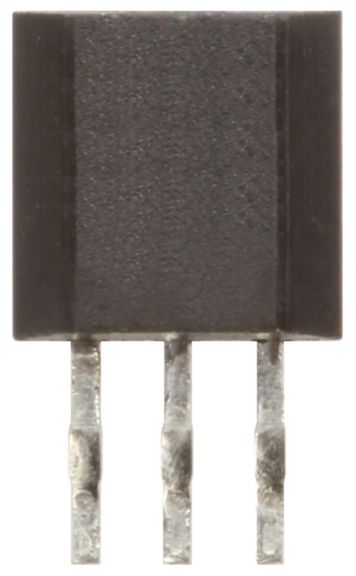

オムニポラー磁気抵抗 U-Pack、SOT-89Bパッケージ 最大動作：25G
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
製品概要
2SS52Mシリーズ デジタル磁気抵抗センサは、オムニポーラ、ソリッドステートセンサで、内蔵型磁気抵抗ブリッジがシリコン上に統合され、プラスティックパッケージ内に封入されています。集積回路にはバンドギャップレギュレータとデジタル出力も入っており、超低磁場にも対応します。
これらのセンサICは、センサICに並列に取り付けられた北磁極または南磁極で動作します。極性を識別する必要がないため、単極アプリケーションへの取り付けが容易になり、回転磁石アプリケーションの分解能が2倍になります。
これらの小型で高感度のオムニポーラ装置は、フローメータ、モーターRPM、シリンダ位置決めのセンシングに人気のビルディングブロックです。
