Multi-Gas

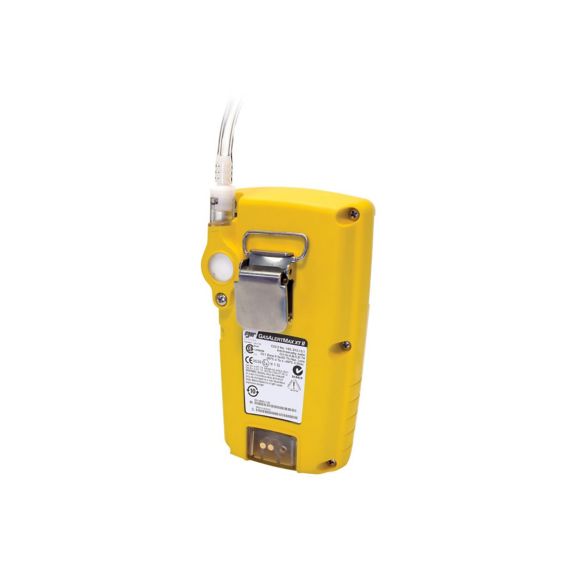

Honeywell BW™ Max XT II
Honeywell BW™ Max XT ll
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Go the distance and save with this smart, simple and economical way to compliance. Product Overview: Honeywell BW™ Max XT ll is the smart, simple, and economical way to compliance. Workers feel safe and incidents are minimized so everyone will be able to do more. That means savings realized from business continuity and productivity. Simple operation, with SmartSample pump. Honeywell BW™ Max XT ll reliably monitors up to four hazards and combines straightforward one-button operation with our robust, motorized pump for intelligent, remote sampling, ideal for confined spaces. The Honeywell BW™ Max XT ll is fully compatible with MicroDock II automated test and calibration system.Features & Benefits:Explore our fixed, portable, and high-tech support services now!
- Monitors H2S, CO, O2 and combustibles
- One-button operation with robust, motorized pump
- Compatible with MicroDock II
- Size: 5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm
- Weight: 11.5 oz. / 328 g
- Temperature: -4 to 122°F / -20 to 50°C
- Readily enables to communicate with Motorola MOTOTRBO
Even the best products deserve expert maintenance!
Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.Specifications
Brand
- Brand
- BW
Category
- Sub-Category
- Multi-Gas
Dimension & Weight
- Instrument Size
- 5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm
Range
- Humidity Range
- 10%-100% percent
- Sensor Range
- H2S (0-200ppm), CO (0-1000ppm), O2 (0-30%vol), LEL (0-100%LEL)
Alarm
- Alarm Type
- Audible, Visual, Vibrating
Battery & Charging
- Battery Run Time
- 8-13 hours
Certifications
- Standards & Certifications
- Class I, Division 1, Groups A, B, C, D
Datalogging
- Datalogging
- 375 hours at 15-second intervals
Features & Benefits
- Features & Benefits
- Integrated sampling
Options
- User Options
- Confidence beep
Sampling
- Sampling Pump Range
- 75ft (23m) meter
Warranty
- Warranty
- Full two year warranty including all sensors
Wireless
- Wireless Technology
- BLE
Additional Specifications
- Gas Type
- H2S, CO, O2, LEL
- Ingress Protection
- IP66/67
Others
- Weight
- 11.5 ounce av
- 328 gram
- Minimum Temperature
- -20 degree Celsius
- -4 degree Fahrenheit
- Maximum Temperature
- 122 degree Fahrenheit
- 50 degree Celsius
Brand
- Brand
- BW
Category
- Sub-Category
- Multi-Gas
Dimension & Weight
- Instrument Size
- 5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm
Range
- Humidity Range
- 10%-100% percent
- Sensor Range
- H2S (0-200ppm), CO (0-1000ppm), O2 (0-30%vol), LEL (0-100%LEL)
Alarm
- Alarm Type
- Audible, Visual, Vibrating
Battery & Charging
- Battery Run Time
- 8-13 hours
Certifications
- Standards & Certifications
- Class I, Division 1, Groups A, B, C, D
Datalogging
- Datalogging
- 375 hours at 15-second intervals
Features & Benefits
- Features & Benefits
- Integrated sampling
Options
- User Options
- Confidence beep
Sampling
- Sampling Pump Range
- 75ft (23m) meter
Warranty
- Warranty
- Full two year warranty including all sensors
Wireless
- Wireless Technology
- BLE
Additional Specifications
- Gas Type
- H2S, CO, O2, LEL
- Ingress Protection
- IP66/67
Others
- Weight
- 11.5 ounce av
- 328 gram
- Minimum Temperature
- -20 degree Celsius
- -4 degree Fahrenheit
- Maximum Temperature
- 122 degree Fahrenheit
- 50 degree Celsius
- Brand : BW
- Weight : 11.5 ounce av|328 gram
- Minimum Temperature : -20 degree Celsius|-4 degree Fahrenheit
- Maximum Temperature : 122 degree Fahrenheit|50 degree Celsius
- Sub-Category : Multi-Gas
- Instrument Size : 5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm
- Humidity Range : 10%-100% percent
- Sensor Range : H2S (0-200ppm), CO (0-1000ppm), O2 (0-30%vol), LEL (0-100%LEL)
- Alarm Type : Audible, Visual, Vibrating
- Battery Run Time : 8-13 hours
- Standards & Certifications : Class I, Division 1, Groups A, B, C, D
- Datalogging : 375 hours at 15-second intervals
- Features & Benefits : Integrated sampling
- User Options : Confidence beep
- Sampling Pump Range : 75ft (23m) meter
- Warranty : Full two year warranty including all sensors
- Wireless Technology : BLE
- Gas Type : H2S, CO, O2, LEL
- Ingress Protection : IP66/67
