Multi-Gas

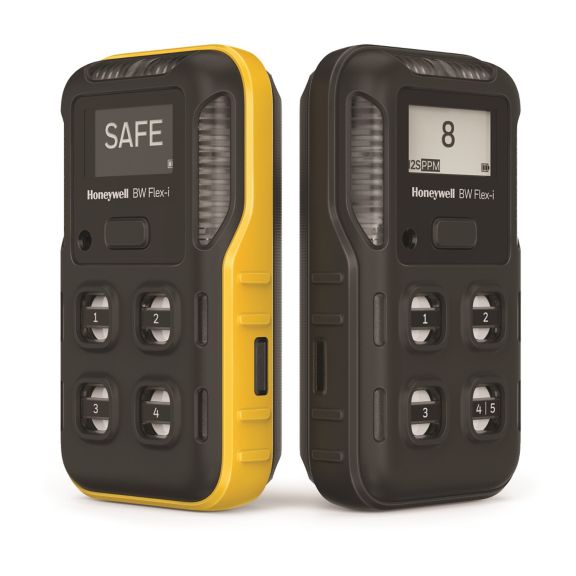

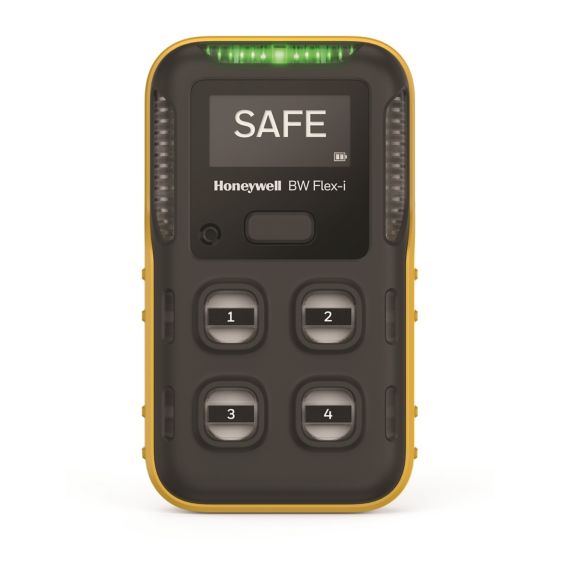

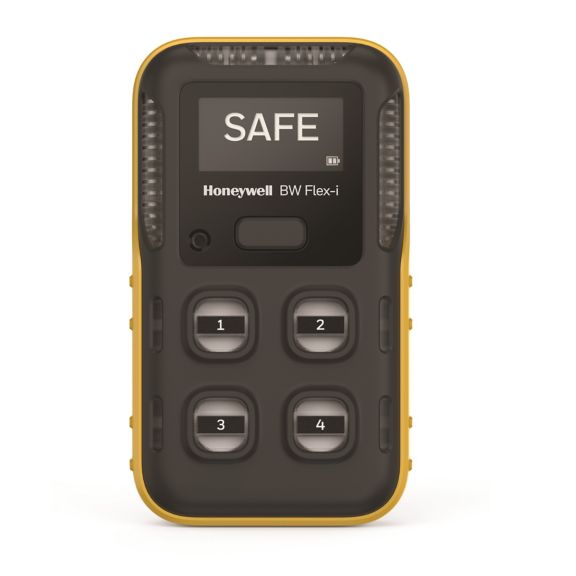

Honeywell BW™ Flex
Portable Multi-Gas Monitor
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Whether you’re protecting workers or first responders in industries from steel and wastewater to paper and pulp, Honeywell BW™ Flex delivers the flexibility you need. Choose from more than 15 sensors to simultaneously detect up to 4 gas hazards.REAL-TIME GAS READINGS AT A GLANCEHoneywell BW™ Flex features a large high-resolution display with readings available in a wide range of languages. Vital safety information is conveyed clearly and effectively, enabling faster decision-making to protect lives in hazardous environments. Its innovative design, compact size and ease of use builds on the legacy of Honeywell BW™ gas detection products.INTELLIGENT SENSORS FOR INCREASED SAFETY & UPTIME Honeywell BW™ Flex incorporates i-Series intelligent sensors which monitor and provide advanced predictive calibration, maintenance and end-of-life information in real-time. These advanced alerts help reduce the likelihood of failure and increase awareness so preventive action can be taken to avoid safety incidents and unexpected downtime.SIMPLIFIED GAS REPORTING AND ANALYSIS Honeywell BW™ Flex can be paired with a smartphone easily via Bluetooth®. Download the Honeywell Safety Suite Device Configurator app for quick and precise device management, maintenance, reporting and analysis. Increase productivity by simplifying tasks like recording incidents and save time with one-click download for all instrument data.FEATURES AND BENEFITS: *RELIABLE - Two months of battery runtime on a 4.5-hour charge with our new low-powered IR LEL sensor. No daily charging, no unexpected downtime*COMPATIBLE - The Honeywell BW™ Flex Series is compatible with the IntelliDoX instrument management system and Honeywell Safety Suite using Bluetooth® for wireless configuration *ACCURATE - Low-power infrared LEL sensor is immune to silicone poisoning, which means accurate monitoring of combustibles.*EASY TO MANAGE - The IntelliFlash™ green light indicates when the detector is in compliance and the amber light indicates the need for maintenance.*RESPONSIVE - 1series sensors respond to dangerous gas levels in seconds, even in harsh temperatures.*EASY TO USE - Small, lightweight and wearable. One-button operation.*COMMUNICATION.- Readily enables to communicate with Motorola MOTOTRBO
Even the best products deserve expert maintenance!
Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.
Explore our fixed, portable, and high-tech support services now!
Specifications
Brand
- Brand
- BW
Category
- Sub-Category
- Multi-Gas
Dimension & Weight
- Instrument Size
- 108.2mm x 61.5mm x 43.2mm (4.29in x 2.44in x 1.7in) with Alligator Clip
Range
- Sensor Range
- O2 (0-30%vol), LEL (0-100% LEL), CO (0-2000ppm), H2S (0-200ppm), SO2 (0-150ppm)
- Humidity Range
- 0%-95% RH percent
Alarm
- Alarm Type
- Audible, Visual, Vibrating
Battery & Charging
- Battery Run Time
- 40 days @ 8 hours of use per day with IR LEL 15 hours with Catalytic LEL (with NDIR CH4 sensor) hours
Certifications
- Certifications - Hazloc
- ATEX, IECEX
Datalogging
- Datalogging
- 45 days of data at 15 sec interval, 8hrs/day
Features & Benefits
- Features & Benefits
- Real-time gas reading at a glance
Warranty
- Warranty
- 3 Years
Wireless
- Wireless Technology
- BLE
Additional Specifications
- Gas Type
- H2S, CO, O2, LEL, SO2
- Ingress Protection
- IP66/68
Others
- Weight
- 189 gram
- Maximum Temperature
- 60 degree Celsius
- Minimum Temperature
- -40 degree Celsius
Brand
- Brand
- BW
Category
- Sub-Category
- Multi-Gas
Dimension & Weight
- Instrument Size
- 108.2mm x 61.5mm x 43.2mm (4.29in x 2.44in x 1.7in) with Alligator Clip
Range
- Sensor Range
- O2 (0-30%vol), LEL (0-100% LEL), CO (0-2000ppm), H2S (0-200ppm), SO2 (0-150ppm)
- Humidity Range
- 0%-95% RH percent
Alarm
- Alarm Type
- Audible, Visual, Vibrating
Battery & Charging
- Battery Run Time
- 40 days @ 8 hours of use per day with IR LEL 15 hours with Catalytic LEL (with NDIR CH4 sensor) hours
Certifications
- Certifications - Hazloc
- ATEX, IECEX
Datalogging
- Datalogging
- 45 days of data at 15 sec interval, 8hrs/day
Features & Benefits
- Features & Benefits
- Real-time gas reading at a glance
Warranty
- Warranty
- 3 Years
Wireless
- Wireless Technology
- BLE
Additional Specifications
- Gas Type
- H2S, CO, O2, LEL, SO2
- Ingress Protection
- IP66/68
Others
- Weight
- 189 gram
- Maximum Temperature
- 60 degree Celsius
- Minimum Temperature
- -40 degree Celsius
- Brand : BW
- Weight : 189 gram
- Maximum Temperature : 60 degree Celsius
- Minimum Temperature : -40 degree Celsius
- Sub-Category : Multi-Gas
- Instrument Size : 108.2mm x 61.5mm x 43.2mm (4.29in x 2.44in x 1.7in) with Alligator Clip
- Sensor Range : O2 (0-30%vol), LEL (0-100% LEL), CO (0-2000ppm), H2S (0-200ppm), SO2 (0-150ppm)
- Humidity Range : 0%-95% RH percent
- Alarm Type : Audible, Visual, Vibrating
- Battery Run Time : 40 days @ 8 hours of use per day with IR LEL 15 hours with Catalytic LEL (with NDIR CH4 sensor) hours
- Certifications - Hazloc : ATEX, IECEX
- Datalogging : 45 days of data at 15 sec interval, 8hrs/day
- Features & Benefits : Real-time gas reading at a glance
- Warranty : 3 Years
- Wireless Technology : BLE
- Gas Type : H2S, CO, O2, LEL, SO2
- Ingress Protection : IP66/68
