Multi-Gas

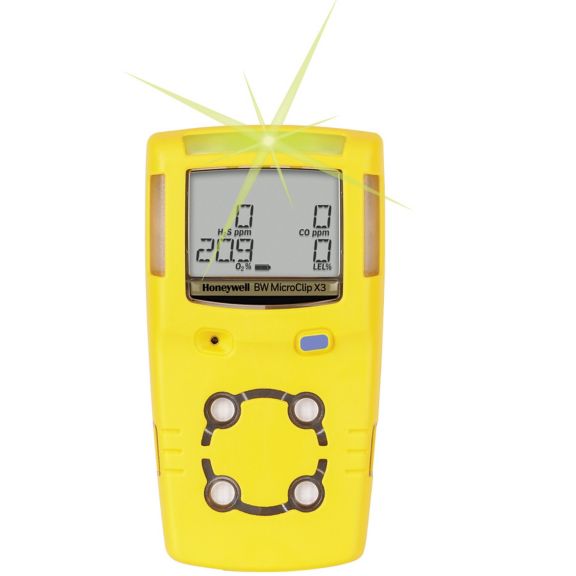

GasAlertMicroClip X3 3-Gas Detector Yellow
Honeywell BW™ MicroClip Series
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Dimension & Weight
- Weight
- 190 gram
- Weight range
- 179 g gram
- Instrument Size
- 11.3 x 6.0 x 3.2 cm / 4.4 x 2.4 x 1.2 in
Brand
- Brand
- Honeywell BW
Category
- Sub-Category
- Multi-Gas Detector
Range
- Sensor Range
- CO: 0-500 ppm
- H2S (0-100ppm)- CO (0-500ppm)- O2 (0-30%vol)- LEL (0-100%LEL)
- H2S: 0-100 ppm
- LEL: 0-100% and 0-5.0% v/v
- O2: 0 to 30.0%
- Humidity Range
- 0 to 95% RH (Non-Condensing) percent
Temperature
- Minimum Temperature
- -20
- -20 degree Celsius
- Maximum Temperature
- 50
- 50 degree Celsius
Features
- Alarm Included
- Yes
- Languages
- English, French, German, Spanish, Portuguese
- Housing Color
- Yellow
Alarm
- Alarm Type
- Audible, Visual, Vibrating
Battery & Charging
- Charging Time
- 6 hours
- Battery Run Time
- 18 Hours; Recharges in Less than 6 Hours hours
- Batteries Required
- Yes
- Batteries Included
- Yes
Certifications
- Standards
- ATEX: CE II 1 G. Ex ia IIC T4 Ga
- CE European Conformity
- CSA: Class I, Div 1, Group A, B, C, D
- CSA: Class I, Div. 1- Gr. A, B, C, D
- IECEx: Ex ia IIC T4 Ga
Datalogging
- Datalogging
- 16 hours at 15-second intervals
Display
- Display Type
- LCD
- Display Readout
- Real-Time Gas Concentrations Shown on LCD
- Display Included
- Yes
Features & Benefits
- Features & Benefits
- Compatible with Honeywell BW Connect for Real Time Monitoring
- Device Management with Honeywell SafetySuite
- Durable, Rechargeable Lithium Polymer Battery Tested to Last in Extreme Environments
- Ergonomic and Wearable Doesn’t Weigh You Down
- Guaranteed Runtime for at Least a 12-Hour Shift, Down To -20°C without Compromising LEL Detection of Hydrogen, Acetylene and Other Combustible Gases
- IntelliFlash™ Light Indicating Detector has Been Bump Tested and is Monitoring Correctly
- No manual checks, no time spent inspecting… just a quick visual scan of the area provides assurance all is well in minutes, not hours. So safety managers can spend more time on the job, not auditing equipment
- User-Friendly Tamperproof Operation with Just One Button and Intuitive LCD Icons
Options
- User Options
- Combustible Gas Measurement (% LEL or % by Volume Methane)
- Confidence beep
- Force Calibration when Overdue
- IntelliFlash™ Interval
- Language Choices
- Low Alarm Acknowledge
- Set Custom Start Up Message
- User-Settable Calibration Gas Level
Sensor
- Number of Gas Sensors Included
- 4
Shelf Life
- Operating Life
- 5 years
Warranty
- Warranty
- 3 Years
Wireless
- Wireless Technology
- BLE
Additional Specifications
- Software License
- Device Management with Honeywell SafetySuite
- Gas Type
- H2S, CO, O2, LEL
- External Calibration
- Compatible with IntelliDox Docking Station for Automated Bump Tests and Calibration
- Decibels
- 95 decibel
- Combustible Concentration
- 0-100% LEL
- Combustible
- Yes
Standards & Certifications
- Ingress Protection
- IP68
Technical Specifications
- Tests
- Audible/Visual Alarms on Activation; Sensors, Battery and Circuitry (Continuous)
- Sensor Life
- 5 Years
- Resolution
- CO: 1 ppm
- H2S: 1 ppm
- LEL: 1%, LEL 5.0% v/v 1 %
- O2: 0.1%
- Model Number
- Honeywell BW MicroClip X3
- Keypad Type
- One Button Operation
- Gases Detected
- O2, LEL, H2S, CO
- EMC/RFI
- EMC Directive: 2004/108/EC
- Dust and Water Resistance
- IP68
Dimensions & Weight
- Size
- 4.4 x 2.4 x 1.2 in
Electrical Specifications
- Power Source
- Battery
Dimension & Weight
- Weight
- 190 gram
- Weight range
- 179 g gram
- Instrument Size
- 11.3 x 6.0 x 3.2 cm / 4.4 x 2.4 x 1.2 in
Brand
- Brand
- Honeywell BW
Category
- Sub-Category
- Multi-Gas Detector
Range
- Sensor Range
- CO: 0-500 ppm
- H2S (0-100ppm)- CO (0-500ppm)- O2 (0-30%vol)- LEL (0-100%LEL)
- H2S: 0-100 ppm
- LEL: 0-100% and 0-5.0% v/v
- O2: 0 to 30.0%
- Humidity Range
- 0 to 95% RH (Non-Condensing) percent
Temperature
- Minimum Temperature
- -20
- -20 degree Celsius
- Maximum Temperature
- 50
- 50 degree Celsius
Features
- Alarm Included
- Yes
- Languages
- English, French, German, Spanish, Portuguese
- Housing Color
- Yellow
Alarm
- Alarm Type
- Audible, Visual, Vibrating
Battery & Charging
- Charging Time
- 6 hours
- Battery Run Time
- 18 Hours; Recharges in Less than 6 Hours hours
- Batteries Required
- Yes
- Batteries Included
- Yes
Certifications
- Standards
- ATEX: CE II 1 G. Ex ia IIC T4 Ga
- CE European Conformity
- CSA: Class I, Div 1, Group A, B, C, D
- CSA: Class I, Div. 1- Gr. A, B, C, D
- IECEx: Ex ia IIC T4 Ga
Datalogging
- Datalogging
- 16 hours at 15-second intervals
Display
- Display Type
- LCD
- Display Readout
- Real-Time Gas Concentrations Shown on LCD
- Display Included
- Yes
Features & Benefits
- Features & Benefits
- Compatible with Honeywell BW Connect for Real Time Monitoring
- Device Management with Honeywell SafetySuite
- Durable, Rechargeable Lithium Polymer Battery Tested to Last in Extreme Environments
- Ergonomic and Wearable Doesn’t Weigh You Down
- Guaranteed Runtime for at Least a 12-Hour Shift, Down To -20°C without Compromising LEL Detection of Hydrogen, Acetylene and Other Combustible Gases
- IntelliFlash™ Light Indicating Detector has Been Bump Tested and is Monitoring Correctly
- No manual checks, no time spent inspecting… just a quick visual scan of the area provides assurance all is well in minutes, not hours. So safety managers can spend more time on the job, not auditing equipment
- User-Friendly Tamperproof Operation with Just One Button and Intuitive LCD Icons
Options
- User Options
- Combustible Gas Measurement (% LEL or % by Volume Methane)
- Confidence beep
- Force Calibration when Overdue
- IntelliFlash™ Interval
- Language Choices
- Low Alarm Acknowledge
- Set Custom Start Up Message
- User-Settable Calibration Gas Level
Sensor
- Number of Gas Sensors Included
- 4
Shelf Life
- Operating Life
- 5 years
Warranty
- Warranty
- 3 Years
Wireless
- Wireless Technology
- BLE
Additional Specifications
- Software License
- Device Management with Honeywell SafetySuite
- Gas Type
- H2S, CO, O2, LEL
- External Calibration
- Compatible with IntelliDox Docking Station for Automated Bump Tests and Calibration
- Decibels
- 95 decibel
- Combustible Concentration
- 0-100% LEL
- Combustible
- Yes
Standards & Certifications
- Ingress Protection
- IP68
Technical Specifications
- Tests
- Audible/Visual Alarms on Activation; Sensors, Battery and Circuitry (Continuous)
- Sensor Life
- 5 Years
- Resolution
- CO: 1 ppm
- H2S: 1 ppm
- LEL: 1%, LEL 5.0% v/v 1 %
- O2: 0.1%
- Model Number
- Honeywell BW MicroClip X3
- Keypad Type
- One Button Operation
- Gases Detected
- O2, LEL, H2S, CO
- EMC/RFI
- EMC Directive: 2004/108/EC
- Dust and Water Resistance
- IP68
Dimensions & Weight
- Size
- 4.4 x 2.4 x 1.2 in
Electrical Specifications
- Power Source
- Battery
- Weight : 190 gram
- Brand : Honeywell BW
- Sub-Category : Multi-Gas Detector
- Weight range : 179 g gram
- Instrument Size : 11.3 x 6.0 x 3.2 cm / 4.4 x 2.4 x 1.2 in
- Sensor Range : CO: 0-500 ppm|H2S (0-100ppm)- CO (0-500ppm)- O2 (0-30%vol)- LEL (0-100%LEL)|H2S: 0-100 ppm|LEL: 0-100% and 0-5.0% v/v|O2: 0 to 30.0%
- Humidity Range : 0 to 95% RH (Non-Condensing) percent
- Minimum Temperature : -20|-20 degree Celsius
- Maximum Temperature : 50|50 degree Celsius
- Alarm Included : Yes
- Alarm Type : Audible, Visual, Vibrating
- Charging Time : 6 hours
- Battery Run Time : 18 Hours; Recharges in Less than 6 Hours hours
- Batteries Required : Yes
- Batteries Included : Yes
- Standards : ATEX: CE II 1 G. Ex ia IIC T4 Ga|CE European Conformity|CSA: Class I, Div 1, Group A, B, C, D|CSA: Class I, Div. 1- Gr. A, B, C, D|IECEx: Ex ia IIC T4 Ga
- Datalogging : 16 hours at 15-second intervals
- Display Type : LCD
- Display Readout : Real-Time Gas Concentrations Shown on LCD
- Display Included : Yes
- Features & Benefits : Compatible with Honeywell BW Connect for Real Time Monitoring|Device Management with Honeywell SafetySuite|Durable, Rechargeable Lithium Polymer Battery Tested to Last in Extreme Environments|Ergonomic and Wearable Doesn’t Weigh You Down|Guaranteed Runtime for at Least a 12-Hour Shift, Down To -20°C without Compromising LEL Detection of Hydrogen, Acetylene and Other Combustible Gases|IntelliFlash™ Light Indicating Detector has Been Bump Tested and is Monitoring Correctly|No manual checks, no time spent inspecting… just a quick visual scan of the area provides assurance all is well in minutes, not hours. So safety managers can spend more time on the job, not auditing equipment|User-Friendly Tamperproof Operation with Just One Button and Intuitive LCD Icons
- User Options : Combustible Gas Measurement (% LEL or % by Volume Methane)|Confidence beep|Force Calibration when Overdue|IntelliFlash™ Interval|Language Choices|Low Alarm Acknowledge|Set Custom Start Up Message|User-Settable Calibration Gas Level
- Number of Gas Sensors Included : 4
- Operating Life : 5 years
- Warranty : 3 Years
- Wireless Technology : BLE
- Software License : Device Management with Honeywell SafetySuite
- Ingress Protection : IP68
- Gas Type : H2S, CO, O2, LEL
- External Calibration : Compatible with IntelliDox Docking Station for Automated Bump Tests and Calibration
- Decibels : 95 decibel
- Combustible Concentration : 0-100% LEL
- Combustible : Yes
- Tests : Audible/Visual Alarms on Activation; Sensors, Battery and Circuitry (Continuous)
- Size : 4.4 x 2.4 x 1.2 in
- Sensor Life : 5 Years
- Resolution : CO: 1 ppm|H2S: 1 ppm|LEL: 1%, LEL 5.0% v/v 1 %|O2: 0.1%
- Power Source : Battery
- Model Number : Honeywell BW MicroClip X3
- Languages : English, French, German, Spanish, Portuguese
- Keypad Type : One Button Operation
- Housing Color : Yellow
- Gases Detected : O2, LEL, H2S, CO
- EMC/RFI : EMC Directive: 2004/108/EC
- Dust and Water Resistance : IP68
