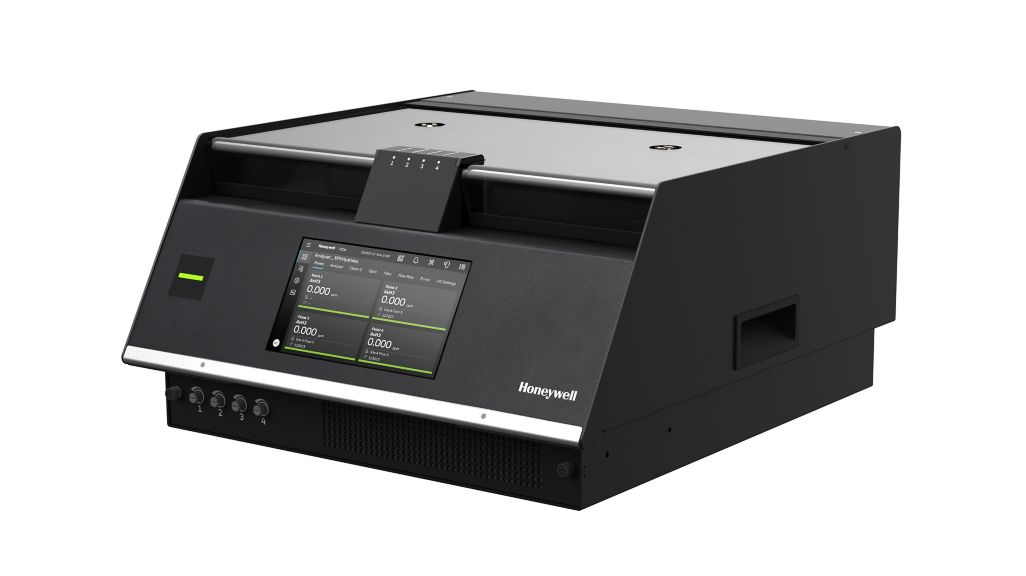

Toxic Gas Monitor VC4
Honeywell VC4 is based on colorimetric technology with more advanced andfriendly designs. It represents the latest in interference free, low maintenance, lowcost of ownership solution forthe semiconductor, pharmaceutical and chemicalindustries
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

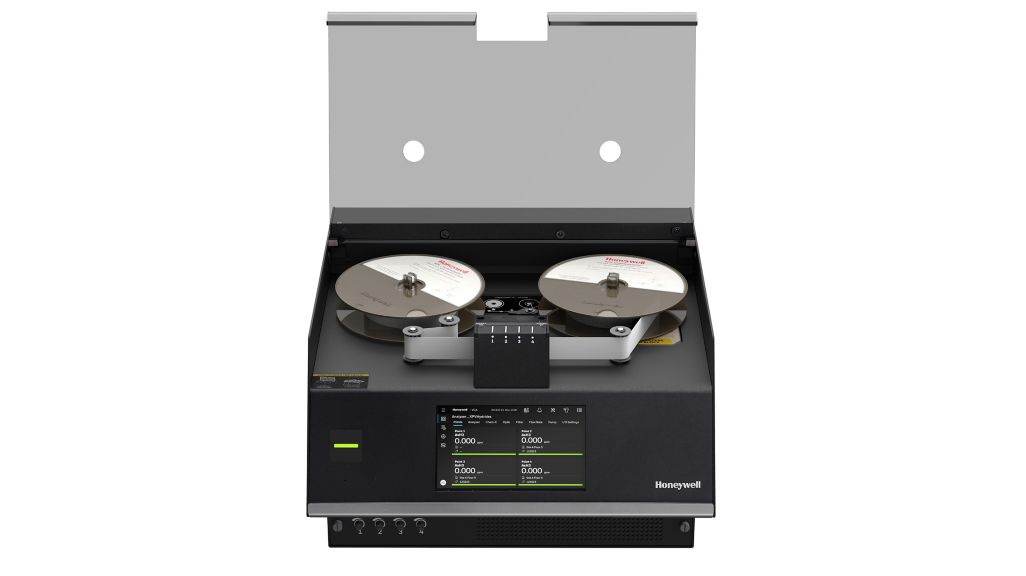

- Authentic Chemcassette® technology for enhance standard of accuracyChemcassette® technology, pioneered by Honeywell, delivers low-level gasdetection you can count on. The system detects highly toxic gases quickly anddefinitively – down to parts per billion (ppb)-as evidenced by a clear, easy-toviewstain on chemically treated tape.
- 4-point gas detection systemVC4 continuous monitoring on 4 Points, more economical and flexible.
- Shorter lead time, faster and more convenient technical response and spareparts supportVC4 is designed and manufactured in China, allowing for more stable, fast, andconvenient technical support.
- Faster gas leak response time. The sampling flow rate at each detection point improves to 2.8LPM for 120Msample line,improving the gas leak response time and can meet the latestTaiwan EPA requirements.
Even the best products deserve expert maintenance!
Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.
Explore our fixed, portable, and high-tech support services now!
Specifications
Dimensions & Weight
- Weight range
- ≤ 24.95kg
- ≤ 55lbs
Technical Specifications
- Output Signal Range
- Modbus TCP/IP: CAT5 shielded cable or equivalent (RJ45 connector) Modbus RTU: 2-wire stranded, shielded cable or equivalent (24-14 AWG) Serial outputs: DB9 connector Relay output: 24-14 AWG Current output: 24-14 AWG
- Humidity Range
- 20-80% RH
- Relay Output Configuration
- Relay contacts (500mA minimum) 2A @ 120VAC, form C contacts. Programmable low and high levels, maintenance, watch dog, energized or de-energized, latching or nonlatching
- Plug Type
- TCP/IP and RTU Modbus
Operating Characteristics
- Minimum Temperature
- 10° C
- 50° F
Configuration
- Maximum Temperature
- 104° F
- 40° C
Features
- Alarm Type
- Audible
- Visual
- Visual Indicators
- LED indicator: Normal (Green), Alarm 1 (Red), Alarm 2 (Red), Fault (Yellow)
Electrical Specifications
- Operating Current
- 110±10%VAC @ 50 / 60Hz; 220±10%VAC @ 50 / 60Hz
Dimensions & Weight
- Weight range
- ≤ 24.95kg
- ≤ 55lbs
Technical Specifications
- Output Signal Range
- Modbus TCP/IP: CAT5 shielded cable or equivalent (RJ45 connector) Modbus RTU: 2-wire stranded, shielded cable or equivalent (24-14 AWG) Serial outputs: DB9 connector Relay output: 24-14 AWG Current output: 24-14 AWG
- Humidity Range
- 20-80% RH
- Relay Output Configuration
- Relay contacts (500mA minimum) 2A @ 120VAC, form C contacts. Programmable low and high levels, maintenance, watch dog, energized or de-energized, latching or nonlatching
- Plug Type
- TCP/IP and RTU Modbus
Operating Characteristics
- Minimum Temperature
- 10° C
- 50° F
Configuration
- Maximum Temperature
- 104° F
- 40° C
Features
- Alarm Type
- Audible
- Visual
- Visual Indicators
- LED indicator: Normal (Green), Alarm 1 (Red), Alarm 2 (Red), Fault (Yellow)
Electrical Specifications
- Operating Current
- 110±10%VAC @ 50 / 60Hz; 220±10%VAC @ 50 / 60Hz
- Weight range : ≤ 24.95kg|≤ 55lbs
- Output Signal Range : Modbus TCP/IP: CAT5 shielded cable or equivalent (RJ45 connector) Modbus RTU: 2-wire stranded, shielded cable or equivalent (24-14 AWG) Serial outputs: DB9 connector Relay output: 24-14 AWG Current output: 24-14 AWG
- Humidity Range : 20-80% RH
- Minimum Temperature : 10° C|50° F
- Maximum Temperature : 104° F|40° C
- Alarm Type : Audible|Visual
- Relay Output Configuration : Relay contacts (500mA minimum) 2A @ 120VAC, form C contacts. Programmable low and high levels, maintenance, watch dog, energized or de-energized, latching or nonlatching
- Operating Current : 110±10%VAC @ 50 / 60Hz; 220±10%VAC @ 50 / 60Hz
- Visual Indicators : LED indicator: Normal (Green), Alarm 1 (Red), Alarm 2 (Red), Fault (Yellow)
- Plug Type : TCP/IP and RTU Modbus
