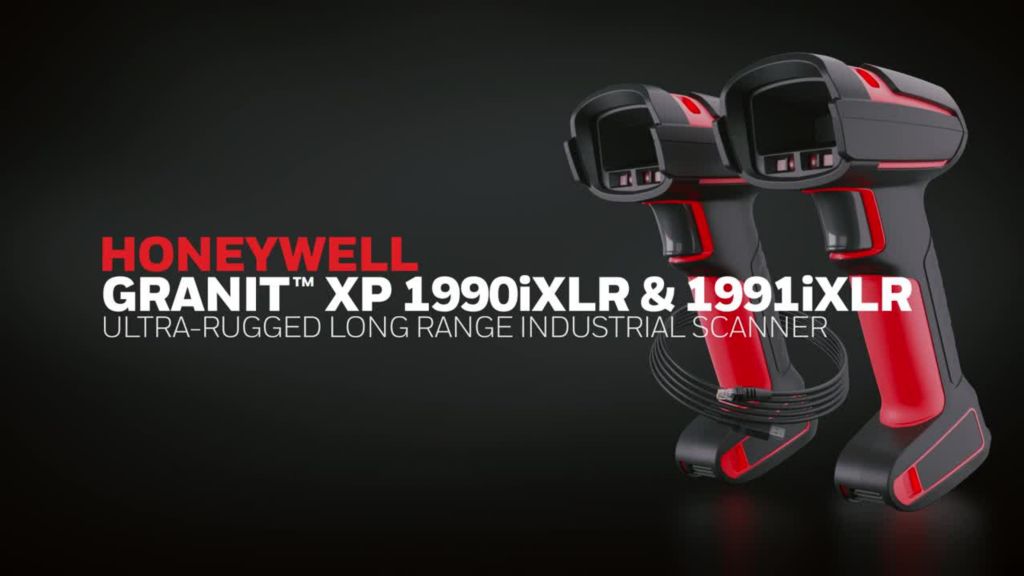

Granit XP 1990iXLR Ultra-Rugged Long Range Scanner
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
- The Granit™ XP XLR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes, plus maximum range scanning of UPC up to 2 m (6.6 ft) and 100 mil codes up to 24 m (79 ft).
- Granit™ XP provides premium performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit quickly.
- The XLR model provides superior indoor and outdoor aiming visibility. The brighter, more visible aimer offers more accurate, intuitive aiming across the typical range of lighting conditions. The daylight aiming system offers accurate aiming in bright sunlight.
- Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -30°C to 50°C (-22°F to 122°F) and IP67 sealing, Granit XLR helps reduce service costs and increases device uptime.
A 7,000 tumble specification helps ensure Granit™ scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment. Granit™ 1990iXLR model begins with no-sacrifice near field scanning and expand to read UPC codes to 2 m (6.6 ft) and 100 mil (2.54mm) rack labels at 24 m (79 ft). Packed with essential reliable aiming features, the XLR laser aimer is visible in multiple lighting conditions. The daylight aiming system offers accurate aiming in bright sunlight with an easy to view green aiming solution. Created for applications where far range high speed scanning is needed to maximize productivity, and where durability is non-negotiable to help lower total cost of ownership, the Granit™ XP 1990iXLR scanner offers the optimal solution.
Features
- Connectivity
- Corded
- Application
- Industrial Scanner
Dimensions
- Overall Dimensions
- 192 mm x 76 mm x 100 mm
- 7.6 in x 3.0 in x 3.9 in
Scanning Specifications
- Decode Capability
- 1D
- 2D
- Motion Tolerance
- Up to 4500 mm/s (177 in/s)
- Depth of Field
- XLR Range
- Scan Distance
- Long Range (0-20m)
- Scan Pattern
- Area Imager Far 1920 x 1080 pixel array
- Area Imager Near 1280 x 800 pixel array
- Brightness
- 0 to 100,000 lux
Network
- Bluetooth Specifications
- N/A
- Bluetooth
- No
Hardware
- Wireless
- No
- Host System Interface
- Keyboard Wedge
- RS-232 TTL
- USB
- Power Connector Type
- Corded
- Aimer Type
- Laser
Electrical
- Operating Power
- 2.35 W (470 mA @ 5 VDC)
- Smart Battery
- No
- Input Voltage
- 4.0 VDC to 5.5 VDC
Environmental
- Storage Temperature Range
- -40°C to 70°C
- -40°F to 158°F
- Operating Temperature
- -40°C to 70°C
- -4°F to 122°F
- Operating Humidity
- Up to 95% relative humidity (non-condensing)
Standards & Approvals
- Tumble Specifications
- 7,000 1 m (3.3 ft) tumbles
- Drop Specifications
- 2 m (6.5 ft): 50 dops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
- 2.4 m (8 ft): 20 drops at 25°C to 77°C (32°F to 122°F), 55% RH
- 3 m (10ft): MIL-STD-810G, 25°C (77°F), 55% RH
- Protection Ratings
- IP65
- IP67
- IP Rating
- IP65 / IP67
Service Terms
- Warranty Duration
- Three-year factory warranty
Features
- Connectivity
- Corded
- Application
- Industrial Scanner
Dimensions
- Overall Dimensions
- 192 mm x 76 mm x 100 mm
- 7.6 in x 3.0 in x 3.9 in
Scanning Specifications
- Decode Capability
- 1D
- 2D
- Motion Tolerance
- Up to 4500 mm/s (177 in/s)
- Depth of Field
- XLR Range
- Scan Distance
- Long Range (0-20m)
- Scan Pattern
- Area Imager Far 1920 x 1080 pixel array
- Area Imager Near 1280 x 800 pixel array
- Brightness
- 0 to 100,000 lux
Network
- Bluetooth Specifications
- N/A
- Bluetooth
- No
Hardware
- Wireless
- No
- Host System Interface
- Keyboard Wedge
- RS-232 TTL
- USB
- Power Connector Type
- Corded
- Aimer Type
- Laser
Electrical
- Operating Power
- 2.35 W (470 mA @ 5 VDC)
- Smart Battery
- No
- Input Voltage
- 4.0 VDC to 5.5 VDC
Environmental
- Storage Temperature Range
- -40°C to 70°C
- -40°F to 158°F
- Operating Temperature
- -40°C to 70°C
- -4°F to 122°F
- Operating Humidity
- Up to 95% relative humidity (non-condensing)
Standards & Approvals
- Tumble Specifications
- 7,000 1 m (3.3 ft) tumbles
- Drop Specifications
- 2 m (6.5 ft): 50 dops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
- 2.4 m (8 ft): 20 drops at 25°C to 77°C (32°F to 122°F), 55% RH
- 3 m (10ft): MIL-STD-810G, 25°C (77°F), 55% RH
- Protection Ratings
- IP65
- IP67
- IP Rating
- IP65 / IP67
Service Terms
- Warranty Duration
- Three-year factory warranty
- Connectivity : Corded
- Application : Industrial Scanner
- Overall Dimensions : 192 mm x 76 mm x 100 mm|7.6 in x 3.0 in x 3.9 in
- Decode Capability : 1D|2D
- Motion Tolerance : Up to 4500 mm/s (177 in/s)
- Depth of Field : XLR Range
- Scan Distance : Long Range (0-20m)
- Scan Pattern : Area Imager Far 1920 x 1080 pixel array|Area Imager Near 1280 x 800 pixel array
- Brightness : 0 to 100,000 lux
- Bluetooth Specifications : N/A
- Bluetooth : No
- Wireless : No
- Host System Interface : Keyboard Wedge|RS-232 TTL|USB
- Power Connector Type : Corded
- Aimer Type : Laser
- Operating Power : 2.35 W (470 mA @ 5 VDC)
- Smart Battery : No
- Input Voltage : 4.0 VDC to 5.5 VDC
- Storage Temperature Range : -40°C to 70°C|-40°F to 158°F
- Operating Temperature : -40°C to 70°C|-4°F to 122°F
- Operating Humidity : Up to 95% relative humidity (non-condensing)
- Tumble Specifications : 7,000 1 m (3.3 ft) tumbles
- Drop Specifications : 2 m (6.5 ft): 50 dops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH|2.4 m (8 ft): 20 drops at 25°C to 77°C (32°F to 122°F), 55% RH|3 m (10ft): MIL-STD-810G, 25°C (77°F), 55% RH
- Protection Ratings : IP65|IP67
- IP Rating : IP65 / IP67
- Warranty Duration : Three-year factory warranty
