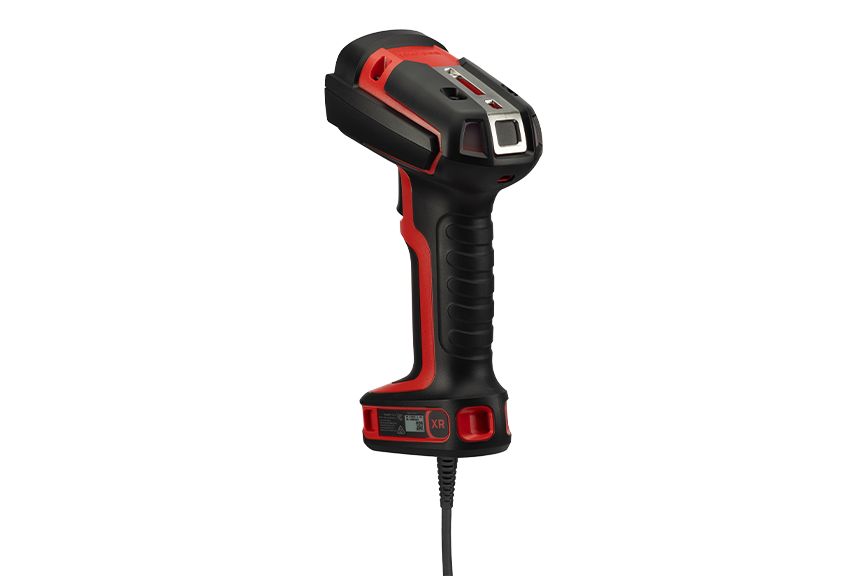

Rugged Handheld
Granit Ultra 2100i
Granit Ultra scanners offer ultra scan performance, ultra durability, and ultra ease of use for premium productivity in rugged scanning applications from contact up to arm length (SR model) or 10m(33”) for 100mil C39 symbols (XR model).
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Granit Ultra scanners expand capabilities and define the next generation of ultra-rugged scanning. ULTRA SCAN PERFORMANCE For a scanner to optimize productivity, it should read and transmit common barcodes nearly as fast as the user can pull the trigger, and Granit Ultra is engineered to do just that. Granit Ultra integrates high speed processing, AI algorithms, and decoding enhancements to result in an average 45% scanning speed increase vs. Granit XP*, enabling improved productivity. ULTRA DURABILITY In modern warehouse, distribution center, and manufacturing environments, any scanner must be durable enough to survive harsh operating conditions. Under exactly that kind of rough treatment, Honeywell Granit Ultra is ready to deliver. ULTRA EASE OF USE Ready to operate right out of the box for many applications, Granit offers easy custom configuration in the time it takes to scan a barcode. For further workflow improvement, Granit can also read multiple codes in the field of view, organizing and outputting the data in a predefined order using Honeywell’s Data Format Editor.
Specifications
Dimensions
- Overall Dimensions
- 194.8mm x 75.8mm x 139.5mm (7.7 in x 3.0 in x 5.5 in)
Scanning Specifications
- Decode Capability
- 1D, 2D
- Motion Tolerance
- Up to 4m/s (157in/s)
- Depth of Field
- SR: 20mil C128: 0 to 1033mm/0 to 40.67in
- XR:20mil C128: 0 to 2812mm/0 to 110.71in
- Scan Pattern
- Area imager
- Brightness
- 0 to 100,000 lux (9,290 foot-candles
Hardware
- Wireless
- No
- Host System Interface
- USB, Serial, KBW
- Engine Type
- Area imager
- Aimer Type
- Green 520nm laser
- Green 525nm LED
Environmental
- Storage Temperature Range
- -40°C to 70°C (-40°F to 158°F)
- Operating Humidity
- Up to 95% RH, non-condensing
Standards & Approvals
- Tumble Specifications
- 7500 at 1m (3')
- Drop Specifications
- 3m (10ft) MIL-STD-810G, 25C (77F), 55% RH
Others
- Form Factor
- Handheld scanner
- Application
- Package Shipping, Receiving, Putaway, Replenishment, Picking, Packing, Shipping
- Operating Power
- USB 2.0: 2.15W (430mA), other interfaces 2.75W (550mA)
- Input Voltage
- 4 to 5.5VDC
- Operating Temperature
- -30°C to 50°C (-22°F to 122°F)
- Warranty Duration
- 3 years
- Scan Distance
- Mid Range (0-5m)
- Standard Range (0-1m)
- Connectivity
- Corded
- IP Rating
- IP65 / IP68
Dimensions
- Overall Dimensions
- 194.8mm x 75.8mm x 139.5mm (7.7 in x 3.0 in x 5.5 in)
Scanning Specifications
- Decode Capability
- 1D, 2D
- Motion Tolerance
- Up to 4m/s (157in/s)
- Depth of Field
- SR: 20mil C128: 0 to 1033mm/0 to 40.67in
- XR:20mil C128: 0 to 2812mm/0 to 110.71in
- Scan Pattern
- Area imager
- Brightness
- 0 to 100,000 lux (9,290 foot-candles
Hardware
- Wireless
- No
- Host System Interface
- USB, Serial, KBW
- Engine Type
- Area imager
- Aimer Type
- Green 520nm laser
- Green 525nm LED
Environmental
- Storage Temperature Range
- -40°C to 70°C (-40°F to 158°F)
- Operating Humidity
- Up to 95% RH, non-condensing
Standards & Approvals
- Tumble Specifications
- 7500 at 1m (3')
- Drop Specifications
- 3m (10ft) MIL-STD-810G, 25C (77F), 55% RH
Others
- Form Factor
- Handheld scanner
- Application
- Package Shipping, Receiving, Putaway, Replenishment, Picking, Packing, Shipping
- Operating Power
- USB 2.0: 2.15W (430mA), other interfaces 2.75W (550mA)
- Input Voltage
- 4 to 5.5VDC
- Operating Temperature
- -30°C to 50°C (-22°F to 122°F)
- Warranty Duration
- 3 years
- Scan Distance
- Mid Range (0-5m)
- Standard Range (0-1m)
- Connectivity
- Corded
- IP Rating
- IP65 / IP68
- Form Factor : Handheld scanner
- Application : Package Shipping, Receiving, Putaway, Replenishment, Picking, Packing, Shipping
- Overall Dimensions : 194.8mm x 75.8mm x 139.5mm (7.7 in x 3.0 in x 5.5 in)
- Decode Capability : 1D, 2D
- Motion Tolerance : Up to 4m/s (157in/s)
- Depth of Field : SR: 20mil C128: 0 to 1033mm/0 to 40.67in|XR:20mil C128: 0 to 2812mm/0 to 110.71in
- Scan Pattern : Area imager
- Brightness : 0 to 100,000 lux (9,290 foot-candles
- Wireless : No
- Host System Interface : USB, Serial, KBW
- Engine Type : Area imager
- Aimer Type : Green 520nm laser|Green 525nm LED
- Operating Power : USB 2.0: 2.15W (430mA), other interfaces 2.75W (550mA)
- Input Voltage : 4 to 5.5VDC
- Storage Temperature Range : -40°C to 70°C (-40°F to 158°F)
- Operating Temperature : -30°C to 50°C (-22°F to 122°F)
- Operating Humidity : Up to 95% RH, non-condensing
- Tumble Specifications : 7500 at 1m (3')
- Drop Specifications : 3m (10ft) MIL-STD-810G, 25C (77F), 55% RH
- Warranty Duration : 3 years
- Scan Distance : Mid Range (0-5m)|Standard Range (0-1m)
- Connectivity : Corded
- IP Rating : IP65 / IP68
