Fixed Mount
HF811
The HF810 offers powerful performance including DPM reading and 2MP resolution in an industrial hardware design that can be networked to build a complete scanning solution.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

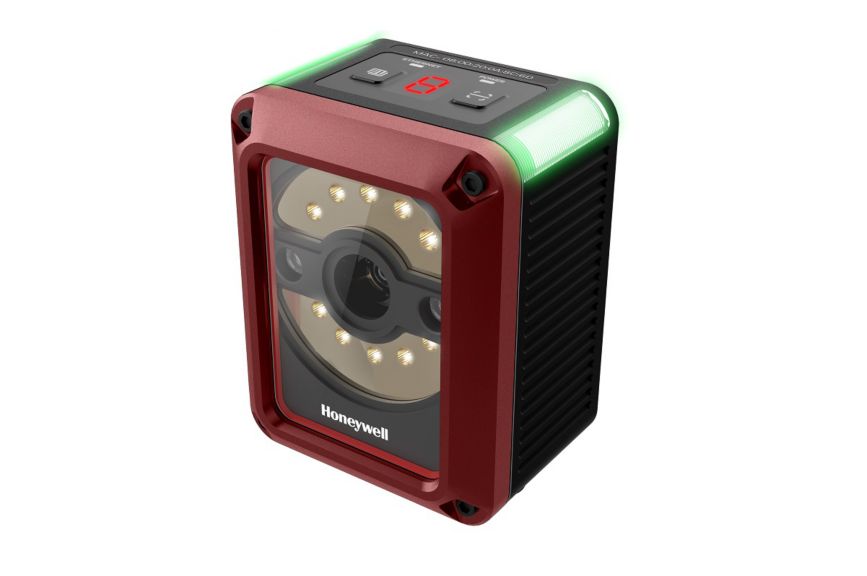

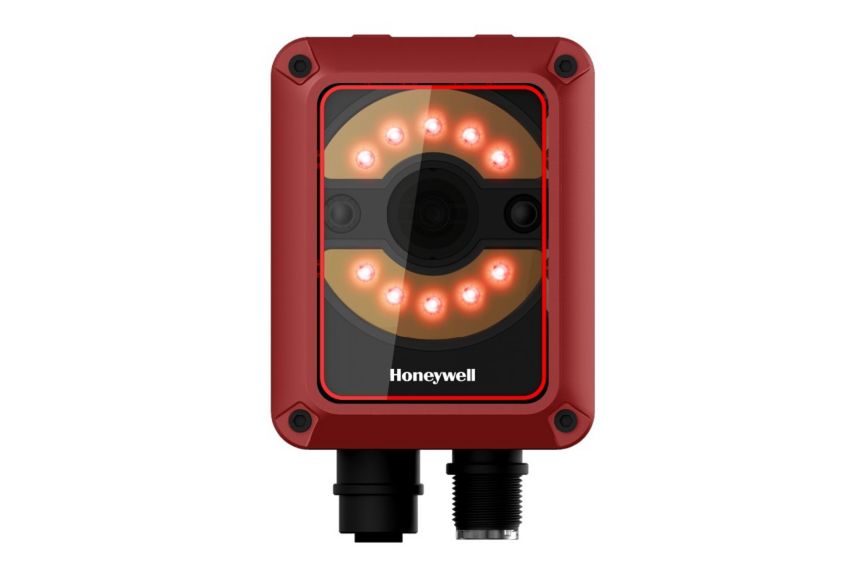

With Honeywell’s state-of-the-art technology in encoding and decoding, HF811 Fixed-mount 2D Industrial Scanner offers powerful performance, including DPM capabilities, in a compact form factor that can be networked to build a complete manufacturing or warehouse management solution for end users.
Specifications
Features
- Features
- Network ready
- For Use With
- Auxiliary handheld scanners
- Connectivity
- Corded
- Form Factor
- Slot Scanner
- Application
- Industrial Fixed Mount
Dimensions
- Overall Dimensions
- (H x W x D): 70 mm x 55 mm x 45 mm
Scanning Specifications
- Decode Capability
- 1D
- 2D (QR, Datamatrix, Maxicode, Aztec)
- DPM
- PDF417
- Depth of Field
- 0-1000 mm
- Scan Distance
- Standard Range (0-1m)
- Scan Pattern
- 2D imager
- Brightness
- 0-100k lux
Network
- Communication Protocols
- Field Bus Protocol (Profinet, EthernetIP, Modbus TCP) voltage alternating current
- RS232 voltage alternating current
- RS485 voltage alternating current
- TCP/IP voltage alternating current
Hardware
- Host System Interface
- Ethernet, RS232, RS485
- Power Connector Type
- M12
- Wireless
- No
Electrical
- Input Voltage
- 10-26.5 volts
Environmental
- Storage Temperature Range
- -20˚C to 70˚C
- Operating Temperature
- 0°C to 50°C
- Operating Humidity
- 0 to 95% relative humidity non-condensing
Standards & Approvals
- Protection Ratings
- IP65
- IP Rating
- IP65
Service Terms
- Warranty Duration
- 3 years
Others
- Industry
- Logistics & Warehouses
- Manufacturing
- Retail
Features
- Features
- Network ready
- For Use With
- Auxiliary handheld scanners
- Connectivity
- Corded
- Form Factor
- Slot Scanner
- Application
- Industrial Fixed Mount
Dimensions
- Overall Dimensions
- (H x W x D): 70 mm x 55 mm x 45 mm
Scanning Specifications
- Decode Capability
- 1D
- 2D (QR, Datamatrix, Maxicode, Aztec)
- DPM
- PDF417
- Depth of Field
- 0-1000 mm
- Scan Distance
- Standard Range (0-1m)
- Scan Pattern
- 2D imager
- Brightness
- 0-100k lux
Network
- Communication Protocols
- Field Bus Protocol (Profinet, EthernetIP, Modbus TCP) voltage alternating current
- RS232 voltage alternating current
- RS485 voltage alternating current
- TCP/IP voltage alternating current
Hardware
- Host System Interface
- Ethernet, RS232, RS485
- Power Connector Type
- M12
- Wireless
- No
Electrical
- Input Voltage
- 10-26.5 volts
Environmental
- Storage Temperature Range
- -20˚C to 70˚C
- Operating Temperature
- 0°C to 50°C
- Operating Humidity
- 0 to 95% relative humidity non-condensing
Standards & Approvals
- Protection Ratings
- IP65
- IP Rating
- IP65
Service Terms
- Warranty Duration
- 3 years
Others
- Industry
- Logistics & Warehouses
- Manufacturing
- Retail
- Features : Network ready
- For Use With : Auxiliary handheld scanners
- Connectivity : Corded
- Form Factor : Slot Scanner
- Application : Industrial Fixed Mount
- Overall Dimensions : (H x W x D): 70 mm x 55 mm x 45 mm
- Decode Capability : 1D|2D (QR, Datamatrix, Maxicode, Aztec)|DPM|PDF417
- Depth of Field : 0-1000 mm
- Scan Distance : Standard Range (0-1m)
- Scan Pattern : 2D imager
- Brightness : 0-100k lux
- Communication Protocols : Field Bus Protocol (Profinet, EthernetIP, Modbus TCP) voltage alternating current|RS232 voltage alternating current|RS485 voltage alternating current|TCP/IP voltage alternating current
- Host System Interface : Ethernet, RS232, RS485
- Power Connector Type : M12
- Wireless : No
- Input Voltage : 10-26.5 volts
- Storage Temperature Range : -20˚C to 70˚C
- Operating Temperature : 0°C to 50°C
- Operating Humidity : 0 to 95% relative humidity non-condensing
- Protection Ratings : IP65
- IP Rating : IP65
- Warranty Duration : 3 years
- Industry : Logistics & Warehouses|Manufacturing|Retail
Data Sheet
Name
Description
File Size
Date
Size
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
Manuals and Guides
Name
Description
File Size
Date
Size
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
User Guide: Network and Security for Honeywell Scanners (NS-SC-EN-SG-01 Rev A)
application/pdf 1.17 MB
4/21/2025
1.17 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
8/4/2025
1.16 MB
Regulatory Information
Name
Description
File Size
Date
Size
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Name
Description
File Size
Date
Size
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
User Guide: Network and Security for Honeywell Scanners (NS-SC-EN-SG-01 Rev A)
application/pdf 1.17 MB
4/21/2025
1.17 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
8/4/2025
1.16 MB
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Name
Date
Size
10/14/2022
Please sign in to view part numbers available for purchase based on your account Sign In
Showing 1 to 10 of 14 parts
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
HF810-01BT00004K-R
KIT,2MP,N FOV,B LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-01BT00004K-R
KIT,2MP,N FOV,B LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-01RT00004K-R
KIT,2MP,N FOV,R LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-01RT00004K-R
KIT,2MP,N FOV,R LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-01WT00004K-R
KIT,2MP,N FOV,W LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-01WT00004K-R
KIT,2MP,N FOV,W LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-11BT00004K-R
KIT,2MP,W FOV,B LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-11BT00004K-R
KIT,2MP,W FOV,B LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-11RT00004K-R
KIT,2MP,W FOV,R LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-11RT00004K-R
KIT,2MP,W FOV,R LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-11WT00004K-R
KIT,2MP,W FOV,W LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF810-11WT00004K-R
KIT,2MP,W FOV,W LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF811-01BT00004K-R
2-megapixel host suite, narrow field of view, blue light source
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF811-01BT00004K-R
2-megapixel host suite, narrow field of view, blue light source
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF811-01RT00004K-R
KIT,0.5MP,N FOV,R LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF811-01RT00004K-R
KIT,0.5MP,N FOV,R LGT,T,HORIZONTAL,E2R
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF811-01WT00004K-R
2-megapixel host suite, narrow field of view, white light source
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF811-01WT00004K-R
2-megapixel host suite, narrow field of view, white light source
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF811-11BT00004K-R
2-megapixel host suite with wide field of view, blue light source
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
HF811-11BT00004K-R
2-megapixel host suite with wide field of view, blue light source
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf811-primary
