Fixed Mount

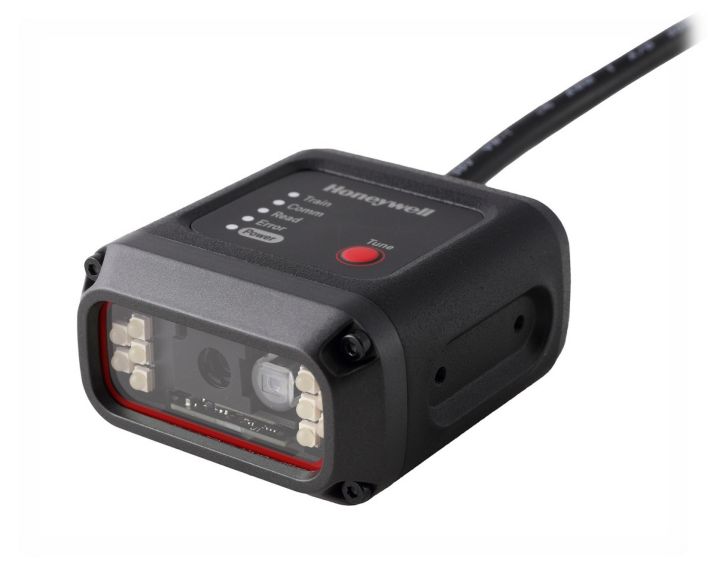

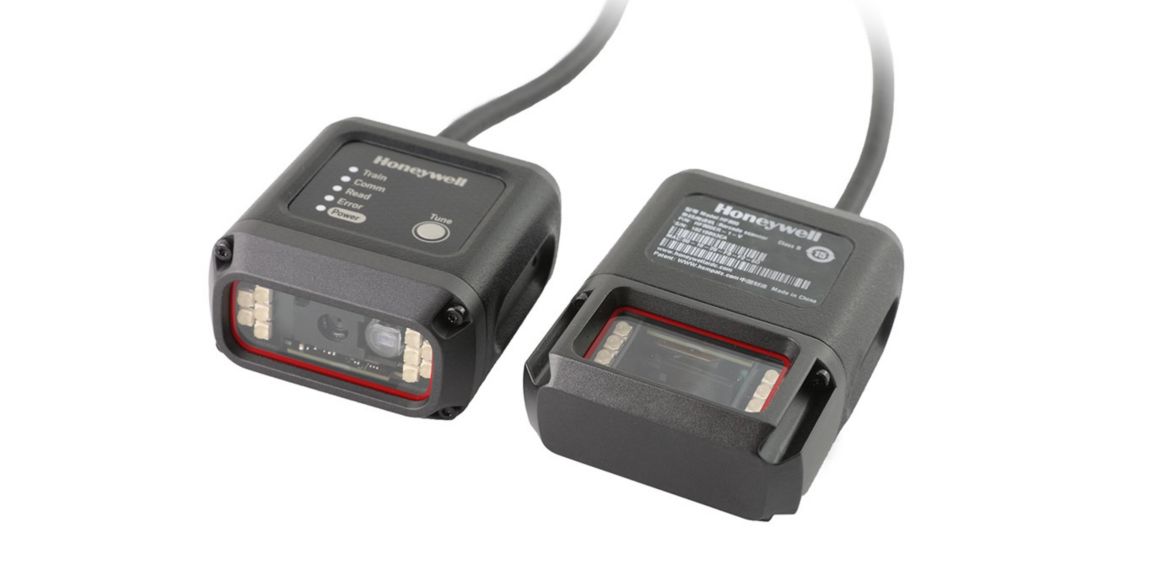

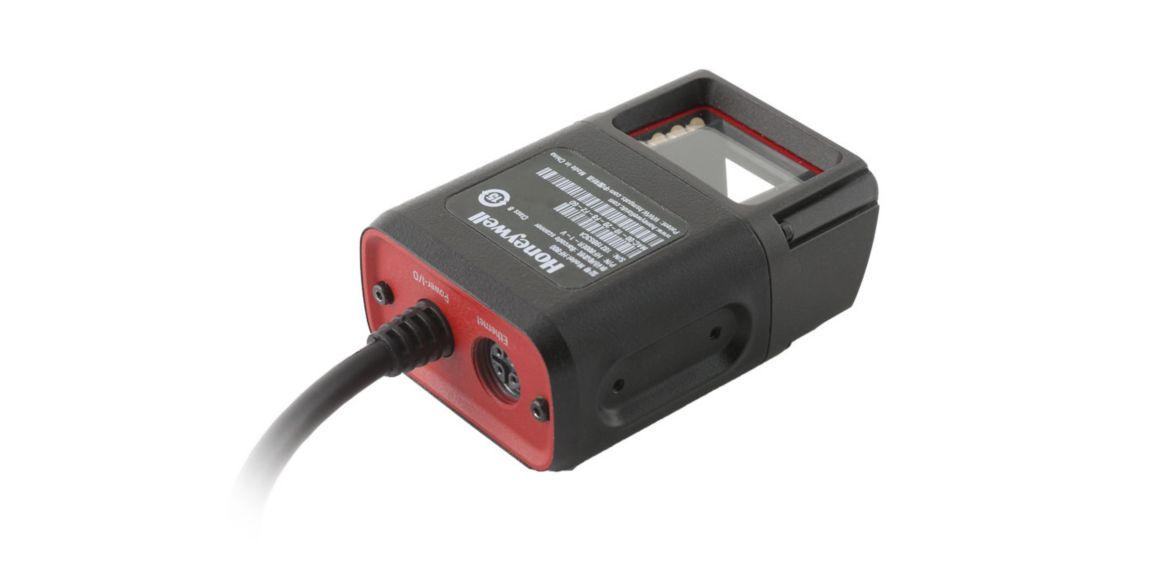

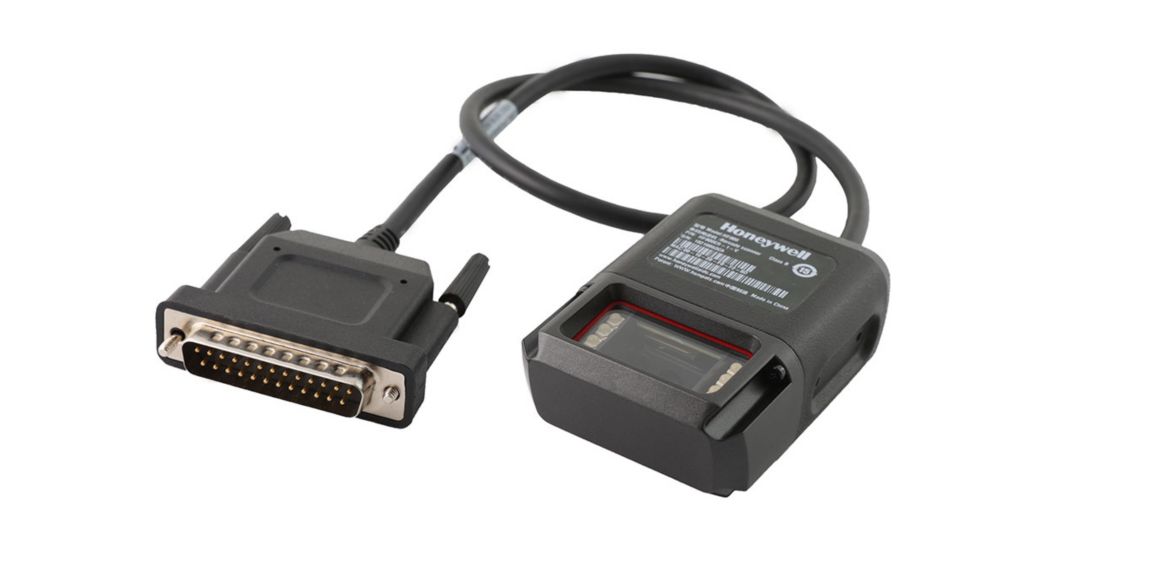

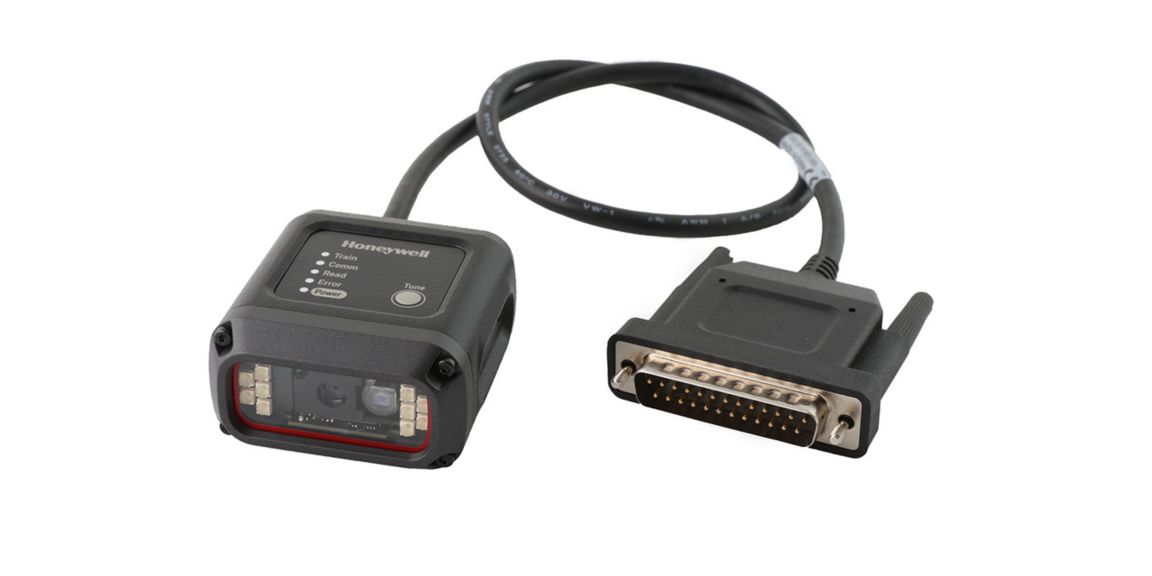

HF800
The HF800 is a Fixed-mount scanner with DPM capability in a compact design that fits multiple workflows.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
With Honeywell's state-of-the-art technology in encodeing and decoding, the HF800 fixed-mount 2D industrial scanner enables a wide array of high-performance scanning applications. Powerful barcode reading algorithm and industrial hardware design contribute to the high decoding efficiency of the HF800. Quick and easy configuration enables optimized reading with one click. Flexible accessory options and software configurations enable high-performance scanning in a wide array of settings and environments in a more economic way.
Specifications
Features
- Features
- Integrated LED illumination
Dimensions
- Overall Dimensions
- 54.5x52.5x29mm
Scanning Specifications
- Decode Capability
- 1D Barcode
- 2D Barcodes
- Aztec
- DPM
- Datamatrix
- Maxicode
- PDF417
- QR Code
- Motion Tolerance
- 2.5 m/s
- Scanning Range
- 22-480 mm
- Scan Pattern
- square
Hardware
- Host System Interface
- Ethernet
- RS-232
- RS485
- Engine Type
- 2D
Environmental
- Storage Temperature Range
- -20˚C to 70˚C
- Operating Humidity
- <90%
Standards & Approvals
- Protection Ratings
- IP65
Others
- For Use With
- Auxiliary external illumination
- Form Factor
- Compact industrial scanner
- Application
- Fixed-Mount Scanning
- Industrial Scanning
- Operating Current
- Max 5A
- Standby Current
- 5mA
- Input Voltage
- 10Vdc-30Vdc
- Operating Temperature
- 0-50˚C
- Warranty Duration
- 3 years
- Brand
- Honeywell
- Power Connector Type
- 100V AC to 240V AC, 50Hz to 60HzRS-232
- Scan Distance
- Standard Range (0-1m)
- Connectivity
- Corded
- IP Rating
- IP65
Features
- Features
- Integrated LED illumination
Dimensions
- Overall Dimensions
- 54.5x52.5x29mm
Scanning Specifications
- Decode Capability
- 1D Barcode
- 2D Barcodes
- Aztec
- DPM
- Datamatrix
- Maxicode
- PDF417
- QR Code
- Motion Tolerance
- 2.5 m/s
- Scanning Range
- 22-480 mm
- Scan Pattern
- square
Hardware
- Host System Interface
- Ethernet
- RS-232
- RS485
- Engine Type
- 2D
Environmental
- Storage Temperature Range
- -20˚C to 70˚C
- Operating Humidity
- <90%
Standards & Approvals
- Protection Ratings
- IP65
Others
- For Use With
- Auxiliary external illumination
- Form Factor
- Compact industrial scanner
- Application
- Fixed-Mount Scanning
- Industrial Scanning
- Operating Current
- Max 5A
- Standby Current
- 5mA
- Input Voltage
- 10Vdc-30Vdc
- Operating Temperature
- 0-50˚C
- Warranty Duration
- 3 years
- Brand
- Honeywell
- Power Connector Type
- 100V AC to 240V AC, 50Hz to 60HzRS-232
- Scan Distance
- Standard Range (0-1m)
- Connectivity
- Corded
- IP Rating
- IP65
- For Use With : Auxiliary external illumination
- Form Factor : Compact industrial scanner
- Application : Fixed-Mount Scanning|Industrial Scanning
- Features : Integrated LED illumination
- Overall Dimensions : 54.5x52.5x29mm
- Decode Capability : 1D Barcode|2D Barcodes|Aztec|DPM|Datamatrix|Maxicode|PDF417|QR Code
- Motion Tolerance : 2.5 m/s
- Scanning Range : 22-480 mm
- Scan Pattern : square
- Host System Interface : Ethernet|RS-232|RS485
- Engine Type : 2D
- Operating Current : Max 5A
- Standby Current : 5mA
- Input Voltage : 10Vdc-30Vdc
- Storage Temperature Range : -20˚C to 70˚C
- Operating Temperature : 0-50˚C
- Operating Humidity : <90%
- Protection Ratings : IP65
- Warranty Duration : 3 years
- Brand : Honeywell
- Power Connector Type : 100V AC to 240V AC, 50Hz to 60HzRS-232
- Scan Distance : Standard Range (0-1m)
- Connectivity : Corded
- IP Rating : IP65
