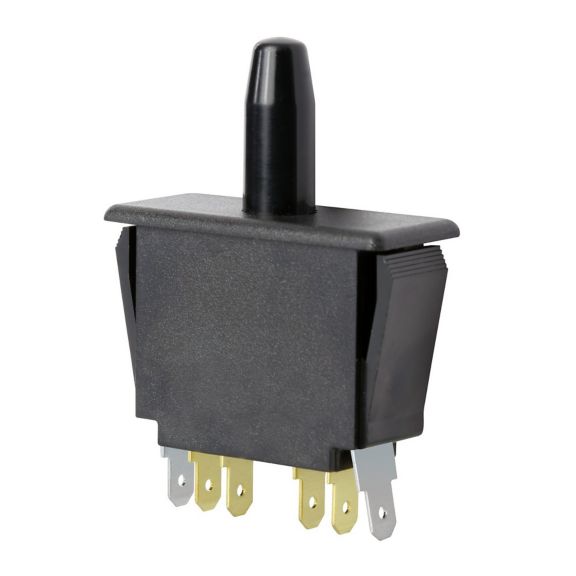

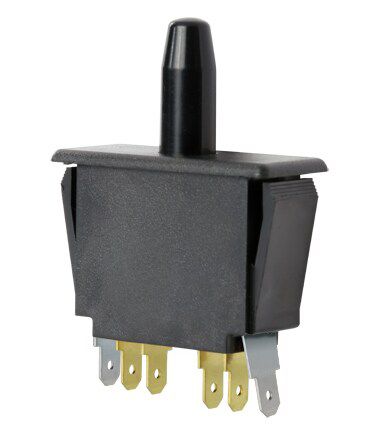

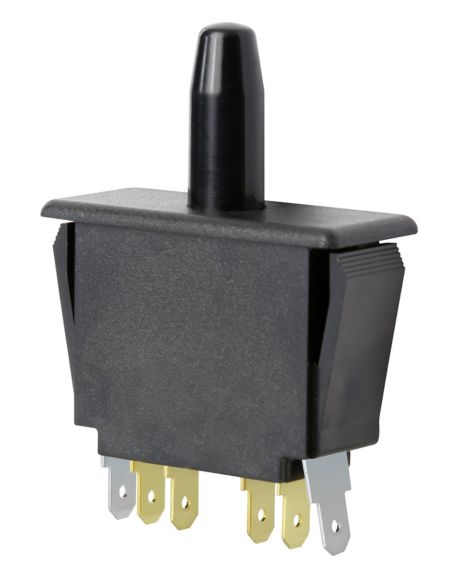

MICRO SWITCH DM 시리즈 스냅인 패널 장착 스위치, 쌍극 쌍투(DPDT) 회로, 277Vac에서 10A, 불렛 노즈 플런저 액추에이터
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명
MICRO SWITCH DM/DP 기본 스위치는 소형 경량 설계와 정확한 반복성이 특징입니다. DM/DP 시리즈는 순간 푸시 풀(push-pull) 및 풀 투 치트(pull-to-cheat) 구성을 갖는 특수 분야용 정밀 스위치입니다. 빠른 연결 단자 및 스냅 인 패널 장착 하우징은 설치를 용이하게 합니다. 표준 빠른 연결 단자(4.78mm x 0.51mm[0.188in x 0.020in]) 외에 더 큰 6.35mm x 0.81mm[0.25in x 0.032in] 빠른 연결 단자가 제공될 수 있습니다.
기능
- 우수하고 견고한 스냅 인 패널 장착 설계 - 손쉬운 설치
- 순간, 교차 푸시풀 또는 풀투치트 작동 중에서 선택
- 빠른 연결 단자
- 예상 기계적 수명: 1백만 회 작동, 95% 생존
- UL 인증 파일 #E22779, CSA 승인 파일 #LR4442
제품 응용 분야
- 어플라이언스 도어 조명
- 도어 인터록
- 정지/시작 스위치
데이터시트
