Systevo Legacy
Call unit
Call unit for call activation for connection to an electronic module or room terminal via a passive input.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명
This product is no longer available
Part Number: 73075A

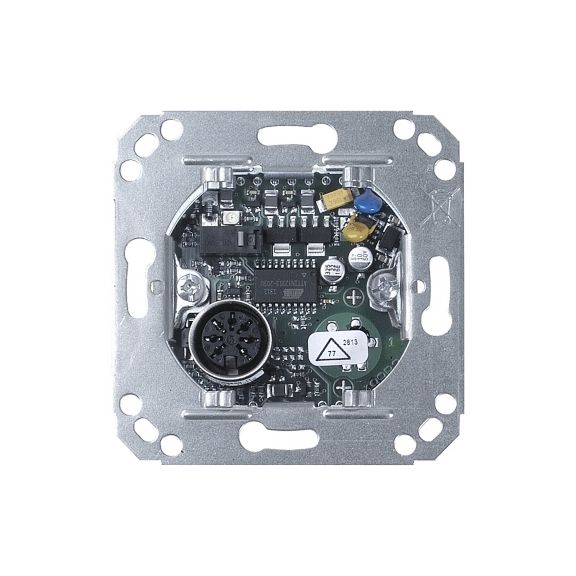

Call unit for call activation for connection to an electronic module or room terminal via a passive input. Movable call units, such as handheld switches and multiple buttons are connected to the plug-in contacts (7-pole). Display of the overriding room code with call activation. Monitoring of the connected call units (call group monitoring).
Features
- 1 call push-button
- 1 LED orientation and reassurance lamp (red)
- 1 monitored 7-pin plug
Scope of delivery
Call push-button, threadless connection terminals.
Accessories
88881L3N - Cover plate with push-button (red) and units with 1 socket.
명세서
Features
- Features
- 1 Call Push-Button
- 1 LED Orientation Lamp/Re-Assurance Lamp (Red)
- 1 Monitored 7-Pin Plug
- Packing unit
- Call Push-Button
- Threadless Connection Terminals
Standards & Certifications
- Type Of Protection
- IP40 (When Installed Inclusive Suitable Cover Plate)
Applications & Compatibility
- For Use With
- Call Activation for Connection to an Electronic Module or Room Terminal
Dimensions & Weight
- Dimensions
- W: 71 mm H: 71 mm
Technical Specifications
- Mounting
- Flush (DIN 49073)
Features
- Features
- 1 Call Push-Button
- 1 LED Orientation Lamp/Re-Assurance Lamp (Red)
- 1 Monitored 7-Pin Plug
- Packing unit
- Call Push-Button
- Threadless Connection Terminals
Standards & Certifications
- Type Of Protection
- IP40 (When Installed Inclusive Suitable Cover Plate)
Applications & Compatibility
- For Use With
- Call Activation for Connection to an Electronic Module or Room Terminal
Dimensions & Weight
- Dimensions
- W: 71 mm H: 71 mm
Technical Specifications
- Mounting
- Flush (DIN 49073)
- Features : 1 Call Push-Button|1 LED Orientation Lamp/Re-Assurance Lamp (Red)|1 Monitored 7-Pin Plug
- Type Of Protection : IP40 (When Installed Inclusive Suitable Cover Plate)
- Packing unit : Call Push-Button|Threadless Connection Terminals
- For Use With : Call Activation for Connection to an Electronic Module or Room Terminal
- Dimensions : W: 71 mm H: 71 mm
- Mounting : Flush (DIN 49073)
