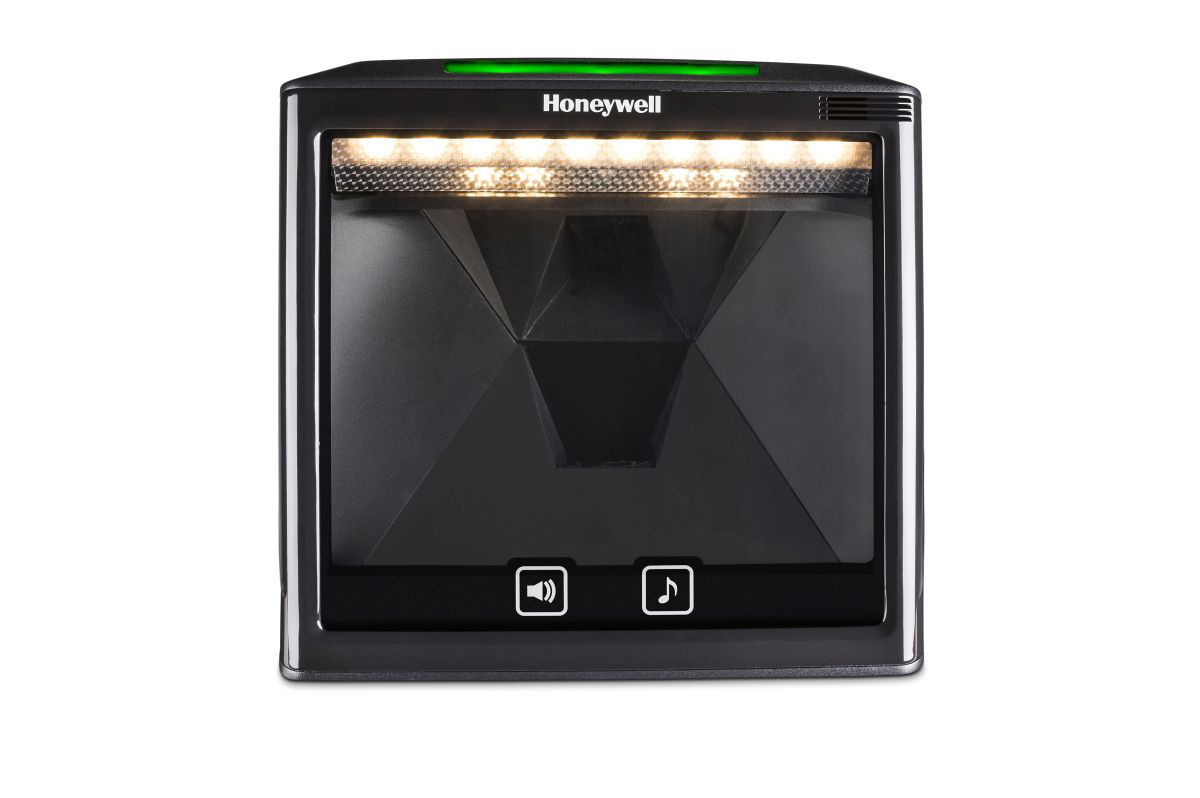

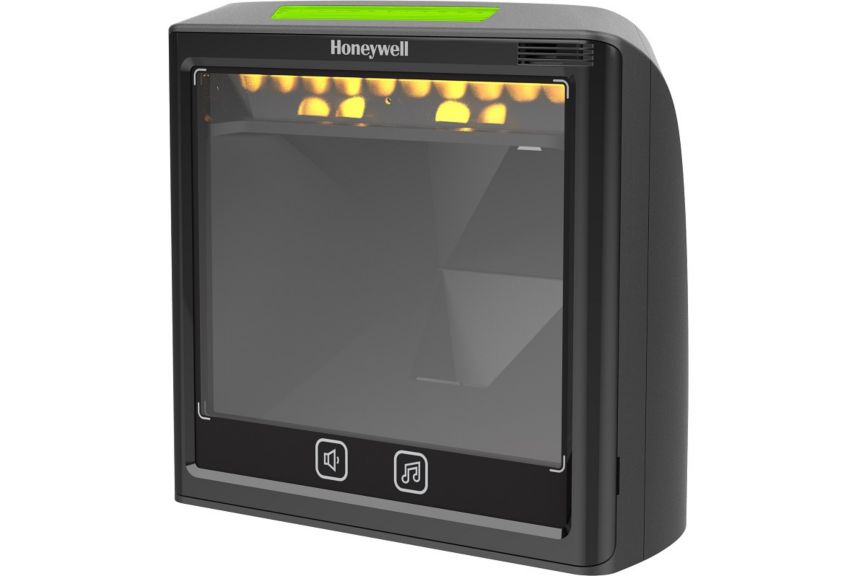

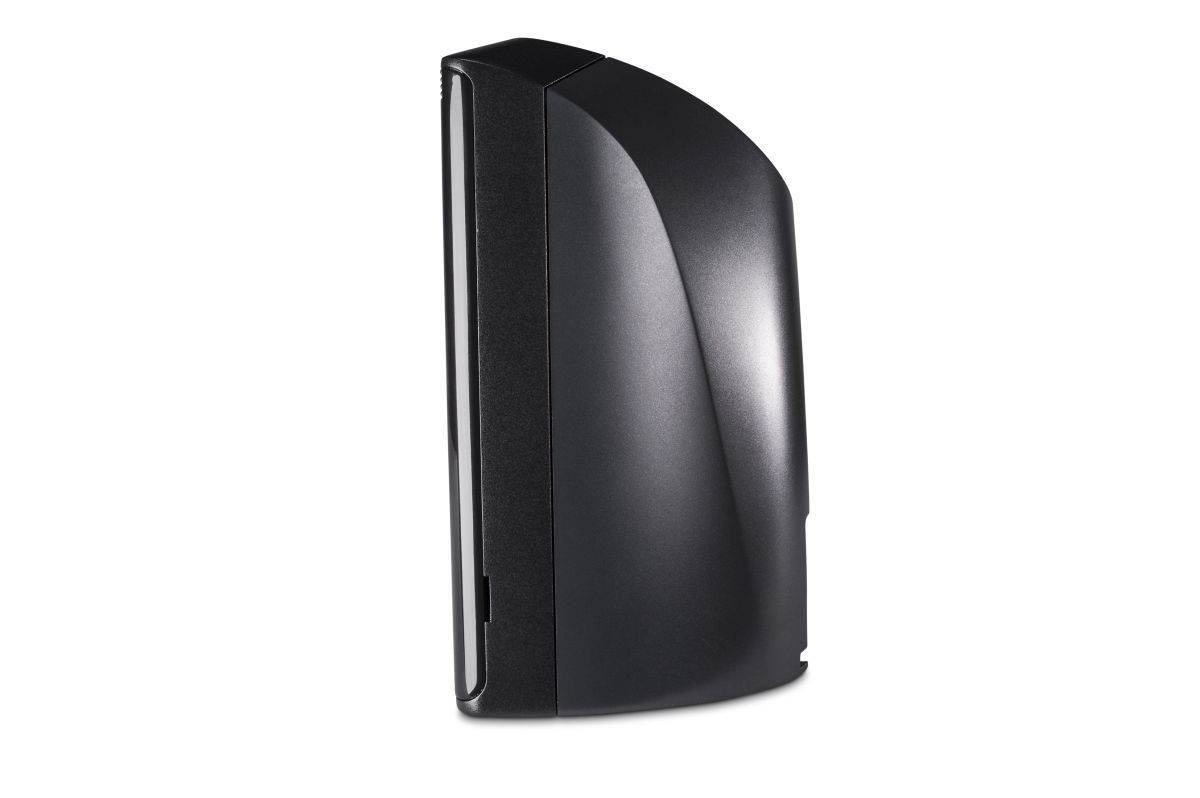

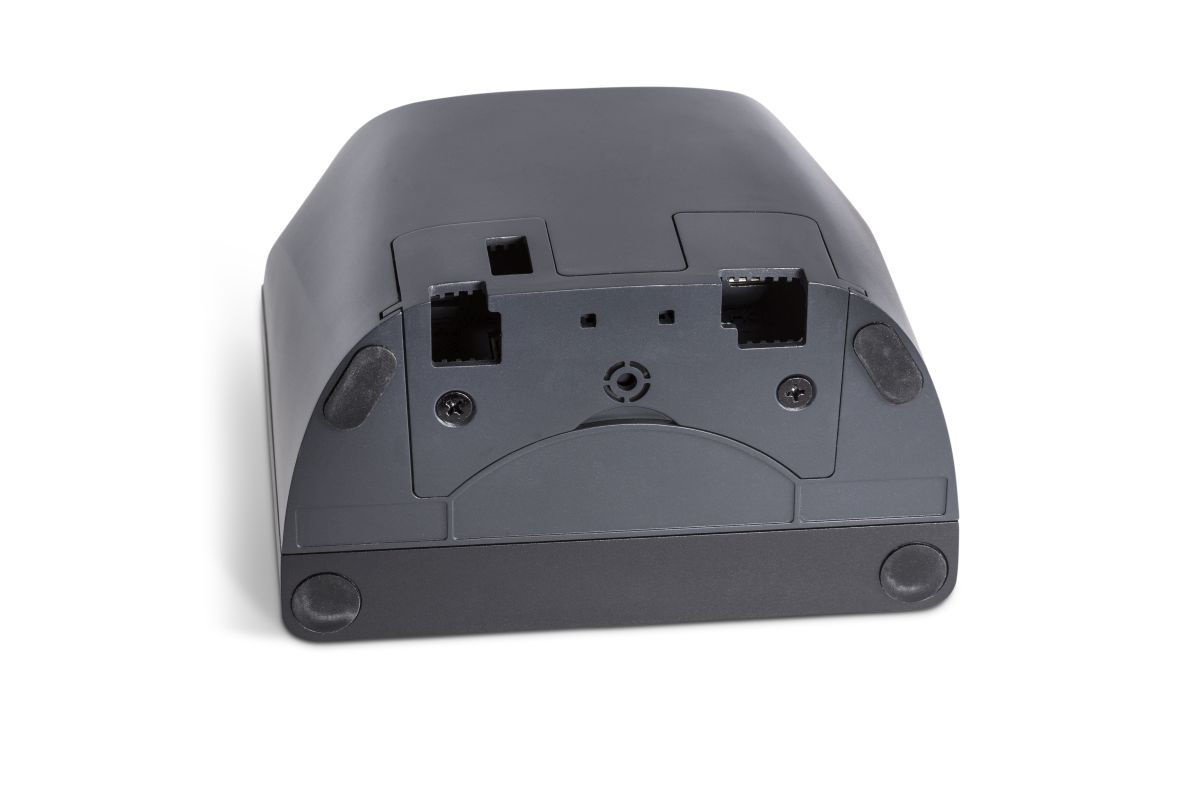

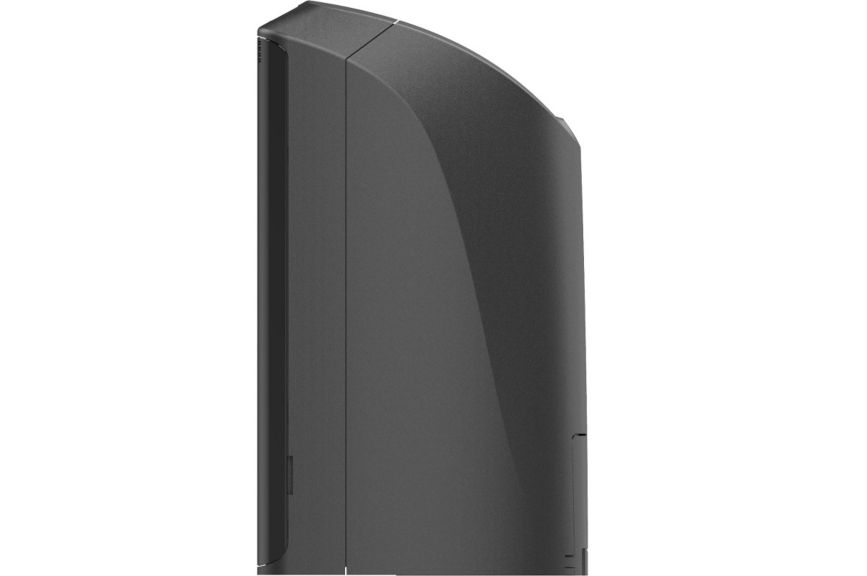

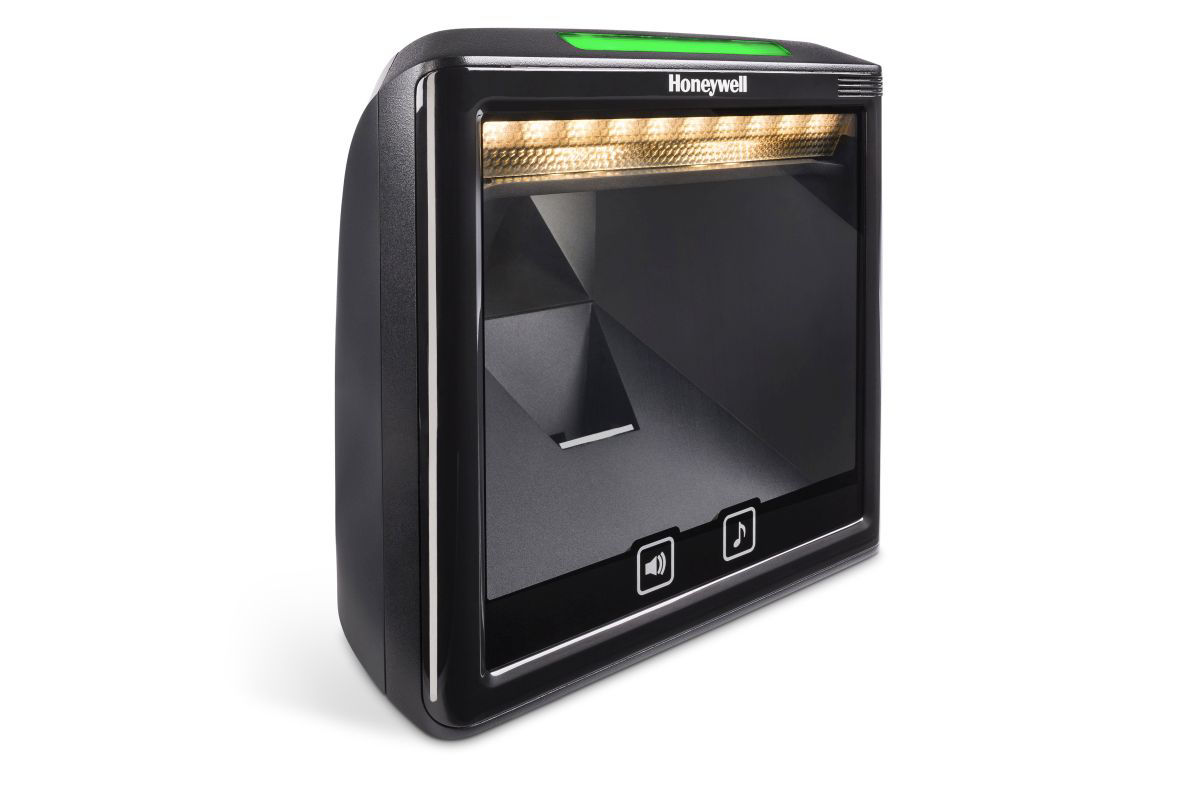

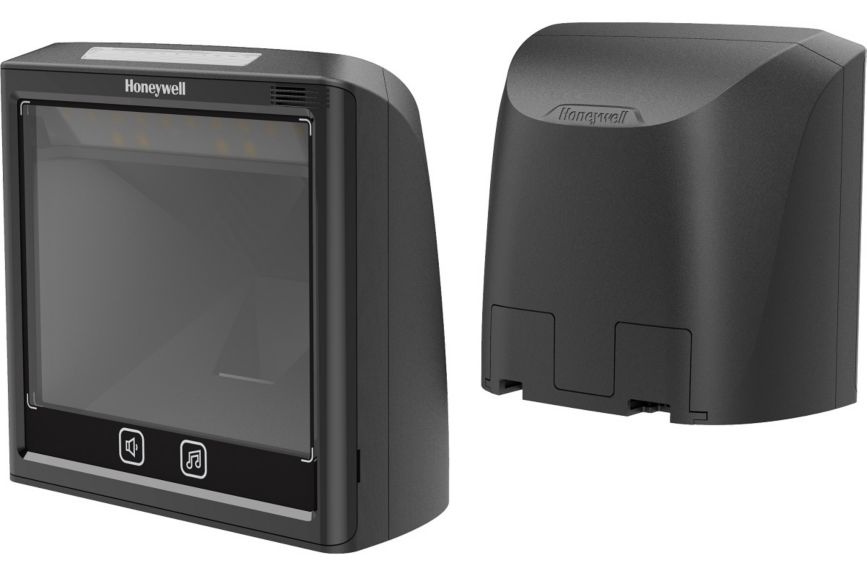

프리젠테이션 스캐너
Solaris XP 7990G
수직 슬롯 스캐너
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명
Honeywell의 최고 성능(XP) 플랫폼에 구축된 작고 현대적인 디자인과 강력한 이미징 기능을 갖춘 Solaris 7990g는 편의점, 약국, 전문점, 주류 및 식료품점과 같은 대량 소매점 계산 환경에서 사용되는 기존 인클로저에 쉽게 장착됩니다. Solaris XP는 이전 Solaris 모델보다 20% 더 빠른 스캔 속도, 최대 5m/s의 모션 허용오차, 더 넓은 시야각을 제공합니다. Honeywell의 현장에서 입증된 XP 기술은 인쇄가 불량하고 손상된 바코드를 쉽게 처리합니다. Solaris XP는 이전 모델과 역호환되므로 업그레이드가 빠르고 간단합니다.
명세서
Dimensions
- Overall Dimensions
- (H x W x D): 148 mm x 152 mm x 85 mm (5.83 in x 5.98 in x 3.35 in)
Scanning Specifications
- Decode Capability
- 1D, 2D, PDF, Postal, OCR
- Motion Tolerance
- 6 m/s
- Scan Pattern
- 2D imager
- Brightness
- 0-100k lux
Hardware
- Wireless
- No
- Host System Interface
- USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
- Engine Type
- XP
Environmental
- Storage Temperature Range
- -20C to 60C / -4F to 140F
- Operating Humidity
- 0 to 95% relative humidity non-condensing
Standards & Approvals
- Protection Ratings
- IP53
Others
- For Use With
- Auxiliary handheld scanners
- Form Factor
- Slot Scanner
- Application
- Retail
- Input Voltage
- 5.2 volts
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Warranty Duration
- 3 years
- Scan Distance
- Standard Range (0-1m)
- Connectivity
- Corded
- IP Rating
- IP53
Dimensions
- Overall Dimensions
- (H x W x D): 148 mm x 152 mm x 85 mm (5.83 in x 5.98 in x 3.35 in)
Scanning Specifications
- Decode Capability
- 1D, 2D, PDF, Postal, OCR
- Motion Tolerance
- 6 m/s
- Scan Pattern
- 2D imager
- Brightness
- 0-100k lux
Hardware
- Wireless
- No
- Host System Interface
- USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
- Engine Type
- XP
Environmental
- Storage Temperature Range
- -20C to 60C / -4F to 140F
- Operating Humidity
- 0 to 95% relative humidity non-condensing
Standards & Approvals
- Protection Ratings
- IP53
Others
- For Use With
- Auxiliary handheld scanners
- Form Factor
- Slot Scanner
- Application
- Retail
- Input Voltage
- 5.2 volts
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Warranty Duration
- 3 years
- Scan Distance
- Standard Range (0-1m)
- Connectivity
- Corded
- IP Rating
- IP53
- For Use With : Auxiliary handheld scanners
- Form Factor : Slot Scanner
- Application : Retail
- Overall Dimensions : (H x W x D): 148 mm x 152 mm x 85 mm (5.83 in x 5.98 in x 3.35 in)
- Decode Capability : 1D, 2D, PDF, Postal, OCR
- Motion Tolerance : 6 m/s
- Scan Pattern : 2D imager
- Brightness : 0-100k lux
- Wireless : No
- Host System Interface : USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
- Engine Type : XP
- Input Voltage : 5.2 volts
- Storage Temperature Range : -20C to 60C / -4F to 140F
- Operating Temperature : 0°C to 40°C (32°F to 104°F)
- Operating Humidity : 0 to 95% relative humidity non-condensing
- Protection Ratings : IP53
- Warranty Duration : 3 years
- Scan Distance : Standard Range (0-1m)
- Connectivity : Corded
- IP Rating : IP53
