    LVDT

    Model S3C Series

    dc-dc long stroke displacement transducers. Captive guided spring return armature. ±0.1 in to ±0.4 in ranges. ±0.25% F.S. non-linearity

    Aperçu

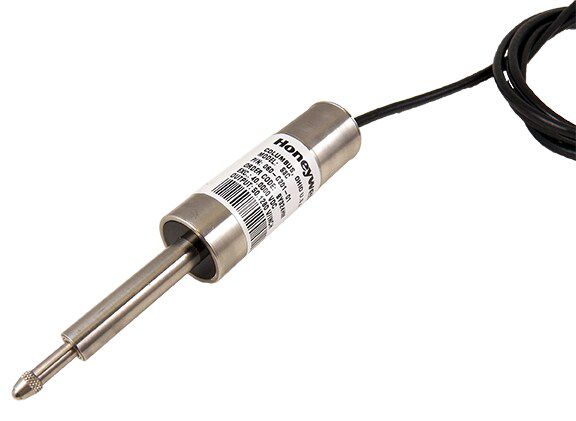

    Model S3C DC-DC Miniature Displacement Transducer with captive guided spring return armature, ranges of ± 0.1 in to ± 0.4 in and accuracy of ± 0.25 % of full scale. Output of either ± 5 Vdc or 0 to 10 Vdc with supply that can operate with either a dual power supply of ± 12 Vdc to ± 20 Vdc or a single power supply of 24 Vdc to 40 Vdc. Unit can operate from a temperature of -58 °F to +158 °F and is constructed with a stainless steel body and has a 6 ft long multi-conductor shielded cable.

    Features
    • Miniature design
    • Cost efficient
    • 0.25 % non-linearity
    • Stainless steel construction
    • ±0.1 in to ±0.4 in range
    • Infinite resolution
    • Single or dual supply wiring (field selectable)
    • Captive guided spring return armature
    • Not RoHS compliant
    Data Sheet
    prénom
    La description
    Taille de fichier
    Date
    Taille
    Test & MeasurementModel S3C DC-DC Short-Stroke LVDT Datasheet
    application/pdf 351.1 KB
    8/3/2021
    351.1 KB
