LVDT
Model VL7A
ac-ac long stroke displacement transducers. Captive guided spring return armature. ±0.5 in to ±3.0 in ranges. ±0.25% F.S. non-linearity
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Aperçu

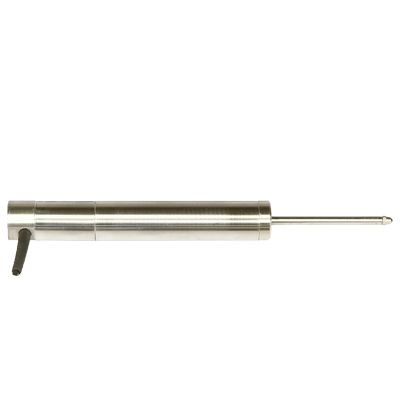

Model VL7A AC-AC Long Stroke Displacement Transducer with captive guided spring return armature, ranges from ± 0.5 to ± 3.0 in and an accuracy of ± 0.25% of full scale. Outputs ranging from 2.4 V RMS @ 3 V RMS to 4.8 V RMS @ 3 V RMS depending on the stroke length. Supply that can operate from either a 5 vdc calibrated power supply or a 1 V to 7 V RMS acceptable power supply. Unit can operate from a temperature of -58°F to +257°F and is constructed with a stainless steel body and has multi-conductor shielded cable.
Features
- 0.25 % non-linearity
- Stainless steel construction
- 12,7 mm to 76,2 mm [0.5 in to 3.0 in] range
- Enhanced immunity to electrical noise
- Infinite resolution
- -58 °F to 257 °F operating range (standard)
- Spring return armature
- Not RoHS compliant
