Load Cells

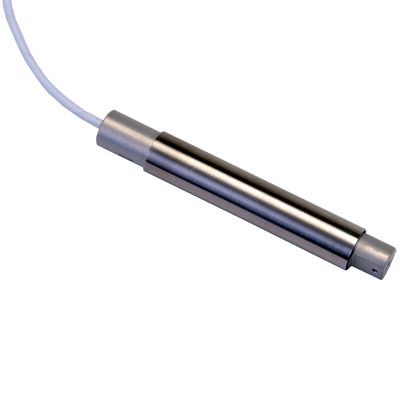

Model MBL
Miniature beam load cell. Ranges of 25 g to 1,000 g. ±0.15 % FS accuracy. Aluminum.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Models MBL Miniature Beam Load Cells are engineered to measure very low bending forces and still achieve an impressive 0.1% full scale non-linearity and hysteresis. Built-in overload stops are incorporated to provide additional reliability. Miniature dimensions allow easy unit integration into existing systems. Model MBL uses semiconductor gages and is available for load ranges from 25 grams to 1,000 grams.
Features
- 25 g to 1000 g
- Miniature size
- 0.1 % linearity
- Small diameter
- Integral cable
- Calibrated in compression only
Data Sheet
Name
Description
File Size
Date
Size
Model MBL Miniature Beam Load Cell Datasheet
application/pdf 215.3 KB
7/17/2021
215.3 KB
Test & Measurement Load Accessories Datasheet
application/pdf 519.98 KB
7/17/2021
519.98 KB
