    Load Cells

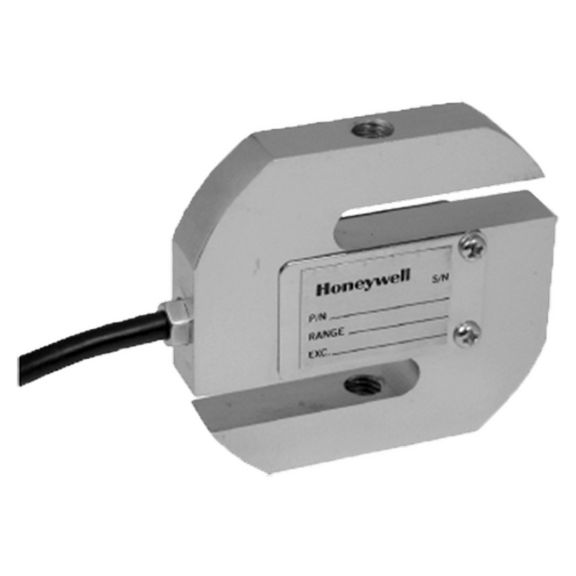

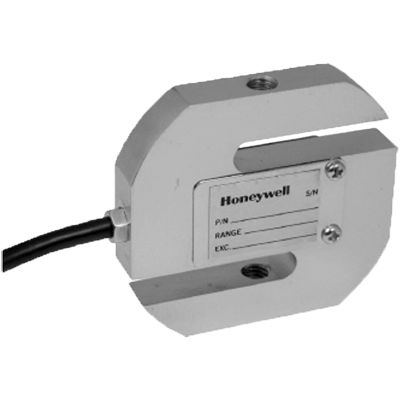

    Model 102

    S-type/z-beam load cells. Capacities of 20 kg to 1,000 kg. ±0.02% full-scale accuracy.

    Overview

    The Model 102 load cell combines both a compact form and high precision to offer a superior tension and compression force transducer. The one-piece, S-shaped design achieves a maximum non-linearity of 0.02 % full scale for load ranges from 20 kg to 1,000 kg. Additional features include minimal temperature effects on zero and span of 0.002 %/°C and 0.002 %/°C, respectively.

    Features
    • 20 kg to 1000 kg range
    • ±0.02 % accuracy
    • One-piece, nickel-plated alloy steel construction
    • Integral cable
    • Cost efficient
