    Amplifiers

    UBP-10 Series

    Universal bipolar strain gauge. 24 to 32 single voltage supply to inline wiring. Programmable gain settings. Wide adjustment range on the zero

    Aperçu

    The Model UBP-10 bi-polar in-line amplifier supplies a highly-regulated, bridge excitation voltage for the transducer and converts the millivolt signal of the transducer to a ±10 Vdc signal. (-)OUTPUT is biased approximately 1/3 of the supply voltage. The output will swing 0 Vdc to 10 Vdc around the (-)OUTPUT reference voltage. The universal, in-line amplifier features three selectable excitation voltages, programmable gain settings, wide adjustment range on the zero and a buffered solid-state shunt cal relay for quick calibration.

    Features
    • For replacement only, not to be used in new design
    • Strain gage sensor amplifier
    • ±5 Vdc output
    • ±15 Vdc supply voltage
    • NEMA 4 housing
    • Selectable excitation voltages: 3 V, 5 V, or 10 V @ 70 mA
    • Increases signal-to-noise ratio in noisy environments
    • Effects of voltage drops in excitation sources are eliminated
    • Signals may be sent to the data systems from low impedence sources
    Data Sheet
    prénom
    La description
    Taille de fichier
    Date
    Taille
    Test & MeasurementInstrumentation Accessories Datasheet
    application/pdf 651.85 KB
    8/3/2021
    651.85 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 247.06 KB
    8/3/2021
    247.06 KB
    Manuals and Guides
    prénom
    La description
    Taille de fichier
    Date
    Taille
    Model UBP
    application/pdf 411.7 KB
    12/3/2020
    411.7 KB
    Product Photo
    prénom
    La description
    Taille de fichier
    Date
    Taille

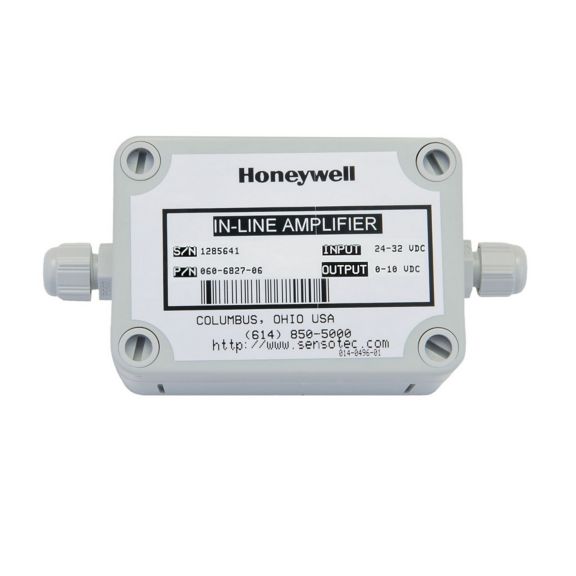

    UBP-10 Series Product Photo
    application/zip 341.14 KB
    341.14 KB
    Autres
    prénom
    La description
    Taille de fichier
    Date
    Taille

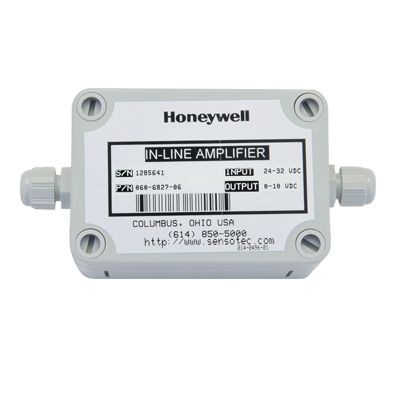

    Model UBP-10 Top View
