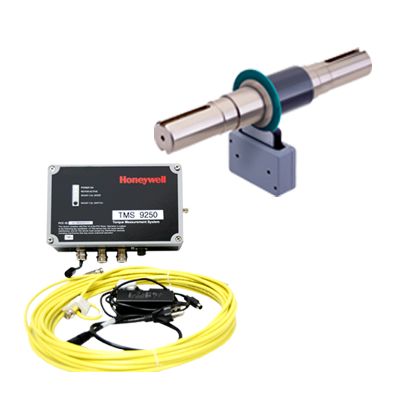

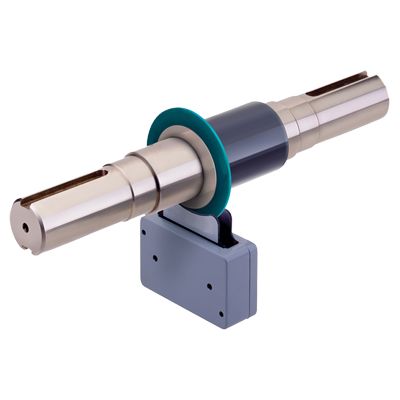

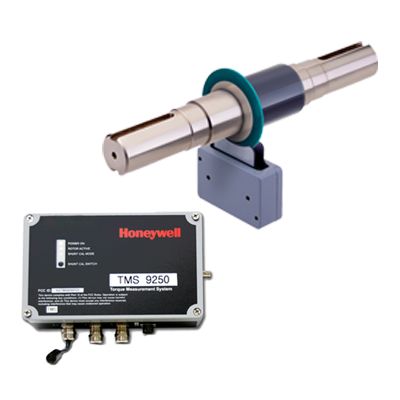

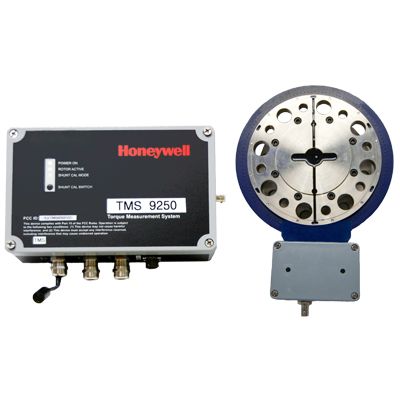

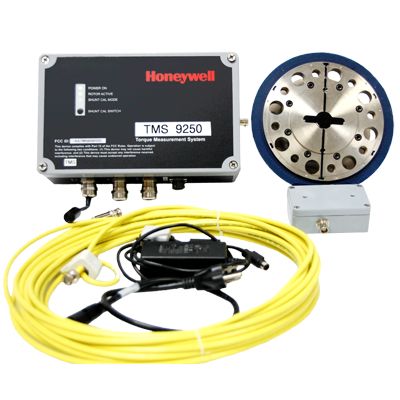

Torque Transducers
TMS9250
Digital telemetry, non-contact. 0.05 %FS, total system accuracy. DIN companion flange compatible. High torsional stiffness.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The new TMS 9250 Digital Telemetry Rotary Torque Measurement System, available in many different configurations to meet the needs of your particular torque measurement application. Built on Honeywell’s proven TMS digital torque platform, the TMS 9250 offers:
- True Torque Measurement – Honeywell TMS 9250’s non-contact digital telemetry design enables higher integrity of the data capture through higher resolution and no mechanical interferences: resulting in a more accurate indication of the actual torque being experienced.
- Flexible Modular Design – Honeywell’s modular design can easily be adapted or customized to fit into many different types of test stands to meet specific test application requirements.
- Simple Installation, Setup, and Operation – The TMS 9250 is compact with quick attach wiring connectors for quick commissioning. It has easy to set up parameters via the software system and enables you to make test parameter adjustments on-the-fly.
- Ongoing Reliability – Honeywell’s TMS 9250 with its non-contact design and digital telemetry solution means no friction (contact), leading to less maintenance.
- FCC / CE Certified EMC Compliant – The TMS 9250 complies with all regulatory standards for safe RF emission standards and will not cause interference with other equipment.
Specifications
Others
- Agency Approvals and Standards
- FCC and CE certified, meeting all EMC emission and susceptibility requirements
- Speed Rating
- 12000 rpm
- 14000 rpm
- 16000 rpm
- 18000 rpm
- 20000 rpm
- 8000 rpm
- Output
- Voltage ±10 Vdc, sinusoidal frequency output
- UNSPSC Commodity
- Force or Torque Sensors
- Torque Type
- Digital Telemetry - Non-Contact
- Temperature Effect (Output)
- ±0.003 %FS/°F
- Series Name
- TMS9250
- Accuracy
- System to read 0.05% FS typical
- Torque Range
- 100 Nm
- 100 ft-lb
- 1000 Nm
- 1000 ft-lb
- 10000 Nm
- 200 Nm
- 2000 Nm
- 2000 ft-lb
- 250 ft-lb
- 300 Nm
- 3000 Nm
- 3000 ft-lb
- 4000 ft-lb
- 50 ft-lb
- 500 Nm
- 500 ft-lb
- 5000 Nm
- 8000 ft-lb
- Temperature Effect (Zero)
- ±0.003 %FS/°F
- Resolution
- Analog to digital (A/D) frequency, 24-bit (0.01 %FS); Normal mode frequency, 16-bit (0.01 %FS)
- UNSPSC Code
- 41111934
- Torsional Stiffness
- 13,000,000 lb-in/rad
- 1470 kNm/rad
- 2,750,000 lb-in/rad
- 205,000,000 lb-in/rad
- 23000 kNm/rad
- 311 kNm/rad
- 35,000,000 lb-in/rad
- 395,000 lb-in/rad
- 3950 kNm/rad
- 5,500,000 lb-in/rad
- 621 kNm/rad
- 80,000,000 lb-in/rad
- 867,000 lb-in/rad
- 9000 kNm/rad
- 98 kNm/rad
- Product Dimensions
- Ø106,7 mm [Ø4.2 in]
- Ø132,1 mm [Ø5.2 in]
- Ø162,6 mm [Ø6.4 in]
- Ø190,5 mm [Ø7.5 in]
- Ø221 mm [Ø8.7 in]
- Ø266,7 mm [Ø10.5 in]
- Overload
- 100 lb-ft
- 10k Nm
- 16k ft-lb
- 1k Nm
- 1k lb-ft
- 200 Nm
- 200 lb-ft
- 20k Nm
- 2k Nm
- 2k lb-ft
- 400 Nm
- 4k Nm
- 4k ft-lb
- 500 lb-ft
- 600 Nm
- 6k Nm
- 6k ft-lb
- 8k ft-lb
- Temperature (Operating)
- -40°C to 85°C [-40°F to 185°F] (Sensor and CCM)
- Product
- 92511-100
- 92511-100NM
- 92511-200NM
- 92511-50
- 92512-250
- 92512-300NM
- 92512-500
- 92512-500NM
- 92513-1K
- 92513-1KNM
- 92513-2KNM
- 92514-2K
- 92514-3K
- 92514-3KNM
- 92515-4K
- 92515-5KNM
- 92516-10KNM
- 92516-8K
- Order Code
- 92511-100FTLBS,1AE,56J,61A
- 92511-100NM,1AE,56J,61A
- 92511-200NM,1AE,56J,61A
- 92511-50FTLBS,1AE,56J,61A
- 92512-250FTLBS,1AE,56J,61A
- 92512-300NM,1AE,56J,61A
- 92512-500FTLBS,1AE,56J,61A
- 92512-500NM,1AE,56J,61A
- 92513-1KFTLBS,1AE,56J,61A
- 92513-1KNM,1AE,56J,61A
- 92513-2KNM,1AE,56J,61A
- 92514-2KFTLBS,1AE,56J,61A
- 92514-3KFTLBS,1AE,56J,61A
- 92514-3KNM,1AE,56J,61A
- 92515-4KFTLBS,1AE,56J,61A
- 92515-5KNM,1AE,56J,61A
- 92516-10KNM,1AE,56J,61A
- 92516-8KFTLBS,1AE,56J,61A
- Temperature (Compensated)
- 5°C to 75°C [40°F to 170°F] (Sensor and CCM)
- Rotating Inertia
- 0.0002 kg-m2
- 0.001 kg-m2
- 0.001 lb-in-sec2
- 0.002 lb-in-sec2
- 0.006 kg-m2
- 0.009 lb-in-sec2
- 0.015 kg-m2
- 0.029 kg-m2
- 0.05 lb-in-sec2
- 0.094 kg-m2
- 0.13 lb-in-sec2
- 0.26 lb-in-sec2
- 0.83 lb-in-sec2
- Rise Time
- 30-45 minutes (warm up time)
Others
- Agency Approvals and Standards
- FCC and CE certified, meeting all EMC emission and susceptibility requirements
- Speed Rating
- 12000 rpm
- 14000 rpm
- 16000 rpm
- 18000 rpm
- 20000 rpm
- 8000 rpm
- Output
- Voltage ±10 Vdc, sinusoidal frequency output
- UNSPSC Commodity
- Force or Torque Sensors
- Torque Type
- Digital Telemetry - Non-Contact
- Temperature Effect (Output)
- ±0.003 %FS/°F
- Series Name
- TMS9250
- Accuracy
- System to read 0.05% FS typical
- Torque Range
- 100 Nm
- 100 ft-lb
- 1000 Nm
- 1000 ft-lb
- 10000 Nm
- 200 Nm
- 2000 Nm
- 2000 ft-lb
- 250 ft-lb
- 300 Nm
- 3000 Nm
- 3000 ft-lb
- 4000 ft-lb
- 50 ft-lb
- 500 Nm
- 500 ft-lb
- 5000 Nm
- 8000 ft-lb
- Temperature Effect (Zero)
- ±0.003 %FS/°F
- Resolution
- Analog to digital (A/D) frequency, 24-bit (0.01 %FS); Normal mode frequency, 16-bit (0.01 %FS)
- UNSPSC Code
- 41111934
- Torsional Stiffness
- 13,000,000 lb-in/rad
- 1470 kNm/rad
- 2,750,000 lb-in/rad
- 205,000,000 lb-in/rad
- 23000 kNm/rad
- 311 kNm/rad
- 35,000,000 lb-in/rad
- 395,000 lb-in/rad
- 3950 kNm/rad
- 5,500,000 lb-in/rad
- 621 kNm/rad
- 80,000,000 lb-in/rad
- 867,000 lb-in/rad
- 9000 kNm/rad
- 98 kNm/rad
- Product Dimensions
- Ø106,7 mm [Ø4.2 in]
- Ø132,1 mm [Ø5.2 in]
- Ø162,6 mm [Ø6.4 in]
- Ø190,5 mm [Ø7.5 in]
- Ø221 mm [Ø8.7 in]
- Ø266,7 mm [Ø10.5 in]
- Overload
- 100 lb-ft
- 10k Nm
- 16k ft-lb
- 1k Nm
- 1k lb-ft
- 200 Nm
- 200 lb-ft
- 20k Nm
- 2k Nm
- 2k lb-ft
- 400 Nm
- 4k Nm
- 4k ft-lb
- 500 lb-ft
- 600 Nm
- 6k Nm
- 6k ft-lb
- 8k ft-lb
- Temperature (Operating)
- -40°C to 85°C [-40°F to 185°F] (Sensor and CCM)
- Product
- 92511-100
- 92511-100NM
- 92511-200NM
- 92511-50
- 92512-250
- 92512-300NM
- 92512-500
- 92512-500NM
- 92513-1K
- 92513-1KNM
- 92513-2KNM
- 92514-2K
- 92514-3K
- 92514-3KNM
- 92515-4K
- 92515-5KNM
- 92516-10KNM
- 92516-8K
- Order Code
- 92511-100FTLBS,1AE,56J,61A
- 92511-100NM,1AE,56J,61A
- 92511-200NM,1AE,56J,61A
- 92511-50FTLBS,1AE,56J,61A
- 92512-250FTLBS,1AE,56J,61A
- 92512-300NM,1AE,56J,61A
- 92512-500FTLBS,1AE,56J,61A
- 92512-500NM,1AE,56J,61A
- 92513-1KFTLBS,1AE,56J,61A
- 92513-1KNM,1AE,56J,61A
- 92513-2KNM,1AE,56J,61A
- 92514-2KFTLBS,1AE,56J,61A
- 92514-3KFTLBS,1AE,56J,61A
- 92514-3KNM,1AE,56J,61A
- 92515-4KFTLBS,1AE,56J,61A
- 92515-5KNM,1AE,56J,61A
- 92516-10KNM,1AE,56J,61A
- 92516-8KFTLBS,1AE,56J,61A
- Temperature (Compensated)
- 5°C to 75°C [40°F to 170°F] (Sensor and CCM)
- Rotating Inertia
- 0.0002 kg-m2
- 0.001 kg-m2
- 0.001 lb-in-sec2
- 0.002 lb-in-sec2
- 0.006 kg-m2
- 0.009 lb-in-sec2
- 0.015 kg-m2
- 0.029 kg-m2
- 0.05 lb-in-sec2
- 0.094 kg-m2
- 0.13 lb-in-sec2
- 0.26 lb-in-sec2
- 0.83 lb-in-sec2
- Rise Time
- 30-45 minutes (warm up time)
- Agency Approvals and Standards : FCC and CE certified, meeting all EMC emission and susceptibility requirements
- Speed Rating : 12000 rpm|14000 rpm|16000 rpm|18000 rpm|20000 rpm|8000 rpm
- Output : Voltage ±10 Vdc, sinusoidal frequency output
- UNSPSC Commodity : Force or Torque Sensors
- Torque Type : Digital Telemetry - Non-Contact
- Temperature Effect (Output) : ±0.003 %FS/°F
- Series Name : TMS9250
- Accuracy : System to read 0.05% FS typical
- Torque Range : 100 Nm|100 ft-lb|1000 Nm|1000 ft-lb|10000 Nm|200 Nm|2000 Nm|2000 ft-lb|250 ft-lb|300 Nm|3000 Nm|3000 ft-lb|4000 ft-lb|50 ft-lb|500 Nm|500 ft-lb|5000 Nm|8000 ft-lb
- Temperature Effect (Zero) : ±0.003 %FS/°F
- Resolution : Analog to digital (A/D) frequency, 24-bit (0.01 %FS); Normal mode frequency, 16-bit (0.01 %FS)
- UNSPSC Code : 41111934
- Torsional Stiffness : 13,000,000 lb-in/rad|1470 kNm/rad|2,750,000 lb-in/rad|205,000,000 lb-in/rad|23000 kNm/rad|311 kNm/rad|35,000,000 lb-in/rad|395,000 lb-in/rad|3950 kNm/rad|5,500,000 lb-in/rad|621 kNm/rad|80,000,000 lb-in/rad|867,000 lb-in/rad|9000 kNm/rad|98 kNm/rad
- Product Dimensions : Ø106,7 mm [Ø4.2 in]|Ø132,1 mm [Ø5.2 in]|Ø162,6 mm [Ø6.4 in]|Ø190,5 mm [Ø7.5 in]|Ø221 mm [Ø8.7 in]|Ø266,7 mm [Ø10.5 in]
- Overload : 100 lb-ft|10k Nm|16k ft-lb|1k Nm|1k lb-ft|200 Nm|200 lb-ft|20k Nm|2k Nm|2k lb-ft|400 Nm|4k Nm|4k ft-lb|500 lb-ft|600 Nm|6k Nm|6k ft-lb|8k ft-lb
- Temperature (Operating) : -40°C to 85°C [-40°F to 185°F] (Sensor and CCM)
- Product : 92511-100|92511-100NM|92511-200NM|92511-50|92512-250|92512-300NM|92512-500|92512-500NM|92513-1K|92513-1KNM|92513-2KNM|92514-2K|92514-3K|92514-3KNM|92515-4K|92515-5KNM|92516-10KNM|92516-8K
- Order Code : 92511-100FTLBS,1AE,56J,61A|92511-100NM,1AE,56J,61A|92511-200NM,1AE,56J,61A|92511-50FTLBS,1AE,56J,61A|92512-250FTLBS,1AE,56J,61A|92512-300NM,1AE,56J,61A|92512-500FTLBS,1AE,56J,61A|92512-500NM,1AE,56J,61A|92513-1KFTLBS,1AE,56J,61A|92513-1KNM,1AE,56J,61A|92513-2KNM,1AE,56J,61A|92514-2KFTLBS,1AE,56J,61A|92514-3KFTLBS,1AE,56J,61A|92514-3KNM,1AE,56J,61A|92515-4KFTLBS,1AE,56J,61A|92515-5KNM,1AE,56J,61A|92516-10KNM,1AE,56J,61A|92516-8KFTLBS,1AE,56J,61A
- Temperature (Compensated) : 5°C to 75°C [40°F to 170°F] (Sensor and CCM)
- Rotating Inertia : 0.0002 kg-m2|0.001 kg-m2|0.001 lb-in-sec2|0.002 lb-in-sec2|0.006 kg-m2|0.009 lb-in-sec2|0.015 kg-m2|0.029 kg-m2|0.05 lb-in-sec2|0.094 kg-m2|0.13 lb-in-sec2|0.26 lb-in-sec2|0.83 lb-in-sec2
- Rise Time : 30-45 minutes (warm up time)
