Torque Transducers
Model 366
Low range reaction torque watch gauges. 0.2 g-cm to 42 g-cm range. ±5 %, ±10 % rated output.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

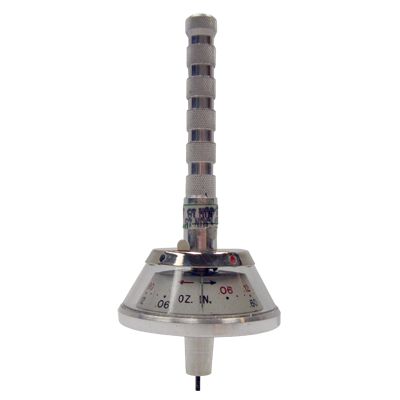

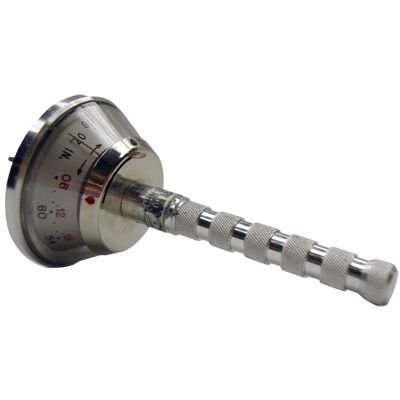

The 366 low range torque watch gauge series accurately measures very low torque. Three miniature adapter chucks allow simple coupling to the device being measured. To minimize friction, a calibrated spring, shaft, and pointer assembly are mounted in jeweled bearings. The unit can measure torque in either a clockwise or counterclockwise direction. A stainless steel internal rotation stop helps prevent damage from over-torque up to three times the normal range.
Features
- 0.2 gm-cm to 42 gm-cm [0.003 in-oz to 0.6 in-oz] capacities
- 5 % (366-0) and 10 % (366-2, 366-3) accuracy
- Three miniature adapter chucks available

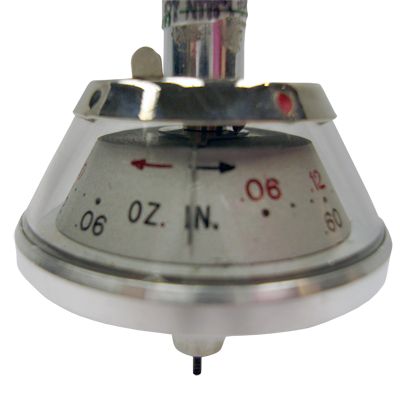

- Dial indication (standard)
- Overload protection
