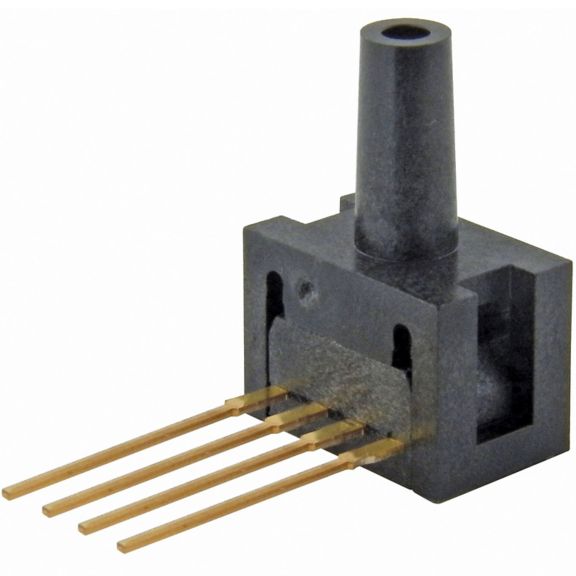

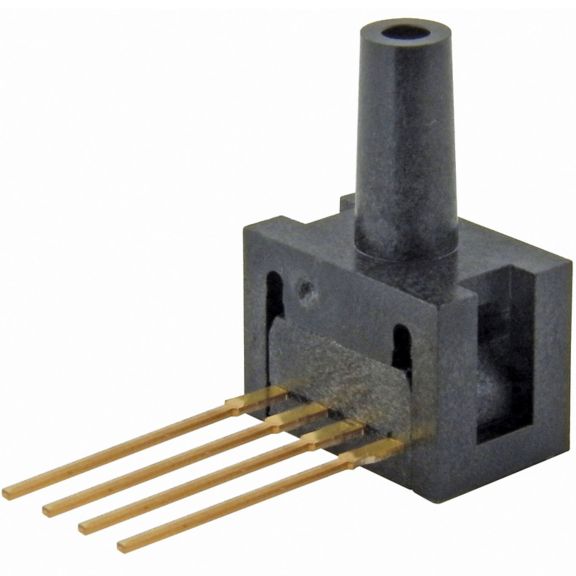

    Pressure Sensors

    26PC Series

    Compensated. Low pressure. mV output. Differential, wet/wet differential, gage. DIP, SIP, SMT. Linearity & hysteresis: 0.5 % typ.

    Overview
    Pressure Ranges
    • 0.5 psi to 250 psi (SIP, DIP)
    • 1 psi to 15 psi (SMT)

    The factory calibrated 26PC Series miniature pressure sensors provide reliable gage pressure sensing performance in a compact package. The sensor features a proven sensing technology that utilizes a specialized piezoresistive micro-machined sensing element which allows part interchangeability, high performance, reliability, and accuracy. The low power, non-amplified, non-compensated Wheatstone bridge circuit design provides inherently stable mV outputs over 1.0 psi through 250 psi sensing ranges.

    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    26PC Series SMT Low Pressure Sensors, Comp/Unamp, 1 psi to 15 psi Datasheet
    application/pdf 690.72 KB
    7/15/2021
    690.72 KB
    26PC Series Low Pressure Sensors, Comp/Unamp, 0.5 psi to 250 psi Datasheet
    application/pdf 2.77 MB
    7/15/2021
    2.77 MB
