    Resolvers

    3-inch Series

    Resolver with multiple housing & rotary transformer configurations. 3 in dia.. 1X: 1X & 16X speeds. Transformer (360°+ mechanical) redundant.

    Overview

    For manufacturers who need an accurate, reliable, repeatable and durable rotary and angle absolute position sensor for potential use in defense, aerospace, medical and industrial applications. Honeywell Hawk͐2: Resolvers provide 360° noncontact, angular position sensing and enhanced accuracy (±7 arcmin) for precise motion control.

    Resolvers convert mechanical shaft position to an electrical signal which represents the actual shaft angle. They are variable transformers in which the stator has two phase windings mechanically displaced by 90°. The output consists of two sine waves that are phase shifted by 90°.

    Resolvers are typically chosen over electronic sensors (i.e., optical encoders, potentiometers, magnetic encoders/sensors) because they do not contain electronics, so they are not susceptible to performance fluctuations in harsh environments. Resolvers are inherently radiation hardened and offer durable EMC (Electromagnetic Compatibility) performance.

    Value to Customers
    • Product delivery: Honeywell's use of the same components for all standard configurations results in its ability to manufacture production-quality standard devices in 12 weeks versus 20-22 weeks many competitors offer
    • Customizable: Honeywell's manufacturing process and the variety of features available allow customers to customize the product to meet their application accuracy and size requirements
    • Global support: Honeywell's worldwide presence offers customers immediate product and application support: many resolver competitors offer either support only in their local manufacturing area, or limited support outside of their manufacturing area
    • Engineering expertise: Honeywell has more than 30 years" experience providing accurate, reliable, and durable resolvers
    Differentiators
    • Multiple configurations: Pancake (bare and simple housed), fully housed and configurations with rotary transformers
    • Operating temperature range: -50.8 °C to 93.3 °C [-60 °F to 200 °F]
    • Excitation frequency range: 800 Hz to 5000 Hz
    • Excitation voltage range: 3 V to 15 V
    • Shock: 50 g, 11 ms
    • Vibration: 15 g, 10 Hz to 2000 Hz
    • Custom trim
    • Custom hub/housing
    • Custom redundant brushless version (two independent resolvers within the same housing)
    • Titanium housing
    • Transformer for 360°+ rotation (continuous)
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Honeywell Hawk™ Resolvers, 3-in Series, Multiple Configurations
    application/pdf 641.84 KB
    7/15/2021
    641.84 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Aerospace and Defense Product Range Guide
    application/pdf 19.65 MB
    9/23/2024
    19.65 MB
    Position Sensors Product Range Guide
    application/pdf 4.85 MB
    12/20/2022
    4.85 MB
    Installation Instructions
    Name
    Description
    File Size
    Date
    Size
    50075128: Honeywell Hawk™ Resolvers, 3-in Series, Multiple Configurations
    application/pdf 430.39 KB
    7/15/2021
    430.39 KB
    Application Note
    Name
    Description
    File Size
    Date
    Size
    Defence Ground Vehicles -
    application/pdf 872.87 KB
    6/14/2023
    872.87 KB
    Honeywell Hawk™ Resolvers, 1-in Series and 3-Inch Series
    application/pdf 70.38 KB
    7/15/2021
    70.38 KB
    Product Photo
    Name
    Description
    File Size
    Date
    Size

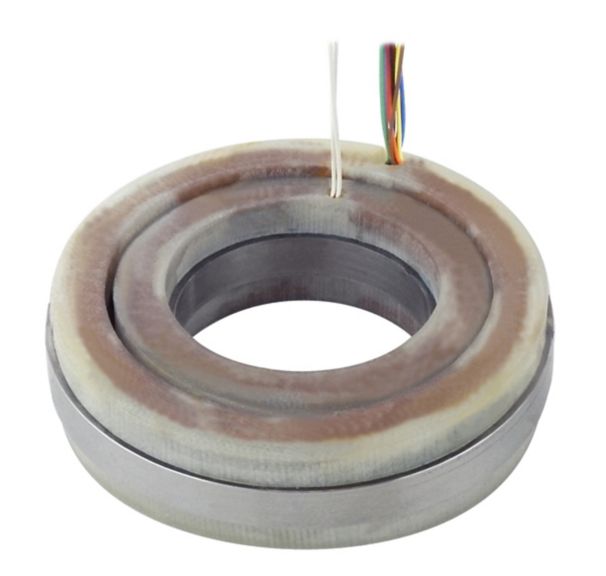

    D27B14XGABNTB, S27B14XGABNYG highres photo.jpg
    image/jpeg 475.1 KB
    7/15/2021
    475.1 KB

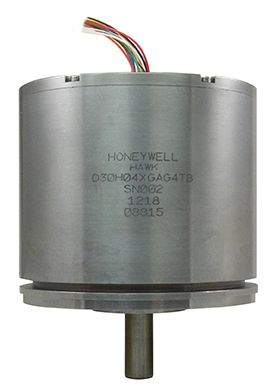

    D30H04XGAG4TB lowres photo.jpg
    image/jpeg 71.41 KB
    7/15/2021
    71.41 KB
    D30D12XGASNTB lowres photo.jpg
    image/jpeg 102.94 KB
    7/15/2021
    102.94 KB
    D27B14XGABNTB, S27B14XGABNYG lowres photo.jpg
    image/jpeg 66.82 KB
    7/15/2021
    66.82 KB
    D30H04XGAG4TB highres photo.jpg
    image/jpeg 637.01 KB
    7/15/2021
    637.01 KB
    3-inch Series Product Photo
    application/zip 2.24 MB
    7/15/2021
    2.24 MB
    D30P12XGASNTB lowres photo.jpg
    image/jpeg 71.47 KB
    7/15/2021
    71.47 KB
    D30D12XGASNTB highres photo.jpg
    image/jpeg 664.11 KB
    7/15/2021
    664.11 KB

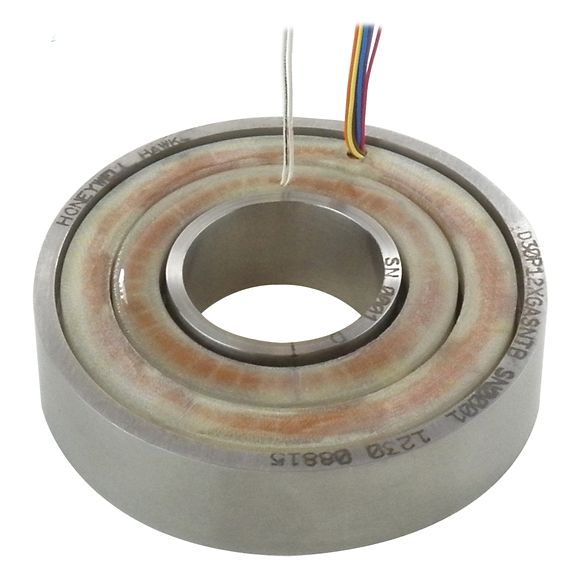

    D30P12XGASNTB highres photo.jpg
