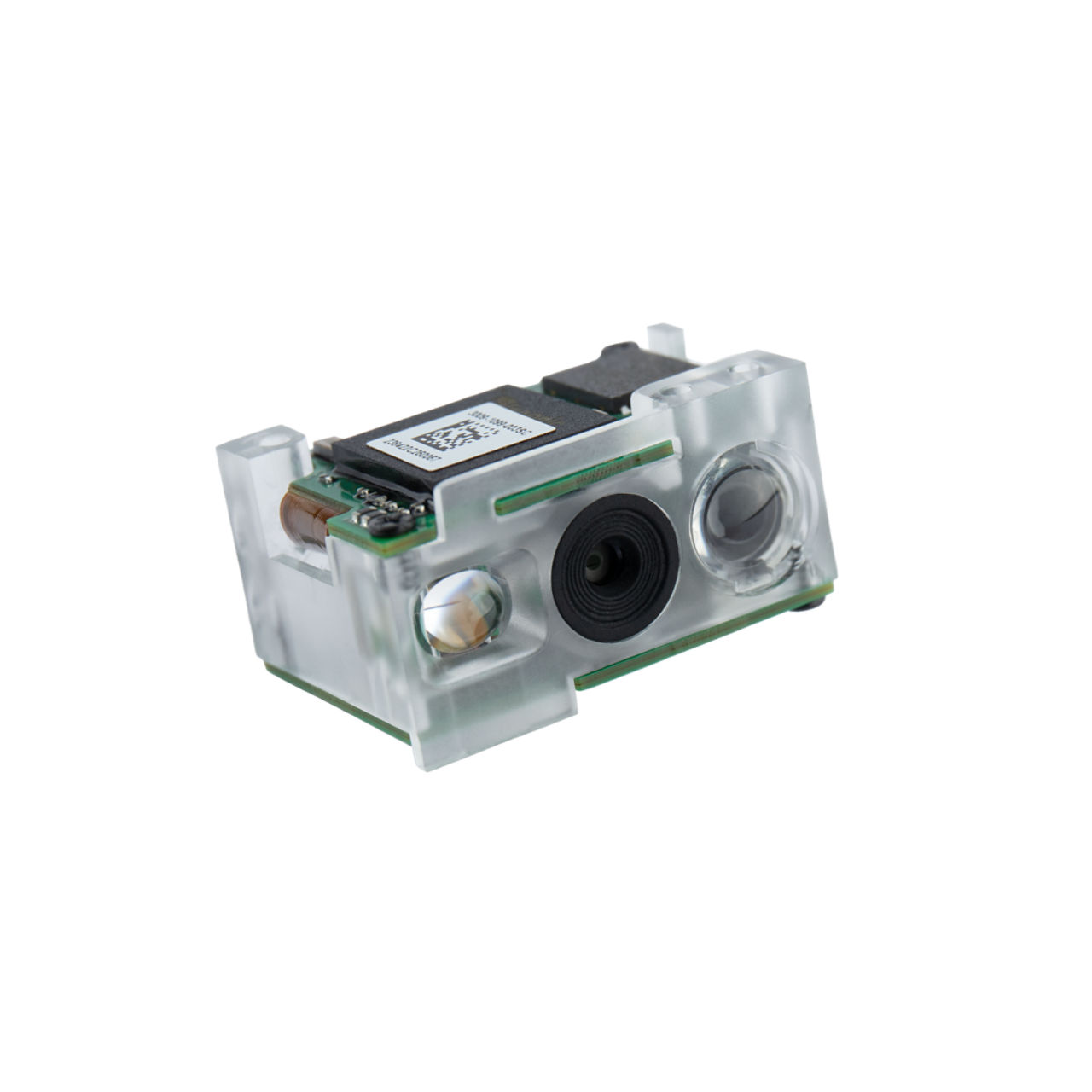

N5780 Series 2D Decoded Scan Engine
Exceptional motion tolerance. Powerful image processor. Beyond barcode reading capabilities for OCR. Optimized reading of QR codes.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Honeywell N5780 2D barcode scan engine features a sleek, one-piece, compact design. The N5780, along with the existing N4680 Series 2D scan engine, forms the Honeywell Smart Adaptus™ 7.0 platform. This pair is a winning combination of Honeywell hardware (one-piece design form-factor) and architecture built on a powerful decoding and imaging processing platform. This enables intercompatibility between the N4680 & N5780, resulting in frictionless integration, rapid development, and design flexibility.
A successor to the popular N5680 series, the N5780 is packed with powerful performance at a higher 1 Mpx or 1.3 Mpx resolution, a wider field of view on the standard version, and excellent snappiness for advanced performance in a compact, one-piece design. Current and new customers will benefit from higher throughputs and an intuitive end-user scan experience, without compromising design flexibility. The N5780 can perform even under challenging conditions and when faced with damaged barcodes and difficult images.
Features and Benefits
A successor to the popular N5680 series, the N5780 is packed with powerful performance at a higher 1 Mpx or 1.3 Mpx resolution, a wider field of view on the standard version, and excellent snappiness for advanced performance in a compact, one-piece design. Current and new customers will benefit from higher throughputs and an intuitive end-user scan experience, without compromising design flexibility. The N5780 can perform even under challenging conditions and when faced with damaged barcodes and difficult images.
Features and Benefits
- Fully integrated, one-piece design scan engine, so there's no need for an extra decoder board or host decoder programming. The N5780 Series does not require a separate CPU or OS for integration into a device
- Powerful decoding and imaging processor of the Smart Adaptus™ 7.0 platform and form-factor enables rapid development and reduces time to market
- 1 Mpx or 1.3 Mpx resolution and global shutter technology enables excellent snappiness and motion tolerance to provide greater productivity and throughput in kiosk applications
- Lower power consumption enhances application performance and functionality in the application’s workflow
- Supports beyond barcode reading capabilities such as OCR and microservices that are licensable as add-ons, such as Honeywell EasyDL™
Specifications
Dimensions & Weight
- Dimension
- 0.46 in × 0.83 in × 0.57 in
- 11,7 mm × 21,15 mm × 14,6 mm
Technical Specifications
- Motion Tolerance
- 6 m/s
- Host Interface
- TTL
- USB
- Illumination
- Visible Red Led
- White LED
- Sensor Type
- Global shutter
- Scan Rate
- 60 FPS
Electrical Specifications
- Input Voltage
- TTL Serial: 3.3 Vdc ±5 %
- USB: 5.0 Vdc ±5 %
Features
- Aimer Type
- Green cross LED
Dimensions & Weight
- Dimension
- 0.46 in × 0.83 in × 0.57 in
- 11,7 mm × 21,15 mm × 14,6 mm
Technical Specifications
- Motion Tolerance
- 6 m/s
- Host Interface
- TTL
- USB
- Illumination
- Visible Red Led
- White LED
- Sensor Type
- Global shutter
- Scan Rate
- 60 FPS
Electrical Specifications
- Input Voltage
- TTL Serial: 3.3 Vdc ±5 %
- USB: 5.0 Vdc ±5 %
Features
- Aimer Type
- Green cross LED
- Dimension : 0.46 in × 0.83 in × 0.57 in|11,7 mm × 21,15 mm × 14,6 mm
- Motion Tolerance : 6 m/s
- Host Interface : TTL|USB
- Input Voltage : TTL Serial: 3.3 Vdc ±5 %|USB: 5.0 Vdc ±5 %
- Illumination : Visible Red Led|White LED
- Sensor Type : Global shutter
- Aimer Type : Green cross LED
- Scan Rate : 60 FPS
