Thermistors
143 Series

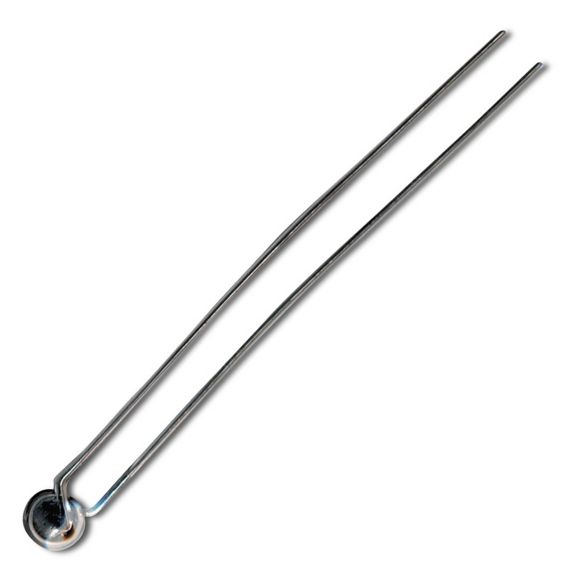

5,08 mm [0.2 in] diameter disc, adjacent leads, uncoated. -60 °C to 150 °C [-76 °F to 302 °F].
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
143 Series thermistors are available in a range of custom resistance values. Leads are uninsulated. They are available on tape and reel.
- Dissipation constant in still air: 4.0 mW/°C to 7.0 mW/°C (inclusive)
- Time constant in air: 16.0 s to 35.0 s (inclusive)
- Nominal resistance at [25 °F to 77 °F]: 100 Ohm, 200 Ohm, 300 Ohm, 1,000 Ohm, 3,000 Ohm, 5,000 Ohm, 10,000 Ohm, 30,000 Ohm, 15,000 Ohm
- Maximum diameter: 5,08 mm [0.2 in]
- Termination material: tinned copper
- Lead length: 38,1 mm [1.5 in]
Manuals and Guides
Name
Description
File Size
Date
Size
Temperature Sensors Line Guide
application/pdf 293.8 KB
7/16/2021
293.8 KB
Brochure
Name
Description
File Size
Date
Size
Industrial Applications: Going Beyond Limits
application/pdf 16.68 MB
2/11/2025
16.68 MB
Application Note
Name
Description
File Size
Date
Size
Solutions for Hematology Analyzers
application/pdf 2.26 MB
6/12/2023
2.26 MB
Solutions for Molecular Diagnostics
application/pdf 2.61 MB
6/12/2023
2.61 MB
Name
Description
File Size
Date
Size
Industrial Applications: Going Beyond Limits
application/pdf 16.68 MB
2/11/2025
16.68 MB
Solutions for Hematology Analyzers
application/pdf 2.26 MB
6/12/2023
2.26 MB
Solutions for Molecular Diagnostics
application/pdf 2.61 MB
6/12/2023
2.61 MB
Temperature Sensors Line Guide
application/pdf 293.8 KB
7/16/2021
293.8 KB
Name
Date
Size
7/16/2021
6/12/2023
4/11/2024
6/12/2023
12/20/2022
Please sign in to view part numbers available for purchase based on your account Sign In
Showing 1 to 5 of 5 parts
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
143-101FAG-RC1
143 Series, 5,08 mm [0.2 in] disc thermistor with leads, 100 Ohm resistance, ±10.0% tolerance, 2585 BETA = 3468
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-thermistors-140-143-series-ciid-161334
143-101FAG-RC1
143 Series, 5,08 mm [0.2 in] disc thermistor with leads, 100 Ohm resistance, ±10.0% tolerance, 2585 BETA = 3468
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-thermistors-140-143-series-ciid-161334
143-102LAG-A01
143 Series, 5,08 mm [0.2 in] disc thermistor with leads, 1,000 Ohm resistance, ±10.0% tolerance, 2585 BETA = 3974
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-thermistors-140-143-series-ciid-161334
143-102LAG-A01
143 Series, 5,08 mm [0.2 in] disc thermistor with leads, 1,000 Ohm resistance, ±10.0% tolerance, 2585 BETA = 3974
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-thermistors-140-143-series-ciid-161334
143-201FAG-A02
THERMAL-THERMISTORS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-thermistors-140-143-series-ciid-161334
143-201FAG-A02
THERMAL-THERMISTORS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-thermistors-140-143-series-ciid-161334
143-502LAG-A01
THERMAL-THERMISTORS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-thermistors-140-143-series-ciid-161334
143-502LAG-A01
THERMAL-THERMISTORS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-thermistors-140-143-series-ciid-161334
144-101FAG-001
THERMAL-THERMISTORS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-thermistors-140-143-series-ciid-161334
144-101FAG-001
THERMAL-THERMISTORS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-thermistors-140-143-series-ciid-161334
