Thermostats
3100U Series
Hermetically sealed. UL &/or CSA. Tight tolerances & differentials. Pre-set & tamper proof. SPST contacts. Mounting brackets, terminals
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

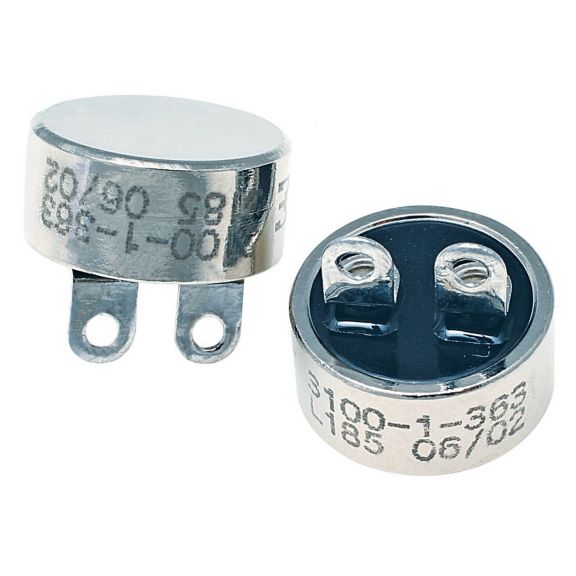

The 3100U Series is a single-pole, single-throw switch activated by a snap-action bimetal disc. The case is laser welded to form a hermetically-sealed steel housing, with a glass-to-metal seal at the terminal junction. Temperature calibrations are pre-set at the factory. Each unit is thermally and mechanically inspected and tamperproof. They are available to open or close on temperature rise. A variety of mounting brackets and terminals is available. Used in high temperature control. 3100U 240 V: UL/CSA approved.
Features
- Hermetically sealed
- Tight tolerances
- Tight differentials
Potential Applications
- Computers
- Medical electronics
- Power supplies
- Industrial controls
- Test equipment
- Infotech
Specifications
Others
- Agency Approvals and Standards
- UL
- UL, CSA
- Thermostat Environmental Exposure Range
- -62 °C to 288 °C [-80 °F to 550 °F]
- Operating temperature
- -29 °C to 260 °C [-20 °F to 500 °F]
- Humidity
- MIL-STD-202, Method 105
- MIL-STD-202, Method 106
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- MIL-STD-202, Method 307; 0.050 Ohm max.
- Seal Type
- MIL-STD-202, Method 112; Cond. 1x10-4
- MIL-STD-202, Method 112; Cond. 1x10-5
- Insulation Resistance
- MIL-STD-202, Method 302; 50 MOhm
- MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
Others
- Agency Approvals and Standards
- UL
- UL, CSA
- Thermostat Environmental Exposure Range
- -62 °C to 288 °C [-80 °F to 550 °F]
- Operating temperature
- -29 °C to 260 °C [-20 °F to 500 °F]
- Humidity
- MIL-STD-202, Method 105
- MIL-STD-202, Method 106
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- MIL-STD-202, Method 307; 0.050 Ohm max.
- Seal Type
- MIL-STD-202, Method 112; Cond. 1x10-4
- MIL-STD-202, Method 112; Cond. 1x10-5
- Insulation Resistance
- MIL-STD-202, Method 302; 50 MOhm
- MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
- Agency Approvals and Standards : UL|UL, CSA
- Thermostat Environmental Exposure Range : -62 °C to 288 °C [-80 °F to 550 °F]
- Operating temperature : -29 °C to 260 °C [-20 °F to 500 °F]
- Humidity : MIL-STD-202, Method 105|MIL-STD-202, Method 106
- Dielectric Strength : MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
- Thermostat Contact Resistance : MIL-STD-202, Method 307; 0.050 Ohm|MIL-STD-202, Method 307; 0.050 Ohm max.
- Seal Type : MIL-STD-202, Method 112; Cond. 1x10-4|MIL-STD-202, Method 112; Cond. 1x10-5
- Insulation Resistance : MIL-STD-202, Method 302; 50 MOhm|MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
