8690i Wearable RFID Mini Mobile Computer
8690i Wearable RFID Mini Mobile Computer
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

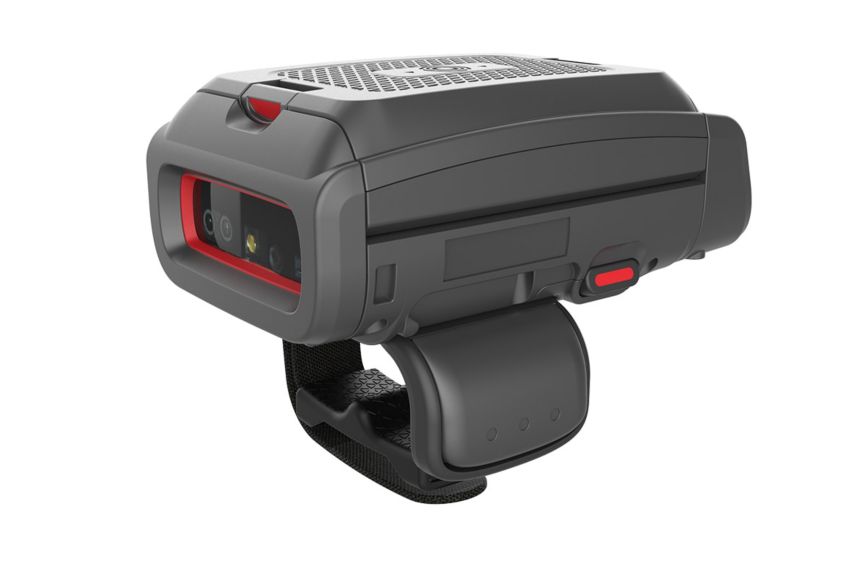

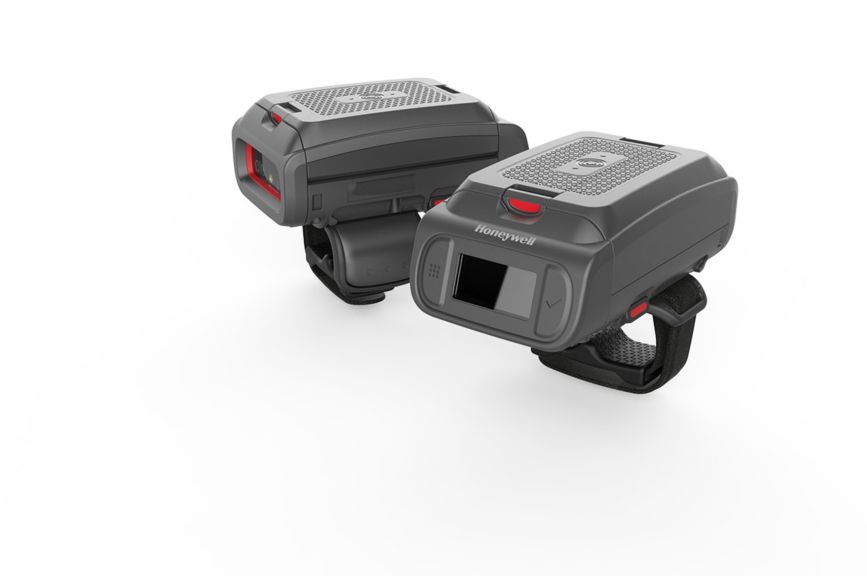

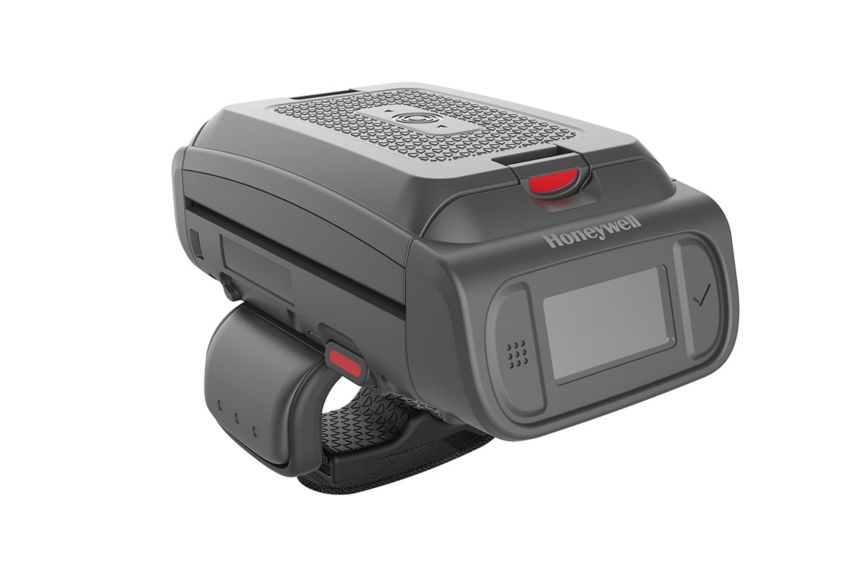

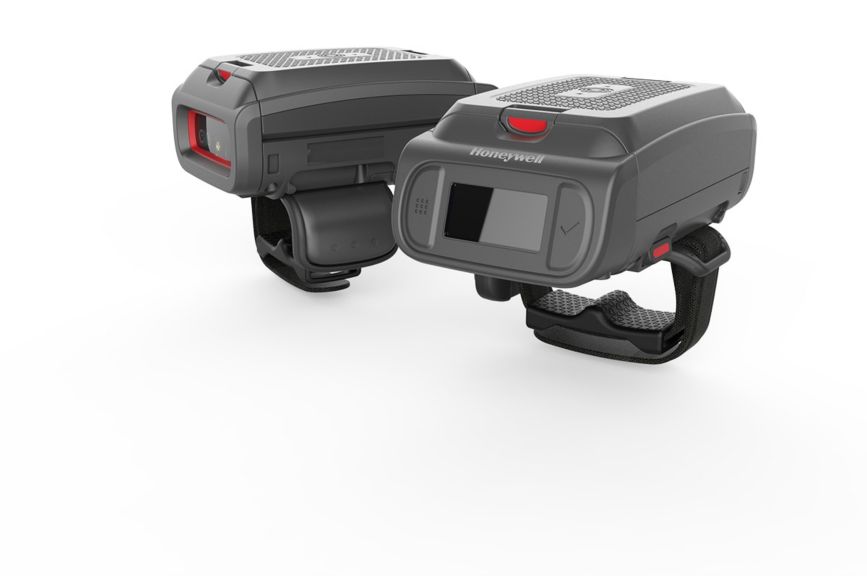

The Honeywell 8690i wearable device is a compact, high-performance, hands-free mini mobile computer for your business that will help you improve workflow efficiency and reduce costs.Find out more about what your business can accomplish with the 8690i Wearable RFID Mini Mobile Computer and Honeywell workflow solutions.
- Industry-standard EPC Global Class 1 Gen 2, RFID reader ensures that the 8690i can read all common supply chain RFID tags.
- Reduce acquisition and operations costs with the customizable line-of-sight color display, Wi-Fi, and SDK for application development, enabling the 8690i device to support streamlined workflows as a standalone device, replacing scanner, reader, and mobile computer alternatives.
- Customize to fit multiple applications with field-reconfigurable accessories that enable ring or glove mounts. Chargers are available for devices and batteries in 4 or 12 bay options for distributed or large scale consolidated deployments.
- Engineered for 2,000 0.5-meter (1.6-feet) tumbles, the 8690i wearable mini mobile is built to endure rugged work environments and real-world use.
- Honeywell Operational Intelligence workflow analytics to manage battery population lifecycle, ensuring uninterrupted full-shift operation, simple deployment of setting and firmware updates.
- Drives streamlined workflows via a single device for many applications, replacing an RFID reader, scanner and mobile computer.
- Customizable user-facing display communicates workflow instructions, while the two-button interface enables users to navigate menus and confirm selections.
- Connects directly to the network application through Wi-Fi and the SDK, even enabling offline functionality via TotalFreedom™ plug-in development.
Specifications
Dimensions
- Overall Dimensions
- 3.8 in x 2.2 in x 1.6 in
- 95.7 mm x 56 mm x 39.4 mm
Scanning Specifications
- Skew
- ±60°
- Decode Capability
- 1D/2D
- Motion Tolerance
- Up to 584 cm (230 in)/second
- Scanning Range
- Standard range (SR)
- Brightness
- 0 to 100,000 lux
- Pitch
- ±45°
Network
- Bluetooth Specifications
- 2.4 GHz to 2.5 GHz (ISMNEWLINEBand) Adaptive Frequency HoppingNEWLINEBluetooth® v. 5.0: Class 1;
Environmental
- Storage Temperature Range
- -20°C to 60°C
- -4°F to 140°F
- Operating Humidity
- 0% to 95% relative humidity (non- condensing)
Standards & Approvals
- Drop Specifications
- 36 1.5 m (4.9 ft) drops to concrete
- Protection Ratings
- IP54
Others
- Operating Temperature
- -20°C to 50°C
- -4°F to 122°F
- Warranty Duration
- Two-year factory warranty (Note: Battery warranty is one year.)
- Brand
- Honeywell
- Power Connector Type
- Cordless
- Scan Distance
- Standard Range (0-1m)
- Connectivity
- Bluetooth / Wi-fi
- Battery Type
- Li-ion Battery
- IP Rating
- IP54
- Charging
- Contact Charging
Dimensions
- Overall Dimensions
- 3.8 in x 2.2 in x 1.6 in
- 95.7 mm x 56 mm x 39.4 mm
Scanning Specifications
- Skew
- ±60°
- Decode Capability
- 1D/2D
- Motion Tolerance
- Up to 584 cm (230 in)/second
- Scanning Range
- Standard range (SR)
- Brightness
- 0 to 100,000 lux
- Pitch
- ±45°
Network
- Bluetooth Specifications
- 2.4 GHz to 2.5 GHz (ISMNEWLINEBand) Adaptive Frequency HoppingNEWLINEBluetooth® v. 5.0: Class 1;
Environmental
- Storage Temperature Range
- -20°C to 60°C
- -4°F to 140°F
- Operating Humidity
- 0% to 95% relative humidity (non- condensing)
Standards & Approvals
- Drop Specifications
- 36 1.5 m (4.9 ft) drops to concrete
- Protection Ratings
- IP54
Others
- Operating Temperature
- -20°C to 50°C
- -4°F to 122°F
- Warranty Duration
- Two-year factory warranty (Note: Battery warranty is one year.)
- Brand
- Honeywell
- Power Connector Type
- Cordless
- Scan Distance
- Standard Range (0-1m)
- Connectivity
- Bluetooth / Wi-fi
- Battery Type
- Li-ion Battery
- IP Rating
- IP54
- Charging
- Contact Charging
- Overall Dimensions : 3.8 in x 2.2 in x 1.6 in|95.7 mm x 56 mm x 39.4 mm
- Skew : ±60°
- Decode Capability : 1D/2D
- Motion Tolerance : Up to 584 cm (230 in)/second
- Scanning Range : Standard range (SR)
- Brightness : 0 to 100,000 lux
- Pitch : ±45°
- Bluetooth Specifications : 2.4 GHz to 2.5 GHz (ISMNEWLINEBand) Adaptive Frequency HoppingNEWLINEBluetooth® v. 5.0: Class 1;
- Storage Temperature Range : -20°C to 60°C|-4°F to 140°F
- Operating Temperature : -20°C to 50°C|-4°F to 122°F
- Operating Humidity : 0% to 95% relative humidity (non- condensing)
- Drop Specifications : 36 1.5 m (4.9 ft) drops to concrete
- Protection Ratings : IP54
- Warranty Duration : Two-year factory warranty (Note: Battery warranty is one year.)
- Brand : Honeywell
- Power Connector Type : Cordless
- Scan Distance : Standard Range (0-1m)
- Connectivity : Bluetooth / Wi-fi
- Battery Type : Li-ion Battery
- IP Rating : IP54
- Charging : Contact Charging
