Overview

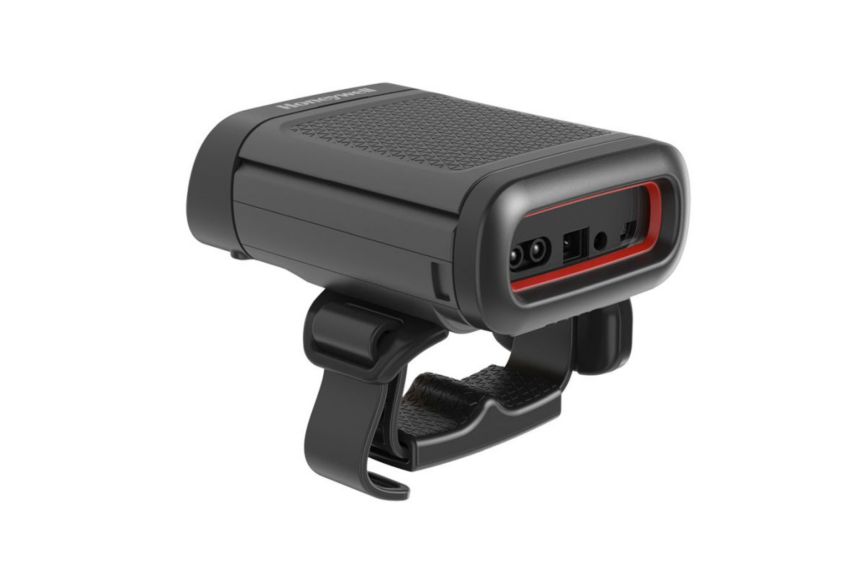

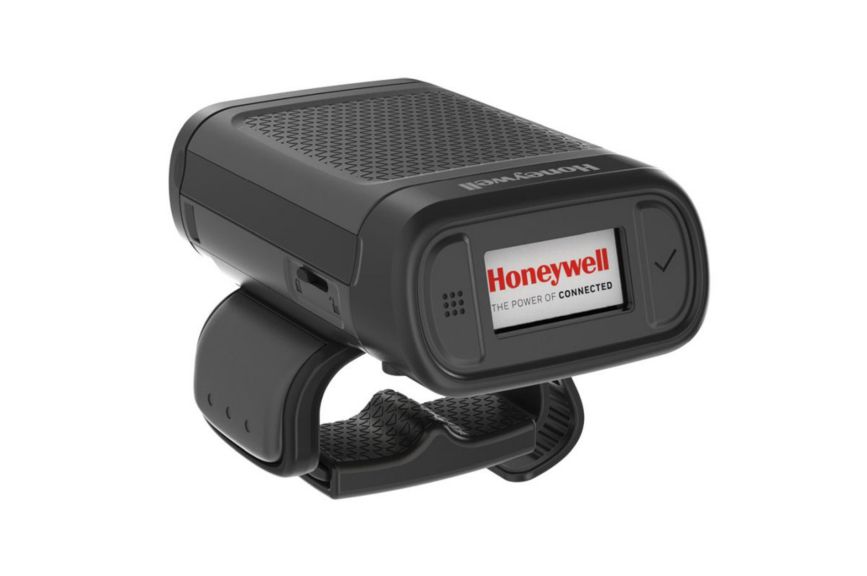

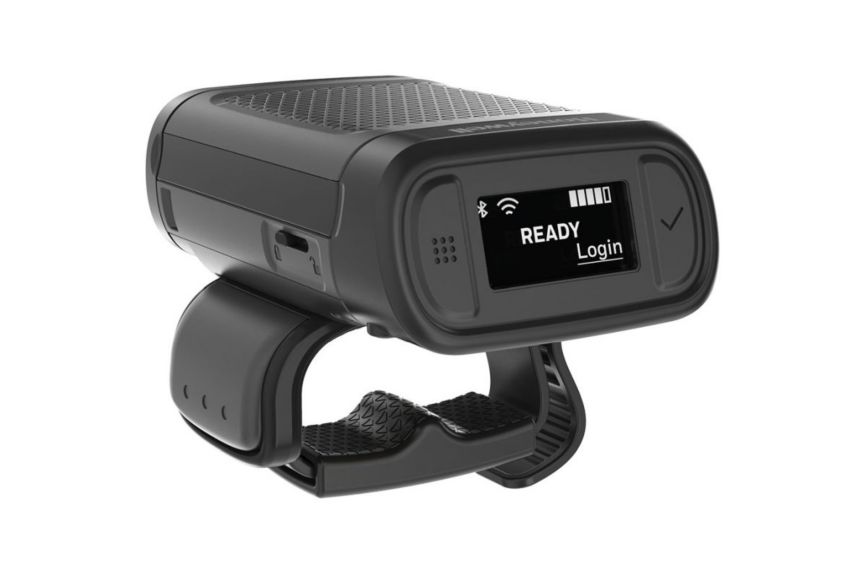

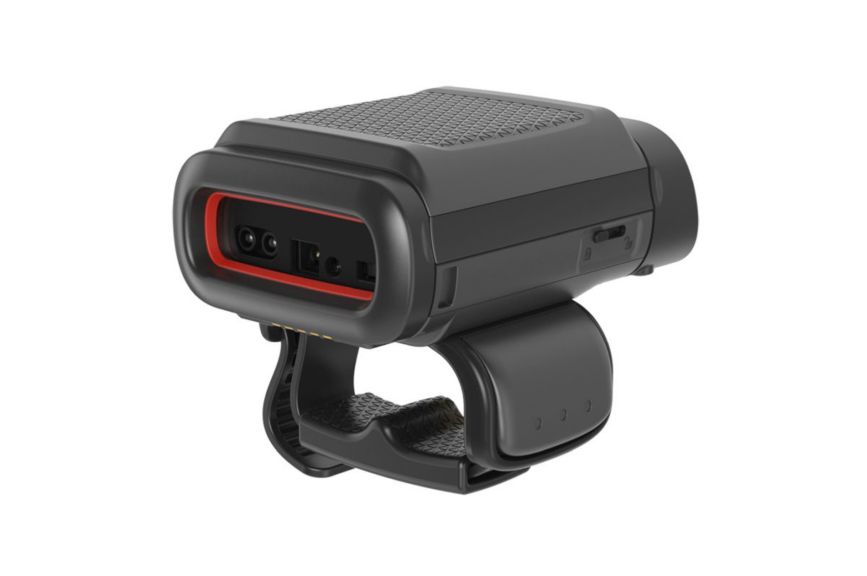

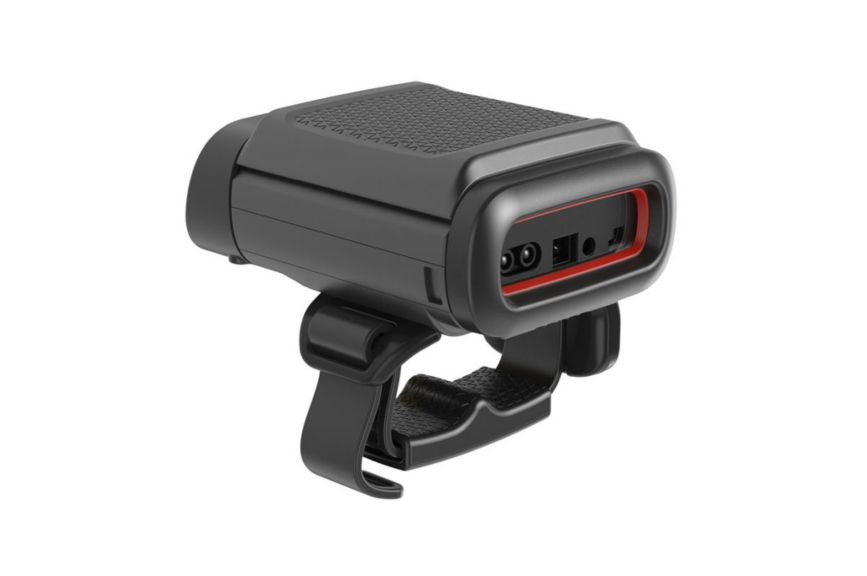

The Honeywell 8680i Wearable Mini Mobile Computer is an advanced compact, ergonomic, high-performance Bluetooth®-wearable scanning solution worn on one hand and designed to help businesses streamline high-volume workflows such as picking, sorting, putaway, and packing for increased speed and efficiency with every transaction.The Honeywell 8680i Wearable Mini Mobile Computer is a compact, high-performance, hands-free cordless scanner designed to help businesses improve workflow efficiency with every scanning transaction, reducing operational slowdown and support costs, and improving productivity.Available in a Standard model for simple Bluetooth-paired data collection or an Advanced model for standalone operation in directed workflows, the 8680i wearable mini mobile can add efficiency and effectiveness to the most common tasks.The Standard version offers lightweight, ergonomic Bluetooth-wearable scanning with clear communication of wireless connection, battery status, and scan results. With Wi-Fi, a customizable user-facing display, and a two-button interface, the Advanced model enables streamlined workflows with a single device vs. a scanner and mobile computer combination. Key information can be presented to the worker on the display to enable task-specific responses (for example, confirm action completion or mark an exception).Flexible configuration options can be tailored to the work environment with a choice of a two-finger ring or a glove option.
- The 8680i wearable mini mobile is designed to speed frequent scanning tasks, leaving hands free to do the job needed.
- Engineered for 2,000 0.5-meter (1.6-feet) tumbles, the 8680i wearable mini mobile is built to endure rugged work environments.
- Honeywell Operational Intelligence workflow analytics to manage battery population lifecycle, ensuring uninterrupted full-shift operation, simple deployment of setting and firmware updates.
- Advanced version offers customizable line-of-sight screen, Wi-Fi, and SDK for application development, enabling the 8680i device to support streamlined work flows as a standalone device, replacing scanner + mobile computer alternatives.

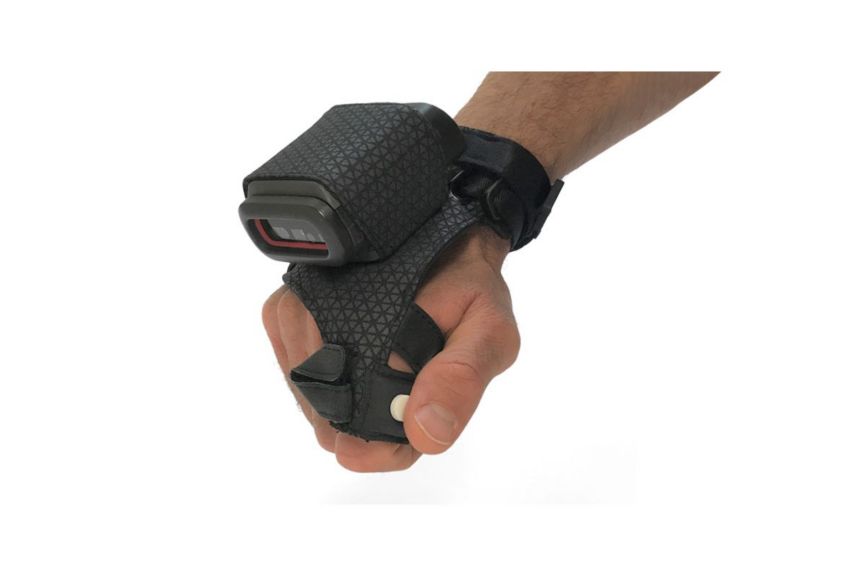

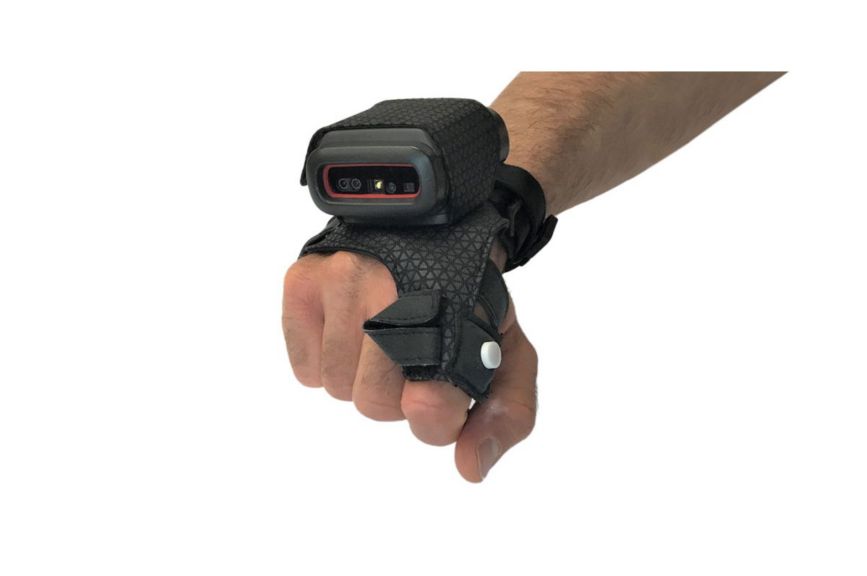

- Field-reconfigurable accessories to the device module enable ring or glove form factor: extended or slim batteries tailor size/weight to duty cycle needs: Standard or Advanced versions to fit work flow needs.
Specifications
Features
- Features
- Built Rugged for the Real World
- Customizable to Fit Application
- Ergonomic, Lightweight Design
- Honeywell Connected Workflow Analytics
Scanning Specifications
- Skew
- 60
- Decode Capability
- 1D/2D
- Motion Tolerance
- Up to 584 cm (230 in)/second
- Number of Scans
- 8000
- Scanning Range
- Standard range (SR)
- Scan Pattern
- Omni-Directional Area Image
- Brightness
- 0 - 100000 lux
- Pitch
- 45
Network
- Bluetooth Specifications
- v4.1
Hardware
- Engine Type
- 2D
Environmental
- Storage Temperature Range
- - 20 - 60 °C
- - 4 - 140 °F
- Operating Humidity
- 0 - 95 %
Standards & Approvals
- Drop Specifications
- 30 1.5 m (4.9 ft) drops to concrete
- Protection Ratings
- IP54
Others
- Operating Temperature
- - 20 - 50 °C
- - 4 - 122 °F
- Warranty Duration
- 2 yr
- Brand
- Honeywell
- Power Connector Type
- Cordless
- Scan Distance
- Standard Range (0-1m)
- Connectivity
- Bluetooth
- Bluetooth / Wi-fi
- Battery Type
- Li-ion Battery
- IP Rating
- IP54
- Charging
- Contact Charging
Features
- Features
- Built Rugged for the Real World
- Customizable to Fit Application
- Ergonomic, Lightweight Design
- Honeywell Connected Workflow Analytics
Scanning Specifications
- Skew
- 60
- Decode Capability
- 1D/2D
- Motion Tolerance
- Up to 584 cm (230 in)/second
- Number of Scans
- 8000
- Scanning Range
- Standard range (SR)
- Scan Pattern
- Omni-Directional Area Image
- Brightness
- 0 - 100000 lux
- Pitch
- 45
Network
- Bluetooth Specifications
- v4.1
Hardware
- Engine Type
- 2D
Environmental
- Storage Temperature Range
- - 20 - 60 °C
- - 4 - 140 °F
- Operating Humidity
- 0 - 95 %
Standards & Approvals
- Drop Specifications
- 30 1.5 m (4.9 ft) drops to concrete
- Protection Ratings
- IP54
Others
- Operating Temperature
- - 20 - 50 °C
- - 4 - 122 °F
- Warranty Duration
- 2 yr
- Brand
- Honeywell
- Power Connector Type
- Cordless
- Scan Distance
- Standard Range (0-1m)
- Connectivity
- Bluetooth
- Bluetooth / Wi-fi
- Battery Type
- Li-ion Battery
- IP Rating
- IP54
- Charging
- Contact Charging
- Features : Built Rugged for the Real World|Customizable to Fit Application|Ergonomic, Lightweight Design|Honeywell Connected Workflow Analytics
- Skew : 60
- Decode Capability : 1D/2D
- Motion Tolerance : Up to 584 cm (230 in)/second
- Number of Scans : 8000
- Scanning Range : Standard range (SR)
- Scan Pattern : Omni-Directional Area Image
- Brightness : 0 - 100000 lux
- Pitch : 45
- Bluetooth Specifications : v4.1
- Engine Type : 2D
- Storage Temperature Range : - 20 - 60 °C|- 4 - 140 °F
- Operating Temperature : - 20 - 50 °C|- 4 - 122 °F
- Operating Humidity : 0 - 95 %
- Drop Specifications : 30 1.5 m (4.9 ft) drops to concrete
- Protection Ratings : IP54
- Warranty Duration : 2 yr
- Brand : Honeywell
- Power Connector Type : Cordless
- Scan Distance : Standard Range (0-1m)
- Connectivity : Bluetooth|Bluetooth / Wi-fi
- Battery Type : Li-ion Battery
- IP Rating : IP54
- Charging : Contact Charging
