    Wearable

    8670 Wireless Ring Wearable Scanner

    8670 Wireless Ring Wearable Scanner

    Overview

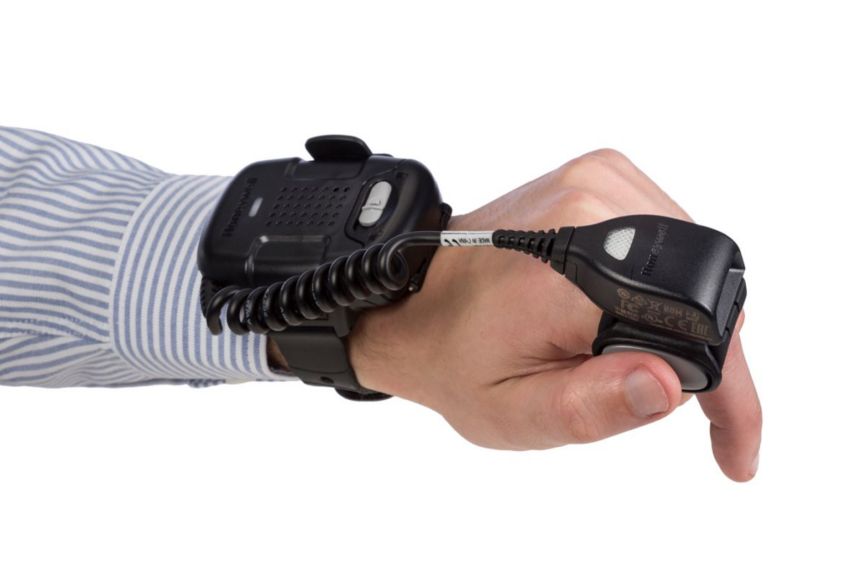

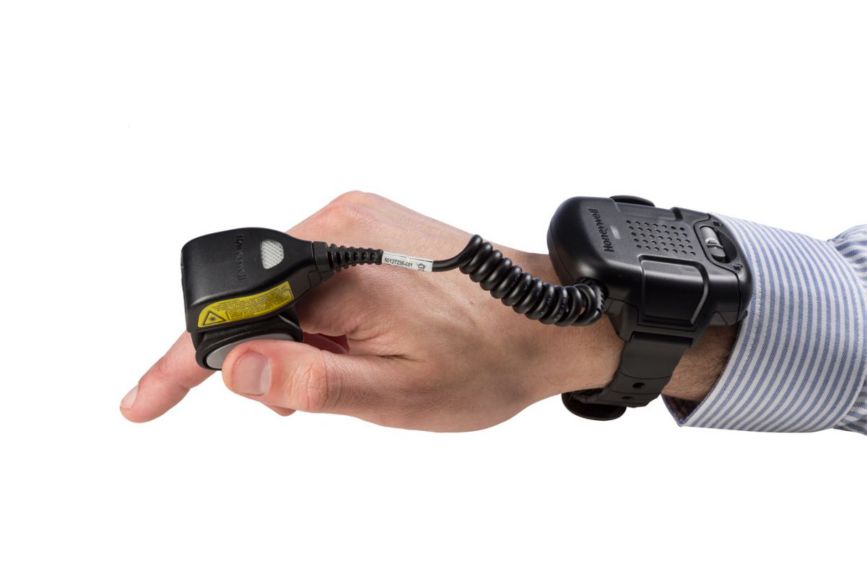

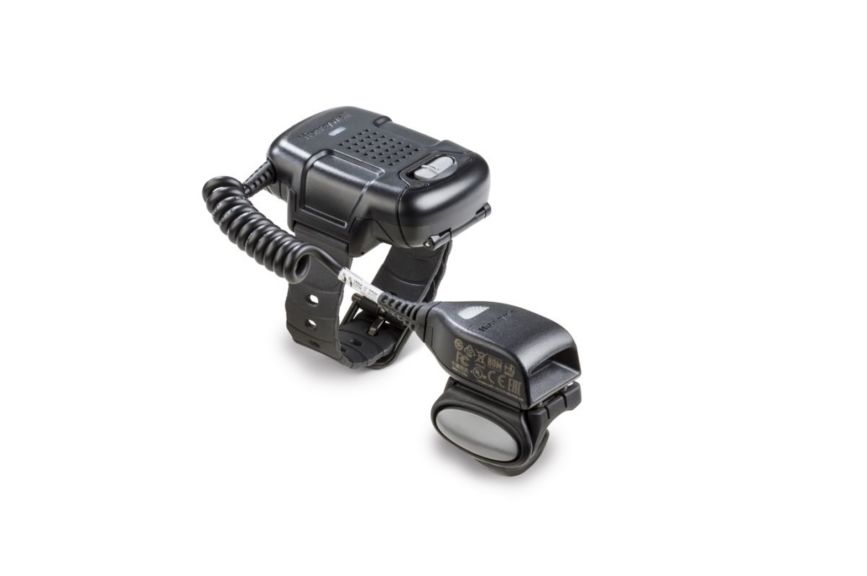

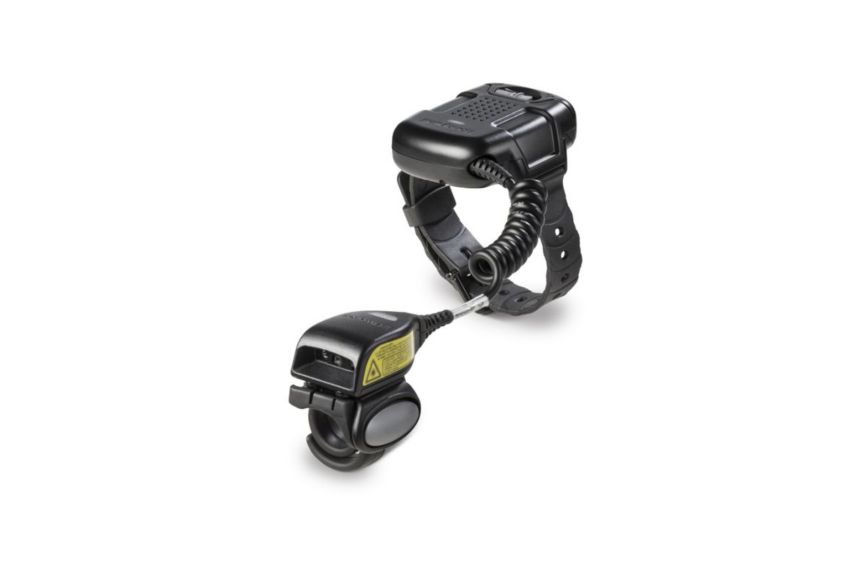

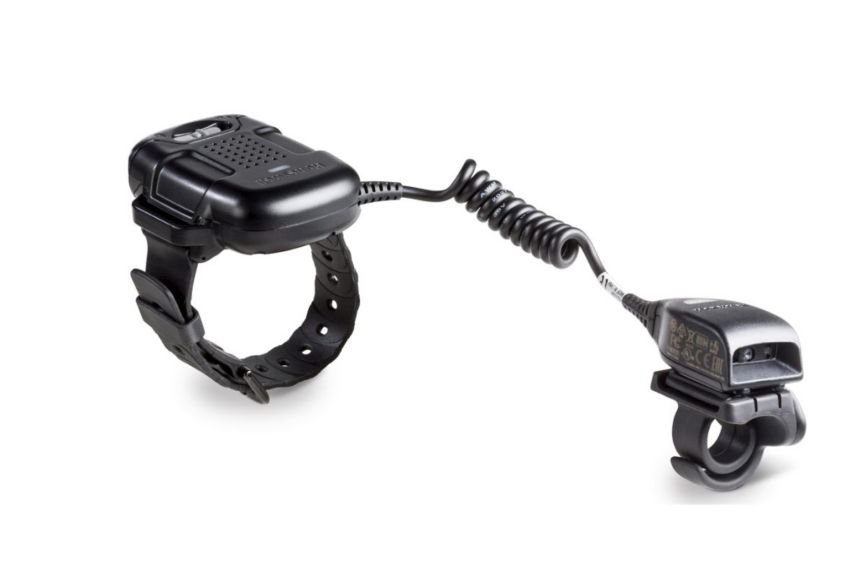

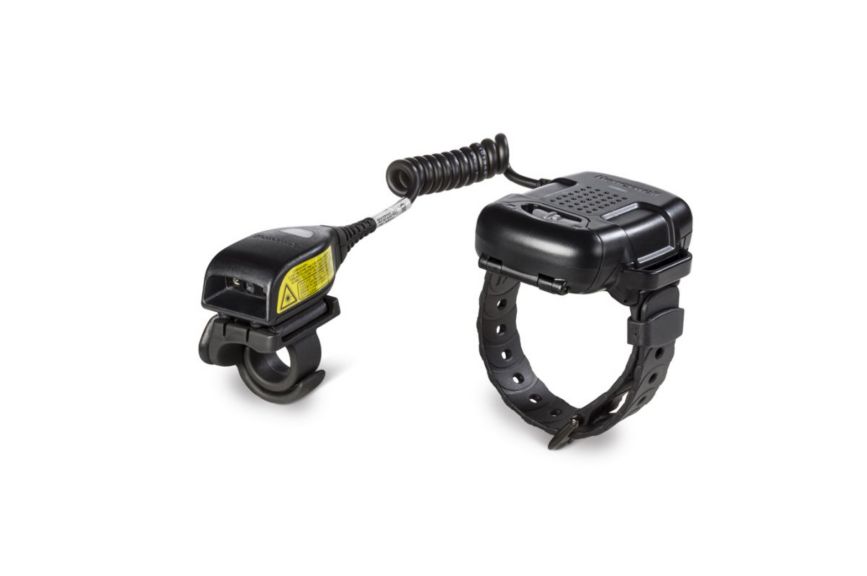

    The Honeywell 8670 Wireless Ring Scanner with Bluetooth®: technology brings the exceptional 1D and 2D scan performance of the Xenon and Granit™: scanners to a wearable form factor. Plus, we optimized its ergonomic, rugged design for harsh use in tough environments.

    • Ergonomic two-piece design allows uninterrupted freedom to use both hands for handling objects while quickly scanning codes. Low profile and light weight of the scanner piece mounted on the finger provides comfortable usage and user satisfaction.
    • Soft elastomeric finger and wrist straps improve comfort and eliminate hygiene concerns because they are impervious to moisture, are easily cleaned and are quickly interchangeable between shifts.
    • Incorporates the Honeywell Ultra-Slim Area-Imaging engine for aggressive, omnidirectional 1D and 2D barcode scanning. High motion tolerance for scanning moving products and the ability to read poor-quality or damaged barcodes results in high user productivity.
    • Rugged design enables the scanner to survive harsh usage and extreme environments while providing optimal scan performance. The scanner is built to survive drops to concrete and hits to metal racks and conveyor belts.
    • Bluetooth wireless technology provides freedom of movement up to 10 m (33 ft) from the host device. Pairs quickly with Apple iOS, Android and Windows Mobile devices as well as standard PCs and laptops equipped with Bluetooth wireless technology.

    The Honeywell 8670 Wireless Ring Scanner with Bluetooth®: technology brings the exceptional 1D and 2D scan performance of the Xenon™: and Granit™: scanners to a wearable form factor.

    Features and benefits include:

    • Ergonomic, rugged design that’:s comfortable to wear and optimized for use in harsh environments
    • Excellent motion tolerance and fast decode speeds for omnidirectional 1D and 2D barcode scanning boosts productivity
    • Improved scanning performance on poor-quality or damaged barcodes saves you time

    The 8670 Wireless Ring Scanner has an ergonomic two-piece design. The soft elastomeric finger and wrist straps are very comfortable and eliminate hygiene concerns.Simply mount the device’:s small, lightweight scanner on your finger. Then wear the Bluetooth module comfortably on your wrist.This flexible design gives you unsurpassed freedom of movement to scan barcodes quickly, safely and comfortably, while letting you keep both hands free for related tasks.And to ensure highly productivity scanning, the design also enables multi-sensory feedback through a vibrator, beeper, LEDs and aimer.Your can count on the 8670 Wireless Ring Scanner to perform. The device’:s rugged design enables it to survive extreme temperatures, moist and dusty environments, and high electrostatic discharges. It can also survive harsh use, including drops to concrete and hits to metal racks and conveyor belts.Plus, the scanner’:s optimized cable design maximizes cable durability in extreme use cases.

    Specifications

    Features

    • Features
      • Aggressive 2D Scanning
      • Bluetooth technology
      • Ergonomic Design
      • Rugged Design

    Dimensions

    • Overall Dimensions
      • 2 x 1.2 x 1.2 in
      • 5 x 3 x 3 cm

    Scanning Specifications

    • Pitch
      • 45
    • Motion Tolerance
      • Up to 584 cm/s (230 in/s) in total darkness with 100% UPC at optimal focus
    • Scanning Range
      • Standard range (SR)
    • Number of Scans
      • 6500
    • Decode Capability
      • 1D/2D
    • Brightness
      • 0 - 100000 lux
    • Skew
      • 60
    • Scan Pattern
      • Area Image

    Network

    • Bluetooth Specifications
      • v2.1

    Hardware

    • Engine Type
      • 2D

    Environmental

    • Storage Temperature Range
      • - 20 - 60 °C
      • - 4 - 140 °F

    Standards & Approvals

    • Protection Ratings
      • IP54
    • Drop Specifications
      • 30 1.5 m (5 ft) drops to concrete across temperature range

    Others

    • Data Rate
      • 1
    • Operating temperature
      • - 20 - 50 °C
      • - 4 - 122 °F
    • Warranty Duration
      • 3 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Cordless

    Features

    • Features
      • Aggressive 2D Scanning
      • Bluetooth technology
      • Ergonomic Design
      • Rugged Design

    Dimensions

    • Overall Dimensions
      • 2 x 1.2 x 1.2 in
      • 5 x 3 x 3 cm

    Scanning Specifications

    • Pitch
      • 45
    • Motion Tolerance
      • Up to 584 cm/s (230 in/s) in total darkness with 100% UPC at optimal focus
    • Scanning Range
      • Standard range (SR)
    • Number of Scans
      • 6500
    • Decode Capability
      • 1D/2D
    • Brightness
      • 0 - 100000 lux
    • Skew
      • 60
    • Scan Pattern
      • Area Image

    Network

    • Bluetooth Specifications
      • v2.1

    Hardware

    • Engine Type
      • 2D

    Environmental

    • Storage Temperature Range
      • - 20 - 60 °C
      • - 4 - 140 °F

    Standards & Approvals

    • Protection Ratings
      • IP54
    • Drop Specifications
      • 30 1.5 m (5 ft) drops to concrete across temperature range

    Others

    • Data Rate
      • 1
    • Operating temperature
      • - 20 - 50 °C
      • - 4 - 122 °F
    • Warranty Duration
      • 3 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Cordless
    • Features : Aggressive 2D Scanning|Bluetooth technology|Ergonomic Design|Rugged Design
    • Overall Dimensions : 2 x 1.2 x 1.2 in|5 x 3 x 3 cm
    • Pitch : 45
    • Motion Tolerance : Up to 584 cm/s (230 in/s) in total darkness with 100% UPC at optimal focus
    • Scanning Range : Standard range (SR)
    • Number of Scans : 6500
    • Decode Capability : 1D/2D
    • Brightness : 0 - 100000 lux
    • Skew : 60
    • Scan Pattern : Area Image
    • Bluetooth Specifications : v2.1
    • Data Rate : 1
    • Engine Type : 2D
    • Operating temperature : - 20 - 50 °C|- 4 - 122 °F
    • Storage Temperature Range : - 20 - 60 °C|- 4 - 140 °F
    • Protection Ratings : IP54
    • Drop Specifications : 30 1.5 m (5 ft) drops to concrete across temperature range
    • Warranty Duration : 3 yr
    • Brand : Honeywell
    • Power Connector Type : Cordless
