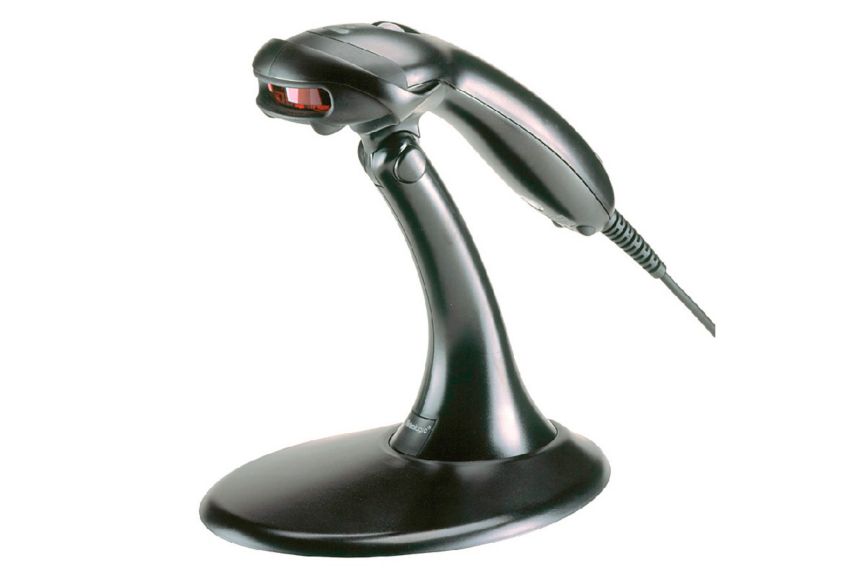

Voyager 9540 General Duty Scanner
Voyager 9540 General Duty Scanner
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product is discontinued. We may offer firmware, drivers and manuals for your convenience, as well as online tech support. If you require additional support, please contact us using the links above.
Product Discontinuation Date:June 30, 2024
Service & Support Discontinuation Date: December 31, 2027
Honeywell&apos:s VoyagerCG™: 9540 handheld, single-line laser scanners feature patented automatic infrared activation and can decode all standard 1D barcodes, including GS1 DataBar™:. The VoyagerCG handheld barcode scanner also includes CodeGate™: technology for menu scanning applications.
- Automatic Trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in the stand.
- 650-nanometer Laser: High-visibility laser allows user to place laser line on selected bar code.
- CodeGate Technology (VoyagerCG 9540 only): Zero in on desired code and complete data transmission with the push of a single button—:ideal for menu scanning applications.
- Parsing (Data Editing): Format bar code data to meet host system’:s specific requirements.
- Flash ROM: Future proof POS system with free firmware updates via MetroSet®:2 software and standard PC. The VoyagerCG 9540 handheld, single-line laser scanners offer aggressive scanning of all standard 1D barcodes.Uniting form with function, the Voyager series has become the industry benchmark for value and performance. These sleek scanners feature patented, automatic infrared activation and decode all standard 1D barcodes, including GS1 DataBar™: (formerly known as RSS codes). The VoyagerCG 9540 also includes patented CodeGate™: technology, which allows you to easily target the desired barcode and complete data transmission with the press of a single button.For presentation scanning, Honeywell offers a stand with automatic in-stand detection technology.
Specifications
Features
- Features
- Automatic Trigger
- CodeGate™ Technology
- MetroSet™2 Software
Dimensions
- Overall Dimensions
- 19.8 x 7.8 x 5.6 cm
- 7.8 x 3.1 x 2.2 in
Scanning Specifications
- Skew
- 52
- Scanning Range
- Standard range (SR)
- Scan Pattern
- Single Scan Line
- Print Contrast
- 35
- Pitch
- 68
- Depth of Field
- 0 - 10 in
- Decode Capability
- 1D
Network
- Bluetooth Specifications
- N/A
- Bluetooth
- No
Hardware
- Aimer Type
- LED
- Wireless
- No
- Host System Interface
- KBW
- Laser Emulation
- Light Pen Wand Emulation
- OCIA
- RS-232
- RS-485
- USB
- Engine Type
- 1D Laser
Electrical
- Standby Power
- 0.6
Environmental
- Storage Temperature Range
- - 40 - 140 °F
- - 40 - 60 °C
- Operating Humidity
- 5 - 95 %
Standards & Approvals
- Drop Specifications
- Multiple 1.5 m (5 ft) drops
Others
- Form Factor
- Curved
- Operating Power
- 0.825 W
- Input Voltage
- 5 V DC
- Operating Temperature
- 0 - 40 °C
- 32 - 104 °F
- Warranty Duration
- 5 yr
- Brand
- Honeywell
- Power Connector Type
- Corded
Features
- Features
- Automatic Trigger
- CodeGate™ Technology
- MetroSet™2 Software
Dimensions
- Overall Dimensions
- 19.8 x 7.8 x 5.6 cm
- 7.8 x 3.1 x 2.2 in
Scanning Specifications
- Skew
- 52
- Scanning Range
- Standard range (SR)
- Scan Pattern
- Single Scan Line
- Print Contrast
- 35
- Pitch
- 68
- Depth of Field
- 0 - 10 in
- Decode Capability
- 1D
Network
- Bluetooth Specifications
- N/A
- Bluetooth
- No
Hardware
- Aimer Type
- LED
- Wireless
- No
- Host System Interface
- KBW
- Laser Emulation
- Light Pen Wand Emulation
- OCIA
- RS-232
- RS-485
- USB
- Engine Type
- 1D Laser
Electrical
- Standby Power
- 0.6
Environmental
- Storage Temperature Range
- - 40 - 140 °F
- - 40 - 60 °C
- Operating Humidity
- 5 - 95 %
Standards & Approvals
- Drop Specifications
- Multiple 1.5 m (5 ft) drops
Others
- Form Factor
- Curved
- Operating Power
- 0.825 W
- Input Voltage
- 5 V DC
- Operating Temperature
- 0 - 40 °C
- 32 - 104 °F
- Warranty Duration
- 5 yr
- Brand
- Honeywell
- Power Connector Type
- Corded
- Form Factor : Curved
- Features : Automatic Trigger|CodeGate™ Technology|MetroSet™2 Software
- Overall Dimensions : 19.8 x 7.8 x 5.6 cm|7.8 x 3.1 x 2.2 in
- Skew : 52
- Scanning Range : Standard range (SR)
- Scan Pattern : Single Scan Line
- Print Contrast : 35
- Pitch : 68
- Depth of Field : 0 - 10 in
- Decode Capability : 1D
- Bluetooth Specifications : N/A
- Bluetooth : No
- Aimer Type : LED
- Wireless : No
- Host System Interface : KBW|Laser Emulation|Light Pen Wand Emulation|OCIA|RS-232|RS-485|USB
- Engine Type : 1D Laser
- Standby Power : 0.6
- Operating Power : 0.825 W
- Input Voltage : 5 V DC
- Storage Temperature Range : - 40 - 140 °F|- 40 - 60 °C
- Operating Temperature : 0 - 40 °C|32 - 104 °F
- Operating Humidity : 5 - 95 %
- Drop Specifications : Multiple 1.5 m (5 ft) drops
- Warranty Duration : 5 yr
- Brand : Honeywell
- Power Connector Type : Corded
