Vehicle-Mount Computers

Thor VM3 Vehicle-Mounted Computer

Designed for use in the toughest distribution center environments, manufacturing facilities and freight operations, Thor™ VM3 is the industry’s most capable full-size vehicle-mounted mobile computer, delivering unmatched operational efficiencies.

Overview

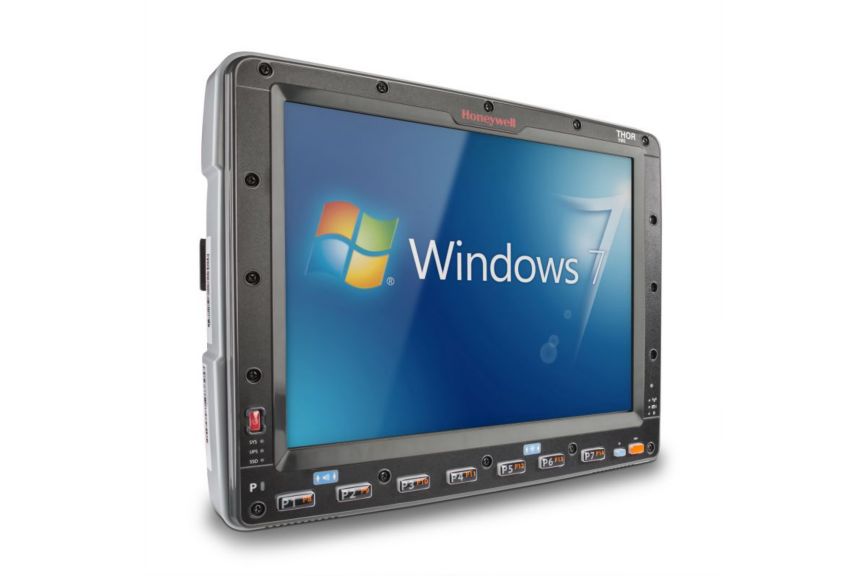

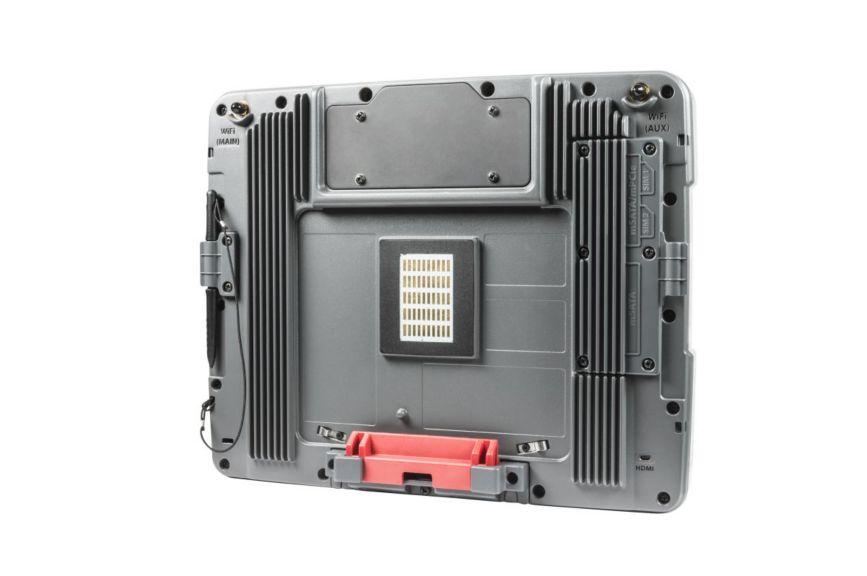

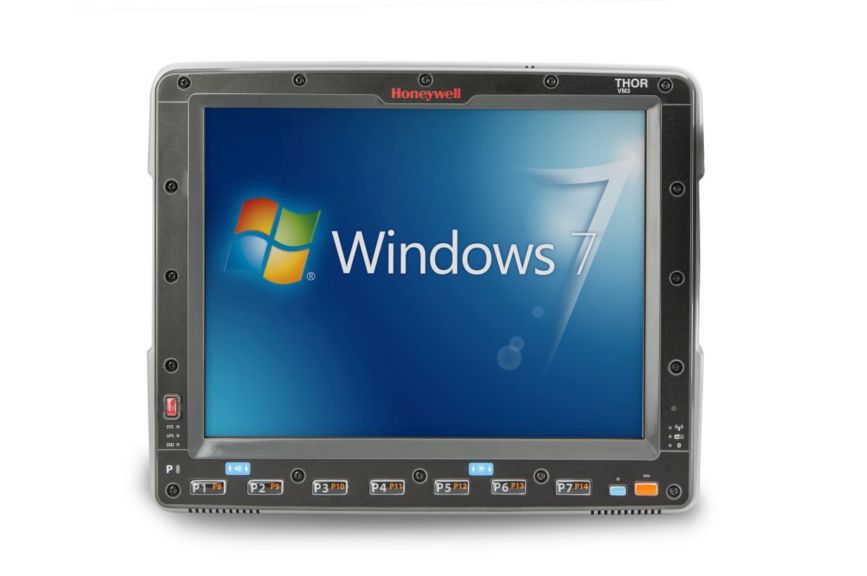

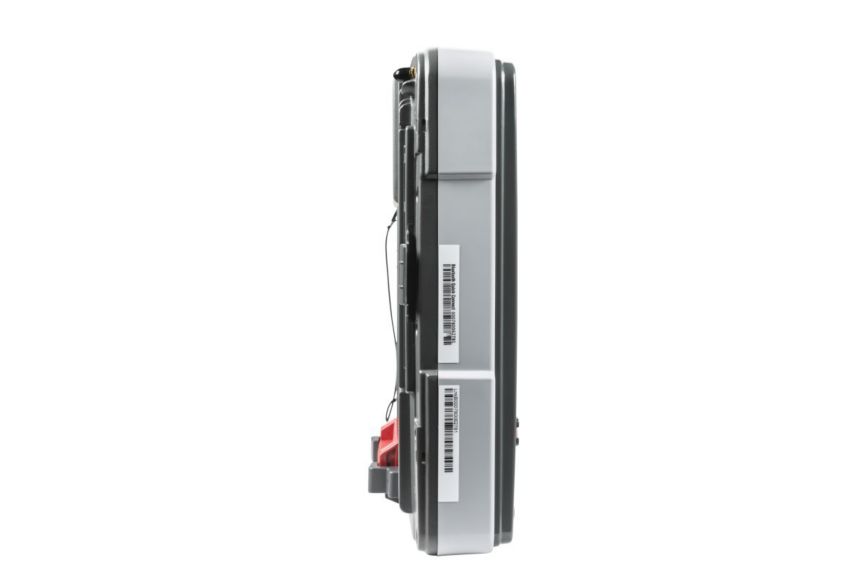

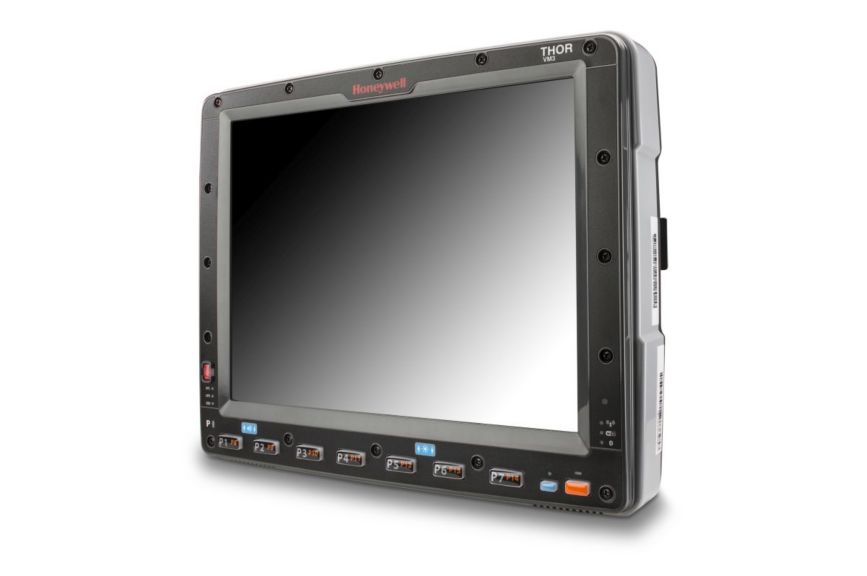

vm3 gallery image
The Thor™ VM3 vehicle mounted computer is purpose-built for demanding environments like distribution centers, manufacturing facilities, and freight operations. The VM3 computer lets you choose the options you need to maximize efficiencies in the most demanding environments – indoors, outdoors, in a warehouse, on a shop floor, or in intermodal facilities.

Seamless Integration: The VM3 runs on Windows IoT Enterprise LTSC 2019 designed for fixed purpose devices performing critical business functions where functionality, features, and service must remain constant for the long lifecycle of the device.

Maximize Productivity: The VM3 features a 30.73 cm (12.1 in) display and innovative functionalities that enhance productivity. Driven by an Intel® x86 architecture and a Dual Core 1.5 GHz processor, the VM3 delivers exceptional performance for data-intensive tasks.

Unmatched Durability: Designed to withstand extreme conditions, the VM3's rugged design minimizes maintenance needs. The Smart Dock enables quick mounting and removal, maximizing efficiency by allowing rapid shifts between vehicles as workload demands alter. The field-replaceable front panel allows on-site personnel to easily service the high demand user interfaces, minimizing downtime and operational expenses.
With these features, the Thor VM3 maximizes productivity and minimizes total cost of ownership for your operations.
Specifications

Features

  • Application
    • Distribution
    • Manufacturing
  • Features
    • Rugged
    • Smart Dock
    • Versatile
  • Environment
    • Cold Storage
    • Standard
  • Connectivity
    • Wi-Fi

Dimensions

  • Overall Dimensions
    • 12.5 x 10.3 x 2.4 in
    • 31.8 x 26 x 6.2 cm

Network

  • Bluetooth Specifications
    • v2.0

Software & Firmware

  • Operating System Type
    • Windows
  • Operating System
    • Windows 10 IoT Enterprise
    • Windows 7
    • Windows Embedded Compact
    • Windows Embedded Standard

Memory & Data

  • Memory
    • 4 GB RAM

Hardware

  • Touchscreen Type
    • Capacitive- Optimized for Touch
    • Resistive-Touch and Stylus
  • Screensize
    • 12 inch
  • Scan Distance
    • No Scanner
  • Processor
    • 1.5 GHz Dual Core Intel Atom E3826
  • Network
    • WLAN/WWAN
  • Keypad
    • Full Touchscreen
  • Keyboard
    • Touchscreen only
  • Display Size
    • 12.1 in
    • 30.7 cm
  • Display Resolution
    • 1024 x 768
  • Connection Interface
    • Audio
    • CANbus
    • RF Antenna
    • RS-232
    • USB

Environmental

  • Storage Temperature Range
    • - 22 - 122 °F
    • - 30 - 50 °C
  • Operating Temperature
    • - 22 - 122 °F
    • - 30 - 50 °C
  • Operating Humidity
    • 5 - 95 %
  • Cold Storage
    • Cold storage defrosters

Standards & Approvals

  • Vibration Resistance
    • MIL-STD-810F

Service Terms

  • Warranty Duration
    • 1 yr

ERP

  • Brand
    • Honeywell

Others

  • Industry
    • Logistics & Warehouses
    • Manufacturing

Features

  • Application
    • Distribution
    • Manufacturing
  • Features
    • Rugged
    • Smart Dock
    • Versatile
  • Environment
    • Cold Storage
    • Standard
  • Connectivity
    • Wi-Fi

Dimensions

  • Overall Dimensions
    • 12.5 x 10.3 x 2.4 in
    • 31.8 x 26 x 6.2 cm

Network

  • Bluetooth Specifications
    • v2.0

Software & Firmware

  • Operating System Type
    • Windows
  • Operating System
    • Windows 10 IoT Enterprise
    • Windows 7
    • Windows Embedded Compact
    • Windows Embedded Standard

Memory & Data

  • Memory
    • 4 GB RAM

Hardware

  • Touchscreen Type
    • Capacitive- Optimized for Touch
    • Resistive-Touch and Stylus
  • Screensize
    • 12 inch
  • Scan Distance
    • No Scanner
  • Processor
    • 1.5 GHz Dual Core Intel Atom E3826
  • Network
    • WLAN/WWAN
  • Keypad
    • Full Touchscreen
  • Keyboard
    • Touchscreen only
  • Display Size
    • 12.1 in
    • 30.7 cm
  • Display Resolution
    • 1024 x 768
  • Connection Interface
    • Audio
    • CANbus
    • RF Antenna
    • RS-232
    • USB

Environmental

  • Storage Temperature Range
    • - 22 - 122 °F
    • - 30 - 50 °C
  • Operating Temperature
    • - 22 - 122 °F
    • - 30 - 50 °C
  • Operating Humidity
    • 5 - 95 %
  • Cold Storage
    • Cold storage defrosters

Standards & Approvals

  • Vibration Resistance
    • MIL-STD-810F

Service Terms

  • Warranty Duration
    • 1 yr

ERP

  • Brand
    • Honeywell

Others

  • Industry
    • Logistics & Warehouses
    • Manufacturing
  • Application : Distribution|Manufacturing
  • Features : Rugged|Smart Dock|Versatile
  • Environment : Cold Storage|Standard
  • Connectivity : Wi-Fi
  • Overall Dimensions : 12.5 x 10.3 x 2.4 in|31.8 x 26 x 6.2 cm
  • Bluetooth Specifications : v2.0
  • Operating System Type : Windows
  • Operating System : Windows 10 IoT Enterprise|Windows 7|Windows Embedded Compact|Windows Embedded Standard
  • Memory : 4 GB RAM
  • Touchscreen Type : Capacitive- Optimized for Touch|Resistive-Touch and Stylus
  • Screensize : 12 inch
  • Scan Distance : No Scanner
  • Processor : 1.5 GHz Dual Core Intel Atom E3826
  • Network : WLAN/WWAN
  • Keypad : Full Touchscreen
  • Keyboard : Touchscreen only
  • Display Size : 12.1 in|30.7 cm
  • Display Resolution : 1024 x 768
  • Connection Interface : Audio|CANbus|RF Antenna|RS-232|USB
  • Storage Temperature Range : - 22 - 122 °F|- 30 - 50 °C
  • Operating Temperature : - 22 - 122 °F|- 30 - 50 °C
  • Operating Humidity : 5 - 95 %
  • Cold Storage : Cold storage defrosters
  • Vibration Resistance : MIL-STD-810F
  • Warranty Duration : 1 yr
  • Brand : Honeywell
  • Industry : Logistics & Warehouses|Manufacturing
