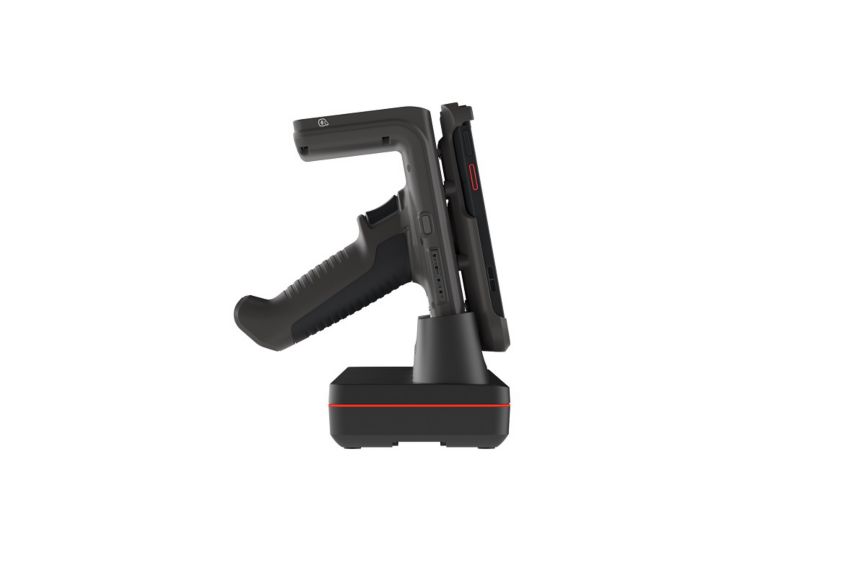

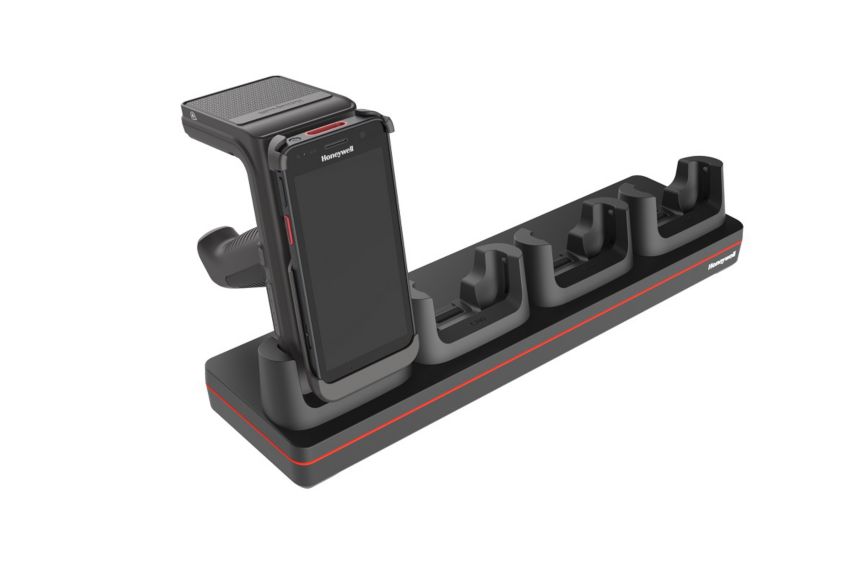

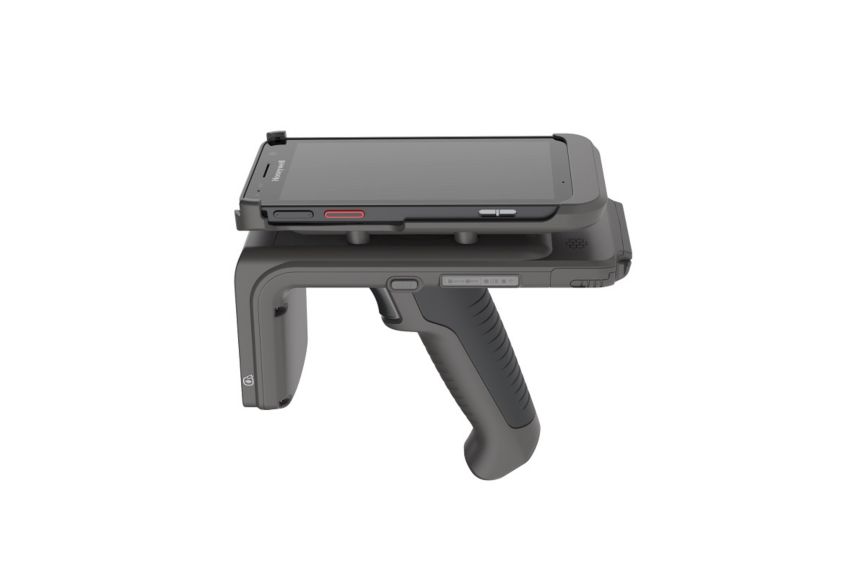

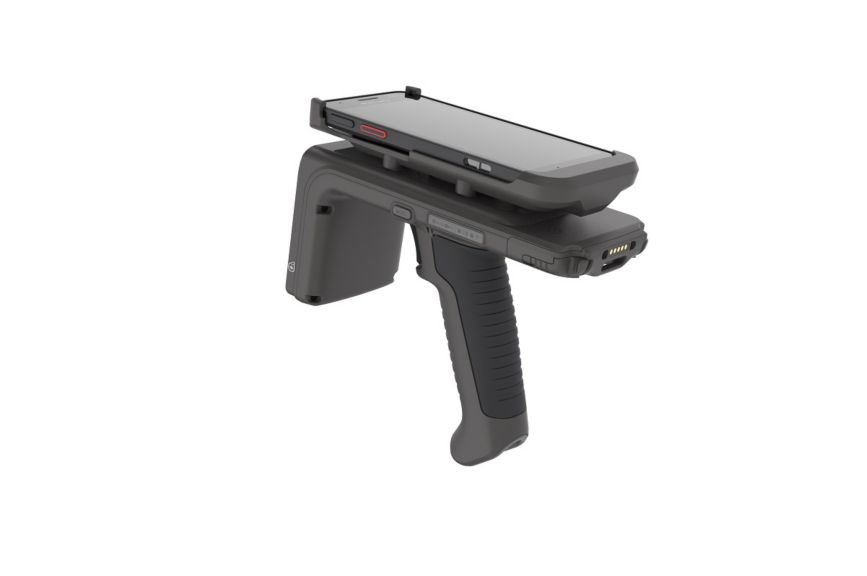

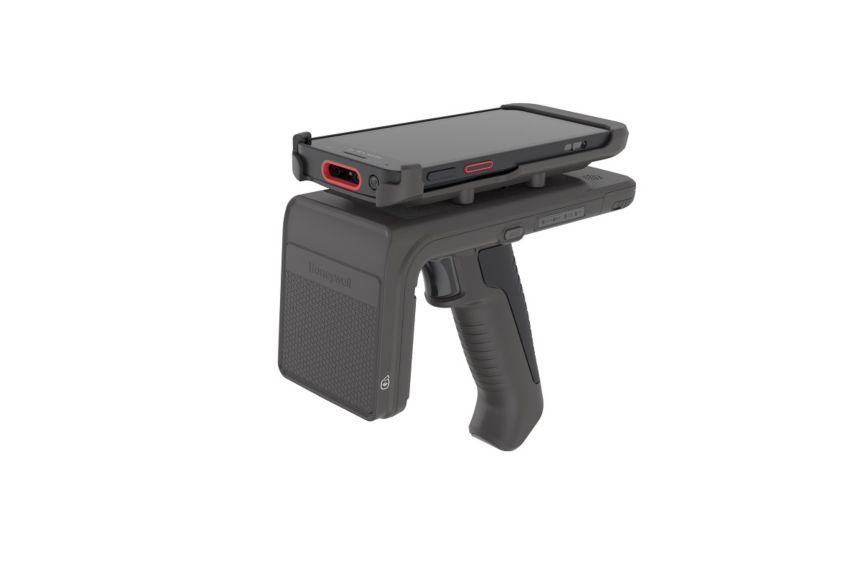

IH45 RFID Handheld Reader
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Specifications
Features
- Compatible Device
- CT30 XP
- CT40/XP
- CT45/XP
- CT60/XP
- EDA51/K
- EDA52
- EDA56
- Features
- Direct USB Connection
- Easy to Charge
- Efficient Read Rate
- Ergonomic Design
- Intergraded NFC Tag Reading
- Large Capacity Battery
- Light weight
Dimensions
- Overall Dimensions
- 190 mm x 79 mm x 154 mm (7.5 in x 3.1 in x 6.1 in)
Network
- RFID Specifications
- EPC Class 1 Gen2
- ISO 18000- 6c
- ISO 18000-63
- RFID Frequency Band
- EU: 865 MHz to 868 MHz
- US: 902 MHz to 928 MHz
- Bluetooth Specifications
- V5.0 Bluetooth and BLE
Electrical
- Battery Types
- Li-ion
Environmental
- Storage Temperature Range
- -20°C to 60°C
- Operating Humidity
- 5% to 95% non-condensing
Standards & Approvals
- Protection Ratings
- IP54
- Drop Specifications
- Multiple 1.2 m (4 ft) drops to concrete (0° to 40°)
- Tumble Specifications
- 1000 tumbles at 0.5 m (1.6 ft)
Others
- Battery capacity
- 4000mAh
- Operating temperature
- -10°C to 40°C
Features
- Compatible Device
- CT30 XP
- CT40/XP
- CT45/XP
- CT60/XP
- EDA51/K
- EDA52
- EDA56
- Features
- Direct USB Connection
- Easy to Charge
- Efficient Read Rate
- Ergonomic Design
- Intergraded NFC Tag Reading
- Large Capacity Battery
- Light weight
Dimensions
- Overall Dimensions
- 190 mm x 79 mm x 154 mm (7.5 in x 3.1 in x 6.1 in)
Network
- RFID Specifications
- EPC Class 1 Gen2
- ISO 18000- 6c
- ISO 18000-63
- RFID Frequency Band
- EU: 865 MHz to 868 MHz
- US: 902 MHz to 928 MHz
- Bluetooth Specifications
- V5.0 Bluetooth and BLE
Electrical
- Battery Types
- Li-ion
Environmental
- Storage Temperature Range
- -20°C to 60°C
- Operating Humidity
- 5% to 95% non-condensing
Standards & Approvals
- Protection Ratings
- IP54
- Drop Specifications
- Multiple 1.2 m (4 ft) drops to concrete (0° to 40°)
- Tumble Specifications
- 1000 tumbles at 0.5 m (1.6 ft)
Others
- Battery capacity
- 4000mAh
- Operating temperature
- -10°C to 40°C
- Compatible Device : CT30 XP|CT40/XP|CT45/XP|CT60/XP|EDA51/K|EDA52|EDA56
- Features : Direct USB Connection|Easy to Charge|Efficient Read Rate|Ergonomic Design|Intergraded NFC Tag Reading|Large Capacity Battery|Light weight
- Overall Dimensions : 190 mm x 79 mm x 154 mm (7.5 in x 3.1 in x 6.1 in)
- RFID Specifications : EPC Class 1 Gen2|ISO 18000- 6c|ISO 18000-63
- RFID Frequency Band : EU: 865 MHz to 868 MHz|US: 902 MHz to 928 MHz
- Bluetooth Specifications : V5.0 Bluetooth and BLE
- Battery capacity : 4000mAh
- Battery Types : Li-ion
- Storage Temperature Range : -20°C to 60°C
- Operating temperature : -10°C to 40°C
- Operating Humidity : 5% to 95% non-condensing
- Protection Ratings : IP54
- Drop Specifications : Multiple 1.2 m (4 ft) drops to concrete (0° to 40°)
- Tumble Specifications : 1000 tumbles at 0.5 m (1.6 ft)
