    IH40 RFID Handheld Reader

    IH40 RFID Handheld Reader

    Overview
    Honeywell's next generation IH40 RFID Reader caters to workers in Retail, Warehouse, Transport & Logistics and Manufacturing.
    IH40 RFID Reader augments retail’s storefront and warehouse inventory management, increasing inventory accuracy, reducing demand mismatch, and keeping inventory stocked. Accurate picking through IH40 drives omni channel enablement.
    With IH40 RFID readers warehouse workers can significantly reduce travel time when picking and putting away inventory, and dramatically improve the accuracy of inventory counts, order fulfillment, shipping & verification and proof of delivery. In Transport & Logistic vertical, workers can increase sorting and delivery efficiencies. Manufacturing workers can keep inventory stocked for the manufacturing line thus increasing overall output.
    Workers can count inventory in the store, warehouse, and manufacturing plant 25 times faster than with barcodes, often in a matter of a few hours, enabling more frequent inventory updates and closer management of inventory levels.
    Lightweight and ergonomically designed, Honeywell IH40, paired with a Honeywell high performance mobile computer, offers best in class UHF plus 1D/2D scanning, RFID range and speed. IH40 allows workers to capture RFID tags and barcodes with same device combo. Ideal for standard-range RFID applications, the IH40 can capture RFID tags up to 6 m (20 ft) away. The high capacity field-replaceable battery typically lasts a full shift, boosting task speed and ease of use.
    Key features include:
    • IH40 combined with a handheld device is a complete solution for retail inventory count, inventory management and other workflows, which increases revenue, margins, and customer engagement.
    • High tag read rate increases efficiency and reduces costs.

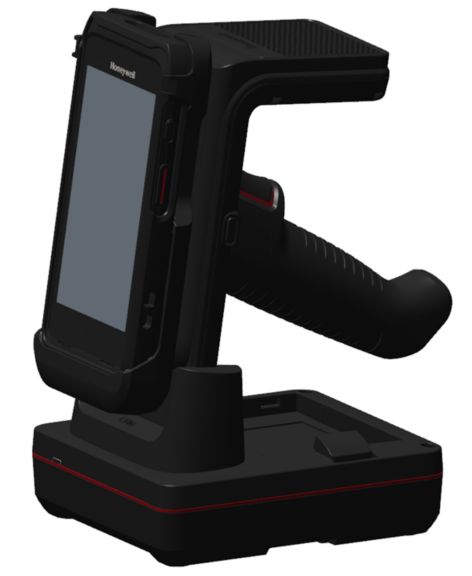

    • The IH40 and mobile computer attached charge together on a single charging station making it easy and faster to charge; Multiple charging options available for device and battery charging
    • Connects directly to device, zeroing device pairing time
    • Ergonomic handle, balanced design provides extended use in different usage scenarios
    • Exceptional read range, increases productivity and decreases manual effort
    • Large, 4000 mAH battery enables uninterrupted use over long periods, with easy to change battery flap


    Specifications

    Features

    • Compatible Device
      • CT40(booted and non booted),EDA51/K, CT60/XP, CT45 (booted and non booted)

    Dimensions

    • Overall Dimensions
      • Without Mobile Computer 190 x 79 x 154 mm

    Network

    • RFID Specifications
      • EPC Class 1 Gen2, ISO 18000-6c, ISO 18000-63
    • RFID Frequency Band
      • EU: 865-868 MHz
      • US: 902-928 MHz
    • Bluetooth Specifications
      • V.5.0
      • DIS Profile, BAS Profile
      • Simple Secure Pairing

    Environmental

    • Operating Humidity
      • 5% to 95% non-condensing

    Standards & Approvals

    • Tumble Specifications
      • 1000 tumbles at 1.6ft/0.5m
    • Drop Specifications
      • Multiple 4ft/1.2m drops to concrete (0° C - 40° C)

    Others

    • Operating temperature
      • -10° C to 40° C

    Features

    • Compatible Device
      • CT40(booted and non booted),EDA51/K, CT60/XP, CT45 (booted and non booted)

    Dimensions

    • Overall Dimensions
      • Without Mobile Computer 190 x 79 x 154 mm

    Network

    • RFID Specifications
      • EPC Class 1 Gen2, ISO 18000-6c, ISO 18000-63
    • RFID Frequency Band
      • EU: 865-868 MHz
      • US: 902-928 MHz
    • Bluetooth Specifications
      • V.5.0
      • DIS Profile, BAS Profile
      • Simple Secure Pairing

    Environmental

    • Operating Humidity
      • 5% to 95% non-condensing

    Standards & Approvals

    • Tumble Specifications
      • 1000 tumbles at 1.6ft/0.5m
    • Drop Specifications
      • Multiple 4ft/1.2m drops to concrete (0° C - 40° C)

    Others

    • Operating temperature
      • -10° C to 40° C
    • Compatible Device : CT40(booted and non booted),EDA51/K, CT60/XP, CT45 (booted and non booted)
    • Overall Dimensions : Without Mobile Computer 190 x 79 x 154 mm
    • RFID Specifications : EPC Class 1 Gen2, ISO 18000-6c, ISO 18000-63
    • RFID Frequency Band : EU: 865-868 MHz | US: 902-928 MHz
    • Bluetooth Specifications : V.5.0 | DIS Profile, BAS Profile | Simple Secure Pairing
    • Operating temperature : -10° C to 40° C
    • Operating Humidity : 5% to 95% non-condensing
    • Tumble Specifications : 1000 tumbles at 1.6ft/0.5m
    • Drop Specifications : Multiple 4ft/1.2m drops to concrete (0° C - 40° C)
