    Rugged Handheld

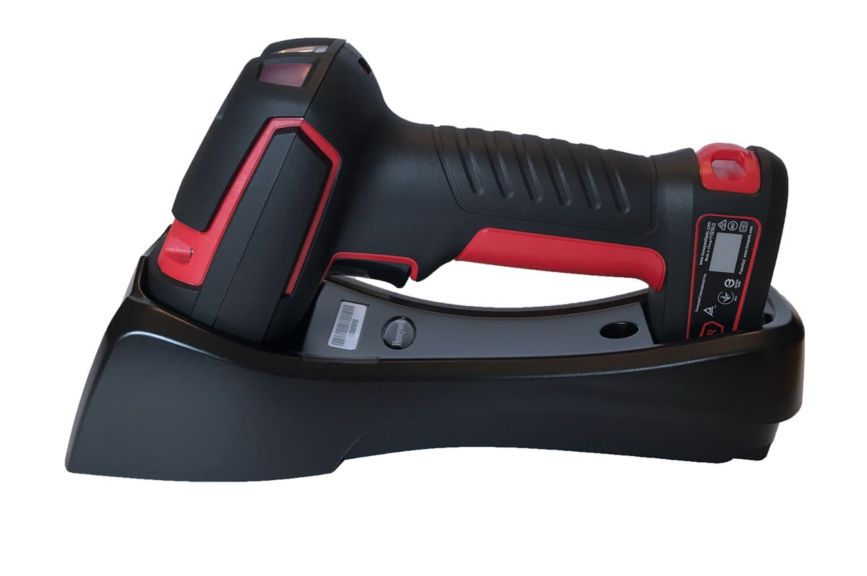

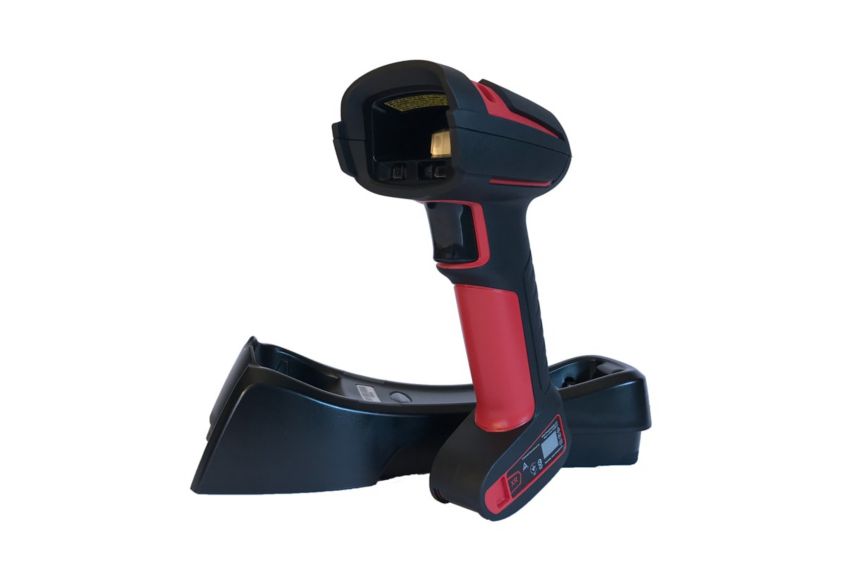

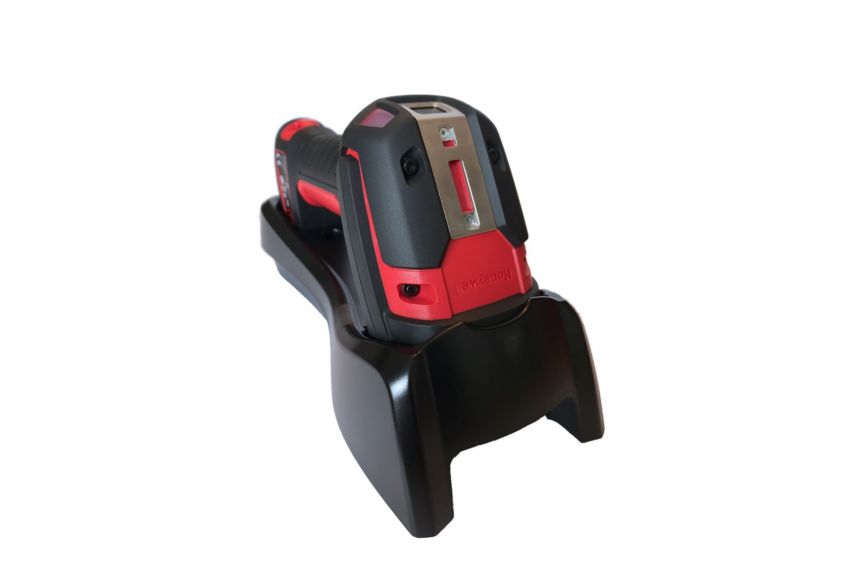

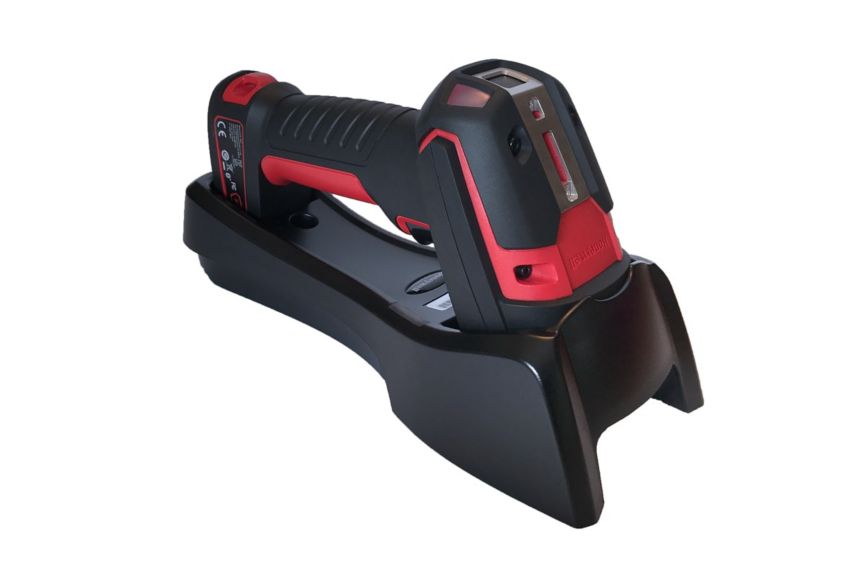

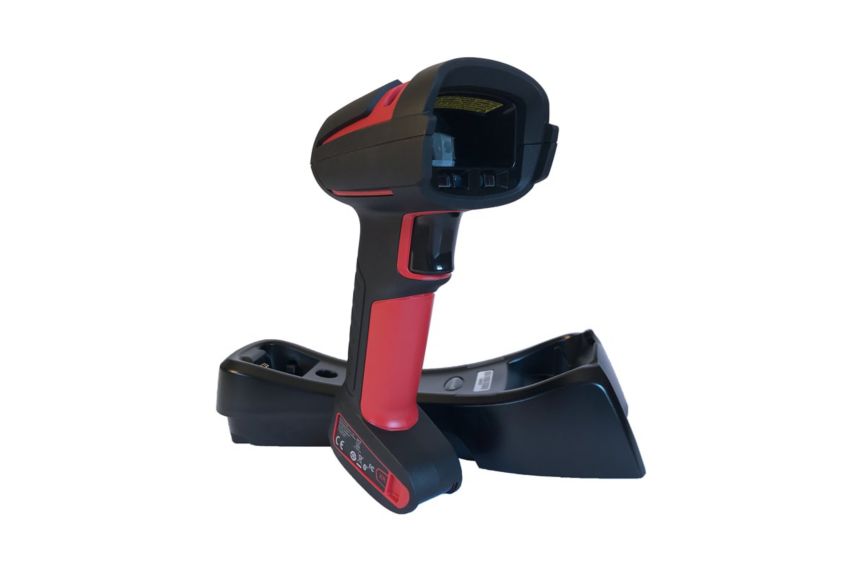

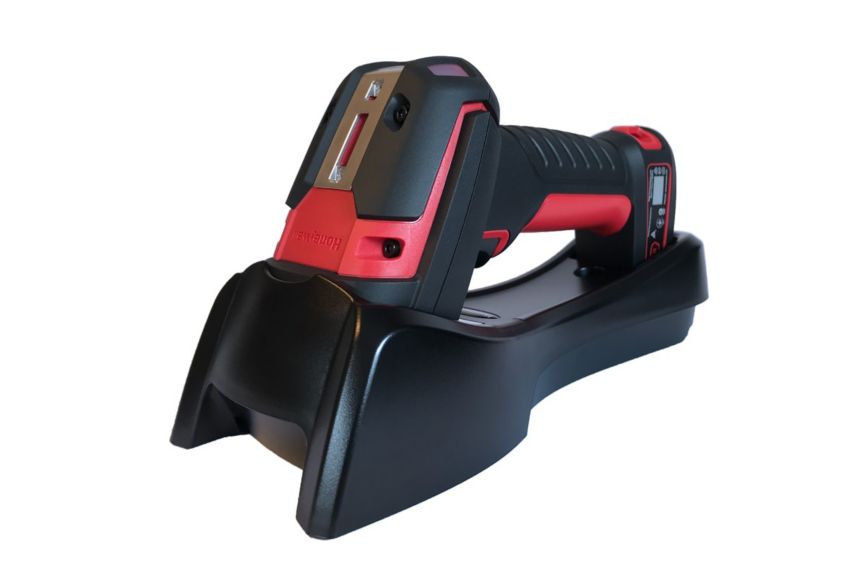

    Granit 1991iSR Ultra-Rugged Standard Range Scanner

    Granit 1991iSR Ultra-Rugged Standard Range Scanner

    Overview
    Support Where To Buy Contact Us
    Ensure maximum productivity and uptime with Granit™ 11991iSR standard range ultra-rugged barcode scanner. Engineered durability ensures low TCO. Premium scanning performance ensures even damaged or low quality codes scan quickly. Granit XP expands capabilities and redefines ultra-rugged scanning.
    • Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -20C to 50C (-4F to 122F) and IP67 sealing, Granit XP reduces service costs and increases device uptime.
    • Granit provides extreme performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit faster than ever.
    • The SR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes. For longer distances, refer to other models in the Granit family.
    • The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
    Following a legacy of successful deployments, the next generation Granit™ XP scanners expand capabilities and redefine ultra-rugged scanning. With a 10’ drop spec, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, fork trucks, and picking trucks. The 1 meter (3.3 foot) tumble test indicates long term durability with daily knocks and drops from workstation or waist height. A 7,000 tumble specification ensures Granit™ scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment.Barcodes make data entry faster and more accurate, maximizing productivity in your operations. However, damaged and low quality barcodes can make transactions slow and difficult. Bad labels commonly occur in the warehouse/DC and industrial space due to low quality printing or damage during handling. Granit XP, built on Honeywell’s next-generation imaging platform, ensures that otherwise challenging labels do not create a bottleneck in your process. The Granit™ XP 1991iSR model offer high-durability, extreme performance scanning for standard range operations. Created for applications where high speed scanning is needed to maximize productivity, and where durability is non-negotiable for low total cost of ownership, the Granit™ XP 1991iSR scanner offers the optimal solution.
    Specifications

    Dimensions

    • Overall Dimensions
      • 192 mm x 76 mm x 100 mm
      • 7.6 in x 3.0 in x 3.9 in

    Scanning Specifications

    • Print Contrast
      • 20% minimum reflectance difference
    • Skew
      • 65°
    • Scanning Range
      • Standard range (SR)
    • Pitch
      • 45°
    • Scan Pattern
      • Area Imager (1280 x 800NEWLINEpixel array)
    • Number of Scans
      • Up to 50,000 scans per charge
    • Decode Capability
      • 1D/2D
    • Motion Tolerance
      • Up to 177 in/s
      • Up to 4500 mm/s
    • Brightness
      • 0 to 100,000 lux
      • 9,290 foot-candles

    Network

    • Bluetooth
      • Yes
    • Bluetooth Specifications
      • 2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth® v4.2

    Hardware

    • Host System Interface
      • Keyboard Wedge
      • RS-232 TTL
      • USB
    • Wireless
      • Class 1: 100 m (330 ft) line of sight

    Electrical

    • Standby Power
      • 0.6 W

    Environmental

    • Storage Temperature Range
      • -40°C to 70°C
      • -40°F to 158°F
    • Operating Humidity
      • Up to 95% relative humidity, non-condensing

    Standards & Approvals

    • Drop Specifications
      • 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH
      • 3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH
      • 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
    • Tumble Specifications
      • 7,000 1 m (3.3 ft) tumbles
    • Protection Ratings
      • IP65
      • IP67

    Others

    • Operating Power
      • 5 W (1000 mA @ 5 VDC)
    • Input voltage
      • 4.0 VDC to 5.5 VDC
    • Operating temperature
      • -20°C to 50°C
      • -4°F to 122°F
    • Warranty Duration
      • Three-year factory warranty
    • Brand
      • Honeywell
    • Power Connector Type
      • Cordless

    Dimensions

    • Overall Dimensions
      • 192 mm x 76 mm x 100 mm
      • 7.6 in x 3.0 in x 3.9 in

    Scanning Specifications

    • Print Contrast
      • 20% minimum reflectance difference
    • Skew
      • 65°
    • Scanning Range
      • Standard range (SR)
    • Pitch
      • 45°
    • Scan Pattern
      • Area Imager (1280 x 800NEWLINEpixel array)
    • Number of Scans
      • Up to 50,000 scans per charge
    • Decode Capability
      • 1D/2D
    • Motion Tolerance
      • Up to 177 in/s
      • Up to 4500 mm/s
    • Brightness
      • 0 to 100,000 lux
      • 9,290 foot-candles

    Network

    • Bluetooth
      • Yes
    • Bluetooth Specifications
      • 2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth® v4.2

    Hardware

    • Host System Interface
      • Keyboard Wedge
      • RS-232 TTL
      • USB
    • Wireless
      • Class 1: 100 m (330 ft) line of sight

    Electrical

    • Standby Power
      • 0.6 W

    Environmental

    • Storage Temperature Range
      • -40°C to 70°C
      • -40°F to 158°F
    • Operating Humidity
      • Up to 95% relative humidity, non-condensing

    Standards & Approvals

    • Drop Specifications
      • 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH
      • 3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH
      • 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
    • Tumble Specifications
      • 7,000 1 m (3.3 ft) tumbles
    • Protection Ratings
      • IP65
      • IP67

    Others

    • Operating Power
      • 5 W (1000 mA @ 5 VDC)
    • Input voltage
      • 4.0 VDC to 5.5 VDC
    • Operating temperature
      • -20°C to 50°C
      • -4°F to 122°F
    • Warranty Duration
      • Three-year factory warranty
    • Brand
      • Honeywell
    • Power Connector Type
      • Cordless
    • Overall Dimensions : 192 mm x 76 mm x 100 mm|7.6 in x 3.0 in x 3.9 in
    • Print Contrast : 20% minimum reflectance difference
    • Skew : 65°
    • Scanning Range : Standard range (SR)
    • Pitch : 45°
    • Scan Pattern : Area Imager (1280 x 800NEWLINEpixel array)
    • Number of Scans : Up to 50,000 scans per charge
    • Decode Capability : 1D/2D
    • Motion Tolerance : Up to 177 in/s|Up to 4500 mm/s
    • Brightness : 0 to 100,000 lux|9,290 foot-candles
    • Bluetooth : Yes
    • Bluetooth Specifications : 2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth® v4.2
    • Host System Interface : Keyboard Wedge|RS-232 TTL|USB
    • Wireless : Class 1: 100 m (330 ft) line of sight
    • Operating Power : 5 W (1000 mA @ 5 VDC)
    • Input voltage : 4.0 VDC to 5.5 VDC
    • Standby Power : 0.6 W
    • Storage Temperature Range : -40°C to 70°C|-40°F to 158°F
    • Operating temperature : -20°C to 50°C|-4°F to 122°F
    • Operating Humidity : Up to 95% relative humidity, non-condensing
    • Drop Specifications : 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH|3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH|50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
    • Tumble Specifications : 7,000 1 m (3.3 ft) tumbles
    • Protection Ratings : IP65|IP67
    • Warranty Duration : Three-year factory warranty
    • Brand : Honeywell
    • Power Connector Type : Cordless
