    General Purpose Handheld

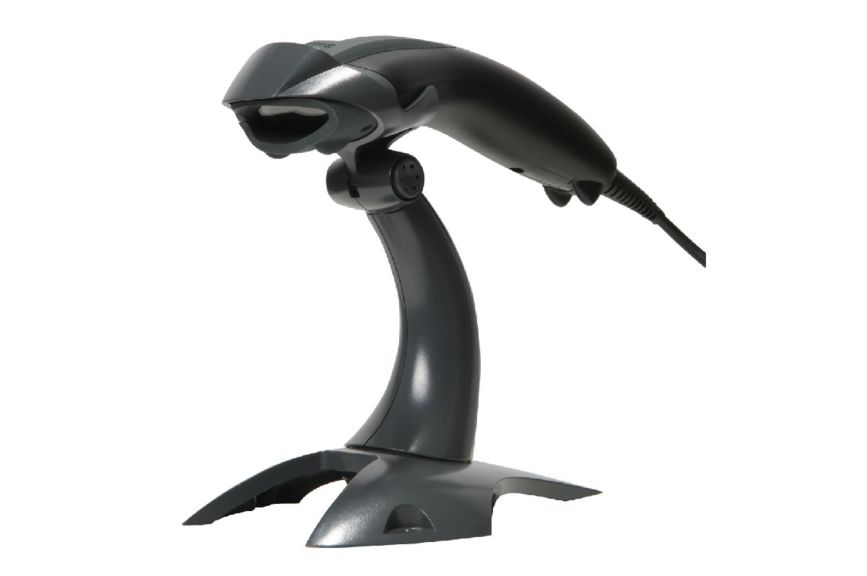

    Voyager 1200g General Duty Scanner

    Voyager 1200g General Duty Scanner

    Overview

    Voyager™: 1200g (wired) laser barcode scanners are built on the world’:s best-selling single-line laser scanner platform. They aggressively scan virtually all linear barcodes. And they do an exceptional job of reading poor quality and even damaged barcodes.

    • Superior Out-of-Box Experience: Simplifies set up with tool-free stand assembly: automatic in-stand detection and configuration: and automatic interface detection and configuration.
    • CodeGate®: Technology: Enables users to ensure that the desired bar code is scanned before transmitting data, making the scanner ideal for use in menu scanning applications.
    • Multi-Interface: Minimizes costs by delivering support for USB, keyboard wedge, and RS232 interfaces in a single scanner.
    • Class-Leading Presentation Scanning: Increases throughput by providing object detection and automatic in-stand detection and configuration.
    • Outstanding Scan Performance on Poor Quality and Damaged Bar Codes: Maintains productivity by providing a worry-free linear scanning solution that minimizes the need for manual data entry.
    • Contemporary, Ergonomic Design: Ensures operator comfort and productivity by incorporating an integrated finger groove in a sleek, lightweight industrial design that fits well in most hands.

    The Voyager 1200g (wired) barcode scanners give you able-bodied performance and flexibility for a wide variety of hands-free and handheld scanning applications. Regardless of the model you choose, these Voyager scanners deliver aggressive scan performance on virtually all linear barcodes.Decode poorly printed, smudged, faded and other difficult-to-read barcodes with ease. Scan high-density barcodes, too, with resolution down to 3.5 mil. In most cases, that eliminates the need to purchase specialty scanners. And take advantage of the Voyager scanner’:s class-leading, hands-free presentation scanning. It maximizes throughput with updated object detection and automatic in-stand detection and configuration.We designed these Voyager scanners to decrease your downtime and service costs too. Single shock-mounted PCB delivers greater impact resistance. Recessed button is protected by an integrated rubber co-mold that minimizes the impact of accidental drops. Designed with a protected, scratch-resistant glass window and an IP42-rating. And if you ever misplace a scanner, the Voyager’:s paging system uses visual and auditory signals to help you find the missing device quickly.

    Specifications

    Features

    • Features
      • CodeGate™ Technology
      • Object Detection

    Dimensions

    • Overall Dimensions
      • 3 x 7.1 x 3.8 in
      • 6.6 x 18 x 9.7 cm

    Scanning Specifications

    • Decode Capability
      • 1D
    • Brightness
      • 0 - 70000 lux
    • Scan Pattern
      • Single Scan Line
    • Skew
      • 70
    • Print Contrast
      • 10
    • Depth of Field
      • 0 - 14.4 in
    • Scanning Range
      • Standard range (SR)
    • Pitch
      • 60

    Network

    • Bluetooth
      • No
    • Bluetooth Specifications
      • N/A

    Hardware

    • Aimer Type
      • LED
    • Wireless
      • No
    • Host System Interface
      • KBW
      • RS-232
      • RS-232C
      • RS-485
      • USB
    • Engine Type
      • 1D Laser

    Electrical

    • Standby Power
      • 0.35

    Environmental

    • Operating Humidity
      • 0 - 95 %
    • Storage Temperature Range
      • - 20 - 60 °C
      • - 4 - 140 °F

    Standards & Approvals

    • Protection Ratings
      • IP42
    • Drop Specifications
      • 30 1.5 m (5 ft) drops to concrete

    Others

    • Form Factor
      • Curved
    • Input voltage
      • 5 V DC
    • Operating Power
      • 0.7 W
    • Operating temperature
      • 0 - 50 °C
      • 32 - 122 °F
    • Warranty Duration
      • 5 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Corded

    Features

    • Features
      • CodeGate™ Technology
      • Object Detection

    Dimensions

    • Overall Dimensions
      • 3 x 7.1 x 3.8 in
      • 6.6 x 18 x 9.7 cm

    Scanning Specifications

    • Decode Capability
      • 1D
    • Brightness
      • 0 - 70000 lux
    • Scan Pattern
      • Single Scan Line
    • Skew
      • 70
    • Print Contrast
      • 10
    • Depth of Field
      • 0 - 14.4 in
    • Scanning Range
      • Standard range (SR)
    • Pitch
      • 60

    Network

    • Bluetooth
      • No
    • Bluetooth Specifications
      • N/A

    Hardware

    • Aimer Type
      • LED
    • Wireless
      • No
    • Host System Interface
      • KBW
      • RS-232
      • RS-232C
      • RS-485
      • USB
    • Engine Type
      • 1D Laser

    Electrical

    • Standby Power
      • 0.35

    Environmental

    • Operating Humidity
      • 0 - 95 %
    • Storage Temperature Range
      • - 20 - 60 °C
      • - 4 - 140 °F

    Standards & Approvals

    • Protection Ratings
      • IP42
    • Drop Specifications
      • 30 1.5 m (5 ft) drops to concrete

    Others

    • Form Factor
      • Curved
    • Input voltage
      • 5 V DC
    • Operating Power
      • 0.7 W
    • Operating temperature
      • 0 - 50 °C
      • 32 - 122 °F
    • Warranty Duration
      • 5 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Corded
    • Form Factor : Curved
    • Features : CodeGate™ Technology|Object Detection
    • Overall Dimensions : 3 x 7.1 x 3.8 in|6.6 x 18 x 9.7 cm
    • Decode Capability : 1D
    • Brightness : 0 - 70000 lux
    • Scan Pattern : Single Scan Line
    • Skew : 70
    • Print Contrast : 10
    • Depth of Field : 0 - 14.4 in
    • Scanning Range : Standard range (SR)
    • Pitch : 60
    • Bluetooth : No
    • Bluetooth Specifications : N/A
    • Aimer Type : LED
    • Wireless : No
    • Host System Interface : KBW|RS-232|RS-232C|RS-485|USB
    • Engine Type : 1D Laser
    • Standby Power : 0.35
    • Input voltage : 5 V DC
    • Operating Power : 0.7 W
    • Operating Humidity : 0 - 95 %
    • Storage Temperature Range : - 20 - 60 °C|- 4 - 140 °F
    • Operating temperature : 0 - 50 °C|32 - 122 °F
    • Protection Ratings : IP42
    • Drop Specifications : 30 1.5 m (5 ft) drops to concrete
    • Warranty Duration : 5 yr
    • Brand : Honeywell
    • Power Connector Type : Corded
