CM Series 2D Imager Module

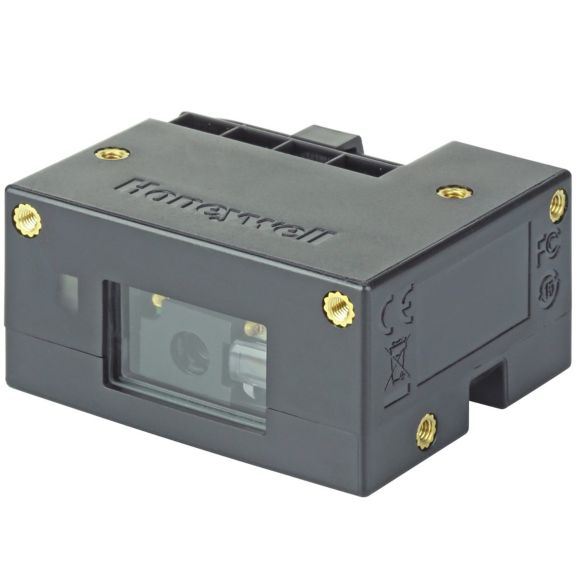

Compact. Slider bracket securely holds USB cable. 10 mounting holes. Red or white LED. Multiple optics options. Withstands extreme temperatures.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The CM Series Compact 2D Imager Module provides a self-contained 1D and 2D barcode scanning solution, whether decoding mobile phone screens or paper. It offers many differentiating features that simplify installation (e.g., cable connector compatibility and more mounting options) and enhance performance (e.g., Wide Angle and Megapixel optics options, wider choice of non-laser aimers and illumination, enhanced scan time and print contrast, and higher operating temperature range).
Its unique design simplifies installation and deployment for a wide range of kiosk applications.
Its unique design simplifies installation and deployment for a wide range of kiosk applications.
Features
- Compact size: The cable connector extends off the side of the device instead of the back, reducing depth and simplifying integration.
- Enhances durability: Slider bracket holds the customer-supplied micro-USB cable securely in place so it does not become disconnected easily.
- Simplifies integration: Ten mounting holes, all-in-one design, compact size, connector compatibility and slider bracket expedite integration.
- Enhances performance: Choice of red or white LED illumination. Select white to expedite decoding of colored barcodes and for customer-facing applications.
- Four optics options: Select the performance your application requires: Standard or Enhanced (Standard Range), or Specialized (Mega Pixel or Wide Angle).
- Withstands extreme temperatures: Industrial-grade technology allows the imager module to tolerate temperatures from -30°C to 60°C [-22°F to 140°F].
Key Applications
- Self-service, interactive kiosks and smart lockers
- Access control and check-in
- Ticket validation
- Retail point-of-sale
- Financial
- Medical diagnostic and analytical equipment
Specifications
