Amplifiers

UV-10 Series

Strain gage amplifier. ±10 Vdc three-wire output. Programmable gain settings. Wide adjustment range on the zero.

Overview

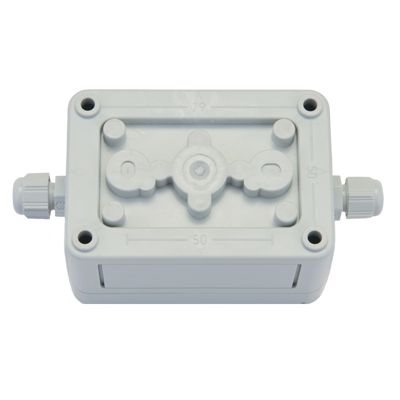

UV-10 Series primary image

The Model UV-10 amplifier supplies a highly regulated bridge excitation voltage for the transducer and converts the millivolt signal of the transducer to a ±10 Vdc signal. The Universal In-line features two selectable excitation voltages, programmable gain settings, a wide adjustment range on the zero, and a buffered solid-state shunt cal relay for quick calibration.

Features
  • Strain gage sensor amplifier
  • ±10 Vdc three-wire output
  • 3 V, 5 V, or 10 V excitation voltages @ 70 mA
  • 18 Vdc to 32 Vdc supply voltage
  • NEMA 4 housing
  • Increases signal-to-noise ratio in noisy environments
  • Effects of voltage drops in excitation sources are eliminated
  • Signals may be sent to the data systems from low impedence sources
