    Presentation Scanners

    Genesis 7580g Hands-Free Scanner

    Genesis 7580g Hands-Free Scanner

    Overview

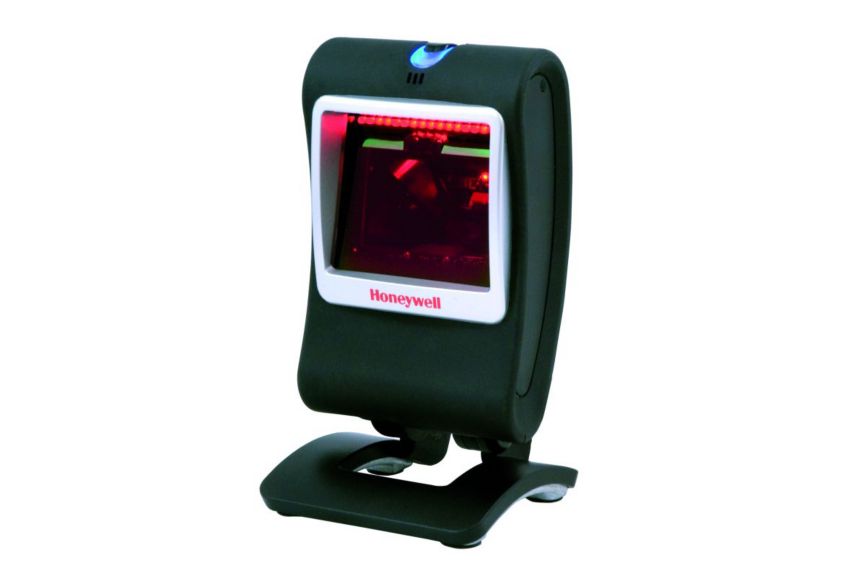

    The Genesis™: 7580g is the first presentation area-imaging scanner engineered to decode all standard 1D, PDF and 2D barcodes. Its revolutionary imaging technology is housed in an elegant, yet durable design. Powered by Adaptus™: Imaging Technology 6.0, the 7580g scanner packs breakthrough performance into a versatile form factor.

    • Remote MasterMindTM management software provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location.

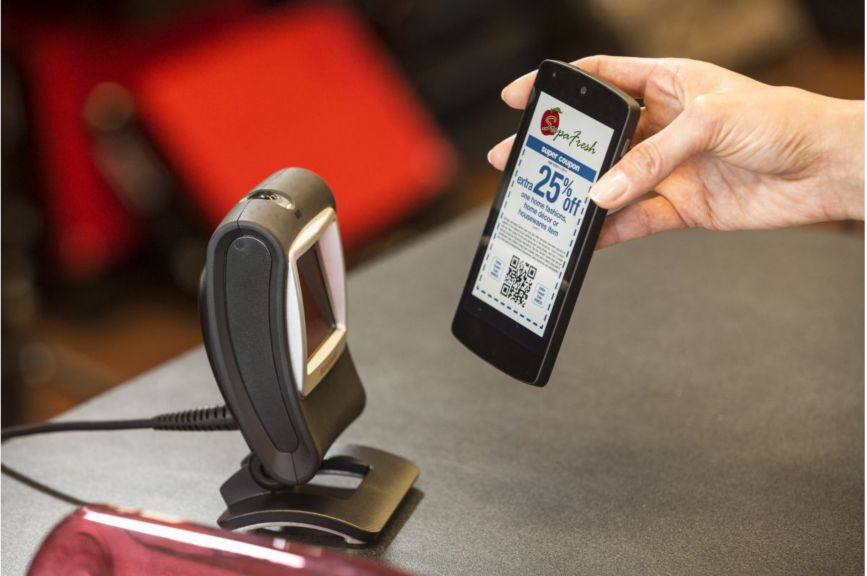

    • Excels at scanning coupons and mobile tickets directly from the screen of a mobile device.
    • Second-generation TotalFreedom plug-in development platform enables the loading and linking of multiple applications directly onto the scanner, eliminating the need for host system modifications.
    • Improves document management by capturing and storing electronic images, including coupons, personal checks, signatures, and damaged packages.
    • Flexible licensing solution allows current scanning needs to be met while protecting the option to upgrade scanning capabilities in the future by simply purchasing a license for the appropriate feature.
    • Manufacturing, healthcare, retail point-of-sale and other workflow environments often involve mixed barcode applications. If your organization is the same, and you’:d benefit from hands-free, presentation scanning, Honeywell has just the solution: the Genesis™: 7580g area-imaging scanner.Simply put, the Genesis 7580g scanner is a high achiever. It’:s the world’:s first presentation area-imaging scanner engineered to decode all standard 1D, PDF and 2D codes.Powered by Adaptus Imaging Technology 6.0, the Genesis 7580g is redefining industry standards for imaging solutions. It even gives you aggressive reading of barcodes on highly reflective surfaces like mobile phone screens.And our patented CodeGate™: technology, along with an activation button, support your menu-scanning and other targeted-scanning applications.

      Three additional patented technologies augment the Genesis 7580g scanner’:s unmatched feature set:

      • Shielded LEDs minimize the intense flashing common among other area imagers.
      • CodeSelect™: allows the device to capture up to 15 barcodes in a single flash and output data in any predetermined order.
      • TotalFreedom™: expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly into the Genesis 7580g, enabling enterprises to rapidly support proprietary or newly-developed symbologies.
    Specifications

    Features

    • Features
      • CodeSelect™
      • Mobile Phone Reading
      • Optional EAS
      • Shielded LEDs
      • TotalFreedom™ 2.0

    Dimensions

    • Overall Dimensions
      • 3.2 x 3.3 x 5.9 in
      • 8 x 8.3 x 15 cm

    Scanning Specifications

    • Motion Tolerance
      • 200 cm/s (78 in/s) for 13 mil UPC at optimal focal point
    • Scan Pattern
      • Area Image
    • Pitch
      • 70
    • Print Contrast
      • 20
    • Decode Capability
      • 1D/2D
    • Skew
      • 75
    • Scanning Range
      • Standard range (SR)
    • Maximum Brightness
      • 100,000

    Hardware

    • Engine Type
      • 2D
    • Host System Interface
      • KBW
      • RS-232
      • RS485
      • USB

    Environmental

    • Storage Temperature Range
      • - 40 - 140 °F
      • - 40 - 60 °C
    • Operating Humidity
      • 0 - 95 %

    Others

    • Form Factor
      • Counter Top
    • Standby Current
      • 100 mA
    • Input voltage
      • 5.5 V DC
    • Operating temperature
      • 0 - 40 °C
      • 32 - 104 °F
    • Warranty Duration
      • 3 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Corded

    Features

    • Features
      • CodeSelect™
      • Mobile Phone Reading
      • Optional EAS
      • Shielded LEDs
      • TotalFreedom™ 2.0

    Dimensions

    • Overall Dimensions
      • 3.2 x 3.3 x 5.9 in
      • 8 x 8.3 x 15 cm

    Scanning Specifications

    • Motion Tolerance
      • 200 cm/s (78 in/s) for 13 mil UPC at optimal focal point
    • Scan Pattern
      • Area Image
    • Pitch
      • 70
    • Print Contrast
      • 20
    • Decode Capability
      • 1D/2D
    • Skew
      • 75
    • Scanning Range
      • Standard range (SR)
    • Maximum Brightness
      • 100,000

    Hardware

    • Engine Type
      • 2D
    • Host System Interface
      • KBW
      • RS-232
      • RS485
      • USB

    Environmental

    • Storage Temperature Range
      • - 40 - 140 °F
      • - 40 - 60 °C
    • Operating Humidity
      • 0 - 95 %

    Others

    • Form Factor
      • Counter Top
    • Standby Current
      • 100 mA
    • Input voltage
      • 5.5 V DC
    • Operating temperature
      • 0 - 40 °C
      • 32 - 104 °F
    • Warranty Duration
      • 3 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Corded
    • Form Factor : Counter Top
    • Features : CodeSelect™|Mobile Phone Reading|Optional EAS|Shielded LEDs|TotalFreedom™ 2.0
    • Overall Dimensions : 3.2 x 3.3 x 5.9 in|8 x 8.3 x 15 cm
    • Motion Tolerance : 200 cm/s (78 in/s) for 13 mil UPC at optimal focal point
    • Scan Pattern : Area Image
    • Pitch : 70
    • Print Contrast : 20
    • Decode Capability : 1D/2D
    • Skew : 75
    • Scanning Range : Standard range (SR)
    • Maximum Brightness : 100,000
    • Engine Type : 2D
    • Host System Interface : KBW|RS-232|RS485|USB
    • Standby Current : 100 mA
    • Input voltage : 5.5 V DC
    • Storage Temperature Range : - 40 - 140 °F|- 40 - 60 °C
    • Operating temperature : 0 - 40 °C|32 - 104 °F
    • Operating Humidity : 0 - 95 %
    • Warranty Duration : 3 yr
    • Brand : Honeywell
    • Power Connector Type : Corded
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Genesis 7580g Hands Free Scanner Data Sheet
    application/pdf 517.67 KB
    7/14/2021
    517.67 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Genesis 7580 Wall Mount Installation Guide - English
    application/pdf 248.79 KB
    7/14/2021
    248.79 KB
    Linux Keyboard Layouts for Honeywell scanners (KBDCTY-L-EN-AD-01 Rev C)
    application/pdf 197.41 KB
    4/10/2023
    197.41 KB
    Genesis 7580g Quick Start Guide - English
    application/pdf 792.01 KB
    7/14/2021
    792.01 KB
    User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
    application/pdf 1.16 MB
    11/17/2023
    1.16 MB
    Genesis 7580g User's Guide - English (P/N 7580-UG REV D)
    application/pdf 3.65 MB
    7/14/2021
    3.65 MB
    EasyDL Integration Guide - English
    application/pdf 272.66 KB
    7/14/2021
    272.66 KB
    Regulatory Information
    Name
    Description
    File Size
    Date
    Size
    Genesis 7580g Regulatory Sheet (RegSht-7580-01 Rev C)
    application/pdf 1.01 MB
    11/2/2021
    1.01 MB
    Name
    Description
    File Size
    Date
    Size
    Genesis 7580 Wall Mount Installation Guide - English
    application/pdf 248.79 KB
    7/14/2021
    248.79 KB
    Genesis 7580g Regulatory Sheet (RegSht-7580-01 Rev C)
    application/pdf 1.01 MB
    11/2/2021
    1.01 MB
    Linux Keyboard Layouts for Honeywell scanners (KBDCTY-L-EN-AD-01 Rev C)
    application/pdf 197.41 KB
    4/10/2023
    197.41 KB
    Genesis 7580g Quick Start Guide - English
    application/pdf 792.01 KB
    7/14/2021
    792.01 KB
    User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
    application/pdf 1.16 MB
    11/17/2023
    1.16 MB
    Genesis 7580g User's Guide - English (P/N 7580-UG REV D)
    application/pdf 3.65 MB
    7/14/2021
    3.65 MB
    EasyDL Integration Guide - English
    application/pdf 272.66 KB
    7/14/2021
    272.66 KB
    Genesis 7580g Hands Free Scanner Data Sheet
    application/pdf 517.67 KB
    7/14/2021
    517.67 KB
    Name
    Description
    File Size
    Date
    Size
    Genesis 7580g Hands Free Scanner Data Sheet
    517.67 KB
    7/14/2021
    Genesis 7580 Wall Mount Installation Guide - English
    248.79 KB
    7/14/2021
    Linux Keyboard Layouts for Honeywell scanners (KBDCTY-L-EN-AD-01 Rev C)
    197.41 KB
    4/10/2023
    Genesis 7580g Quick Start Guide - English
    792.01 KB
    7/14/2021
    User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
    1.16 MB
    11/17/2023
    Genesis 7580g User's Guide - English (P/N 7580-UG REV D)
    3.65 MB
    7/14/2021
    EasyDL Integration Guide - English
    272.66 KB
    7/14/2021
    Genesis 7580g Regulatory Sheet (RegSht-7580-01 Rev C)
    1.01 MB
    11/2/2021
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    46-00911-R
    Power Supply: UK plug, 1.0A @ 5.2VDC, 90-255VAC @ 50-60Hz
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7580g-barcode-scanner
    46-00911-R
    Power Supply: UK plug, 1.0A @ 5.2VDC, 90-255VAC @ 50-60Hz
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7580g-barcode-scanner
    46-00913
    Mount: Wall mount adaptor kit
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7580g-barcode-scanner
    46-00913
    Mount: Wall mount adaptor kit
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7580g-barcode-scanner
    CBL-500-300-S00-05
    Cable: USB, black, Type A, 3m (9.8´), straight, 5V host power, wo ferrite
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cables-and-power-supplies
    CBL-500-300-S00-05
    Cable: USB, black, Type A, 3m (9.8´), straight, 5V host power, wo ferrite
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cables-and-power-supplies
    SVC7580-EXW1R
    7580G, EXTENDED WARRANTY,1YR RENEW OR PS
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7580g-barcode-scanner
    SVC7580-EXW1R
    7580G, EXTENDED WARRANTY,1YR RENEW OR PS
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7580g-barcode-scanner
