    Central Components

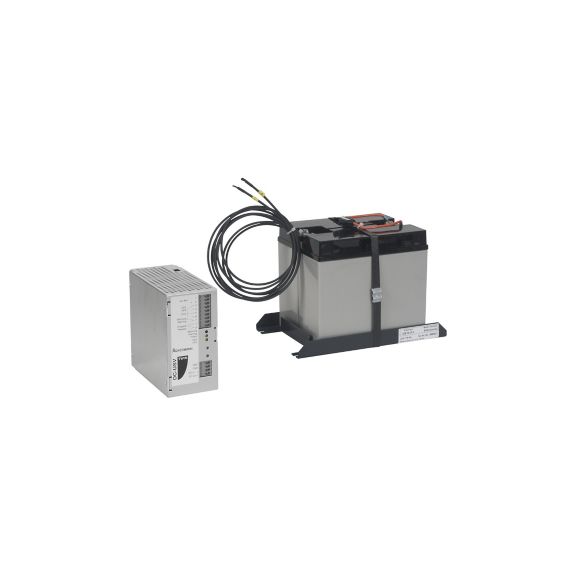

    UPS module 24 V DC (5 A) for 5 A power supply unit

    Overview
    Specifications

    Others

    • Bridging time
      • 60 min (for 80 % load @ 20 °C)
    • Ambient Temperature
      • 0 °C ... 50 °C
    • Weight (kg)
      • approx. 0,4 kg (UPS module) kilogram
    • Battery capacity
      • 7 Ah
    • Mounting
      • terminal for top-hat rail assembly (UPS module)
      • wall mounting (battery)
    • Dimensions
      • W: 47 mm H: 138 mm D: 115 mm (UPS module)
      • W:160 mm H: 180 mm D: 110 mm (battery)
    • Type of protection
      • IP 20
    • Output Voltage
      • 19,5 V DC ... 26,5 V DC
    • Input voltage
      • 22.5 ... 30 V DC voltage alternating current

    Others

    • Bridging time
      • 60 min (for 80 % load @ 20 °C)
    • Ambient Temperature
      • 0 °C ... 50 °C
    • Weight (kg)
      • approx. 0,4 kg (UPS module) kilogram
    • Battery capacity
      • 7 Ah
    • Mounting
      • terminal for top-hat rail assembly (UPS module)
      • wall mounting (battery)
    • Dimensions
      • W: 47 mm H: 138 mm D: 115 mm (UPS module)
      • W:160 mm H: 180 mm D: 110 mm (battery)
    • Type of protection
      • IP 20
    • Output Voltage
      • 19,5 V DC ... 26,5 V DC
    • Input voltage
      • 22.5 ... 30 V DC voltage alternating current
    • Bridging time : 60 min (for 80 % load @ 20 °C)
    • Ambient Temperature : 0 °C ... 50 °C
    • Weight (kg) : approx. 0,4 kg (UPS module) kilogram
    • Battery capacity : 7 Ah
    • Mounting : terminal for top-hat rail assembly (UPS module)|wall mounting (battery)
    • Dimensions : W: 47 mm H: 138 mm D: 115 mm (UPS module)|W:160 mm H: 180 mm D: 110 mm (battery)
    • Type of protection : IP 20
    • Output Voltage : 19,5 V DC ... 26,5 V DC
    • Input voltage : 22.5 ... 30 V DC voltage alternating current
