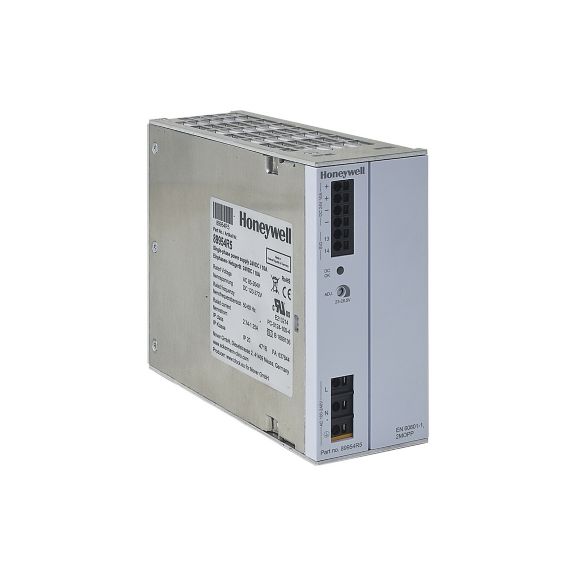

Single-phase power supply unit 24 V DC (10 A)
Single-phase power supply unit (10 A) for the constant DC power supply of the call system in accordance with DIN VDE 0834-1: 2016-06, fulfilment of EN60601-1, 2xMOPP.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Part Number: 89954R5
Single-phase power supply unit (10 A) for the constant DC power supply of the call system in accordance with DIN VDE 0834-1: 2016-06, fulfilment of EN60601-1, 2xMOPP. UL/CSA 60601-1 (E213214) certified. Very compact design due to fully-integrated primary-clocked switching technology. Parallel-switchable and series-switchable for flexible power supply of the call system and its components. Voltage range adjustable, for adaptation to local requirements. DC-OK-Signal (LED/relay) for further interference processing in accordance with DIN VDE 0834-1: 2016-06. Fitted with push-in connectors for simple wiring (max. 2.5 mm2). Suitable for top-hat rail mounting in the sub-distribution.
Features
Connectors output:
- Push-In, max 2.5 mm2
- earth leakage current:
Signalling DC-OK:
- Uout > 21,5 V DC (LED)
- Uout > 21,5 V (typ.) max. 30 V/1A (relay)
Recommended circuit breaker:
- 10 A (characteristic B/C)
Switch-on current limitation:
- < 30 A, NTC
Additional information
IEC 60364-4-41 (DIN VDE 0100-410).
SELV: EN 60601-1, 2xMOPP.
EN 61558-1 /-2-16, EN 60950-1.
AAMI/ANSI ES 60601-1: 2005.
CSA C22.2 No. 60601-1 (2008).
EMC: EN 61204-3.
IEC 60601-1-2.
CE: in accordance with 2014/30/EU and 2014/35/EU.
UL: UL/CSA 60601-1 (E213214).
Operating Characteristics
- Ambient Temperature
- -25 to 70°C
- Storage Temperature
- -40 to 85°C
Dimensions & Weight
- Weight (kg)
- 1
- Dimensions
- W: 55 mm H: 127 mm D: 171 mm
Electrical Specifications
- Rated voltage (V AC)
- 230
- Rated current (A)
- 1.24
- Output current
- 10 A at 24 V (Continuous Load)
- Output Voltage
- 23 to 28.5 VDC
Technical Specifications
- Rated frequency
- 50 Hz
- Mounting
- Top-Hat Rail Mounting
Features
- Features & Benefits
- Earth Leakage Current: Uout > 21.5 VDC (LED), Uout > 21.5 V (typ.) Max. 30 V/1 A (Relay), 10 A (Characteristic B/C), < 30 A, NTC
- Max 2.5 mm²
- Push-In
Overview
- Brand
- Honeywell
Applications & Compatibility
- Application
- Constant DC Power Supply of the Call System
Others
- Industry
- Healthcare
Operating Characteristics
- Ambient Temperature
- -25 to 70°C
- Storage Temperature
- -40 to 85°C
Dimensions & Weight
- Weight (kg)
- 1
- Dimensions
- W: 55 mm H: 127 mm D: 171 mm
Electrical Specifications
- Rated voltage (V AC)
- 230
- Rated current (A)
- 1.24
- Output current
- 10 A at 24 V (Continuous Load)
- Output Voltage
- 23 to 28.5 VDC
Technical Specifications
- Rated frequency
- 50 Hz
- Mounting
- Top-Hat Rail Mounting
Features
- Features & Benefits
- Earth Leakage Current: Uout > 21.5 VDC (LED), Uout > 21.5 V (typ.) Max. 30 V/1 A (Relay), 10 A (Characteristic B/C), < 30 A, NTC
- Max 2.5 mm²
- Push-In
Overview
- Brand
- Honeywell
Applications & Compatibility
- Application
- Constant DC Power Supply of the Call System
Others
- Industry
- Healthcare
- Ambient Temperature : -25 to 70°C
- Weight (kg) : 1
- Storage Temperature : -40 to 85°C
- Rated voltage (V AC) : 230
- Rated frequency : 50 Hz
- Rated current (A) : 1.24
- Output current : 10 A at 24 V (Continuous Load)
- Output Voltage : 23 to 28.5 VDC
- Mounting : Top-Hat Rail Mounting
- Industry : Healthcare
- Features & Benefits : Earth Leakage Current: Uout > 21.5 VDC (LED), Uout > 21.5 V (typ.) Max. 30 V/1 A (Relay), 10 A (Characteristic B/C), < 30 A, NTC|Max 2.5 mm²|Push-In
- Dimensions : W: 55 mm H: 127 mm D: 171 mm
- Brand : Honeywell
- Application : Constant DC Power Supply of the Call System
